O-So Pure # DWS-UV9BB Germicidal Replacement UV Bulb

UVC Sterilization Bulb for O-So Pure Pathogen Predator part # DWS-UV9BB.

The O-So Pure DWS-UV9BB Replacement UVC Light Bulb is 100 % compatible to O-So Pure Pathogen Predator. The replacement UV Lamp is built to provide high UV output and longer service life.

The replacement lamp work to cure or dry coatings in graphics and signs. The quartz glass plate on the curing lamp protects the lamp from debris and works as a filter between the curing system and lamp. The plate also prevents dirt, grit and contaminants from building up on the lamp.

Made in the USA, the UV printer lamp bulb provides a predictable lifespan and helps in drying coatings of inks in signs and graphics. CureUV provides UV lamp for printers in different arc length and spectral fills. Curing bulbs do not release volatile organic compounds in air which makes them an extremely eco-friendly alternative than curing with the help of heat. The usage of light instead of heat enables the ink to harden and dry instantly.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 18.22 inches (463mm)
• Arc Length: 15.15 inches (385mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 23 Watts
• Output UVC Watts: 8 Watts
• Output uW/cm^2 @ 1m: 78
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 Pin Single End
• Base Material: Ceramic

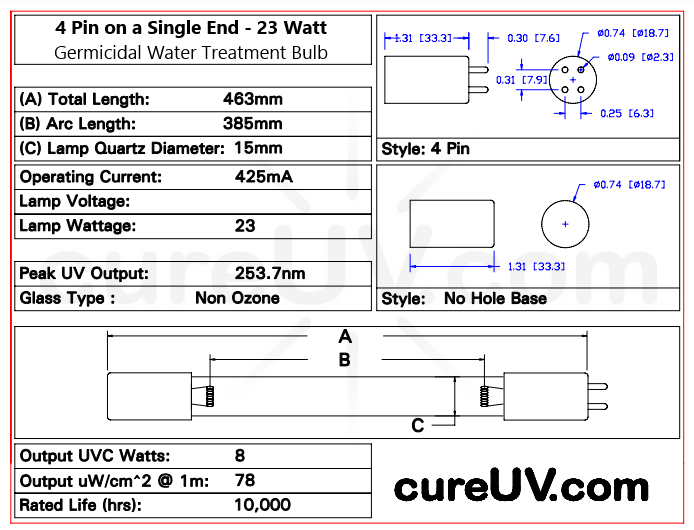

Drawing of Replacement UVC Bulb


Spectral Output of Germicidal UVC Light Bulbs (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
