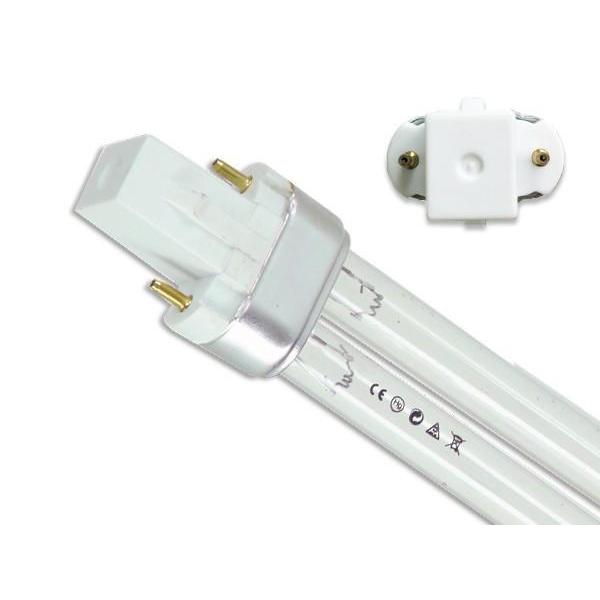

General Electric GBX9/UVC Replacement UVC Light Bulb

2 Pin G23 on a Single End - 9 Watt Germicidal Air, Surface & Water Treatment Bulb

CureUV’s General Electric GBX9/UVC Replacement UVC Light Bulb has a total length of 7.40" and a lamp voltage of 60V. With an arc length of 4.53", the replacement light bulb has two pin G23 on a single end and has ceramic as its base material. The bulb has a rated life of 10,000 hours after which we recommend that you replace the bulb for efficient results. The air, water and surface treatment bulb is a 9 watt germicidal bulb that kills microorganisms present in water. The light bulb emits a wavelength of 253.7nm that acts on the DNA of the microorganisms and renders them harmless. The UVC light bulb works well for germicidal OEM water filters, UV purifiers, and UV sanitizers. Research states that UVC light technology is effective against bacteria, molds, viruses, yeast and protozoa.

It does not alter the pH, chemistry or taste of water. The UVC purification method is both economic and environmental friendly and is a much better option to chemicals and their bi-products. It helps in providing a safe solution against microorganisms such as giardia and cryptosporidium, which are resistant to chlorine disinfection.

The UVC bulb is a compatible replacement for the following part numbers:

General Electric Part Number:

• GBX9/UVC

General Electric System Model:

• GE 15877
• GE 40696

Technical Specifications:

• Total Length: 7.40 inches (188mm)
• Arc Length: 4.53 inches (115mm)
• Lamp Quartz Diameter: 12mm Twin Tube
• Operating Current: 17mA
• Lamp Voltage: 60V
• Lamp Wattage: 9 Watts
• Output UVC Watts: 2.3 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 2 pin G23 on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

Drawing of Replacement UVC Bulb Item # 194670 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell General Electric brand UVC bulbs. All General Electric brand names, trademarks, and logos are property of General Electric.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
