260x160mm UV LED Curing Conveyor with adjustable Chain Belt
260x160mm UV LED Curing Conveyor with adjustable Chain Belt
SKU:511003-365
Couldn't load pickup availability
The 260x160mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.
Features:
- LED array ensures you find the ideal wavelength for the material at hand.
- No preheating time needed.
- Extra durable chain belt adjusts to the size of the product being cured.
- The integrated air-cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life.
- UV LED cold light source ensures your materials composition won’t be harmed during curing process.
- User friendly and quick to use.
260x160mm UV LED Curing Conveyor with adjustable Chain Belt

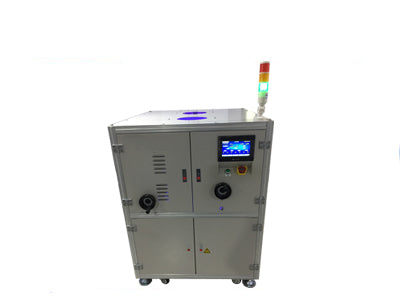

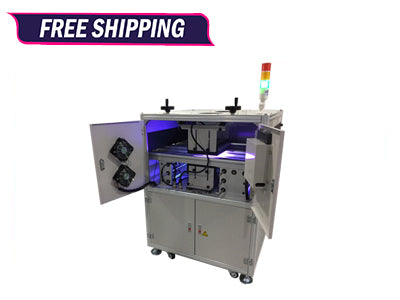

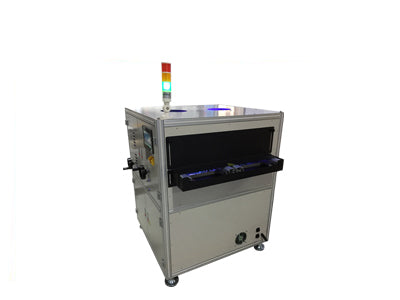

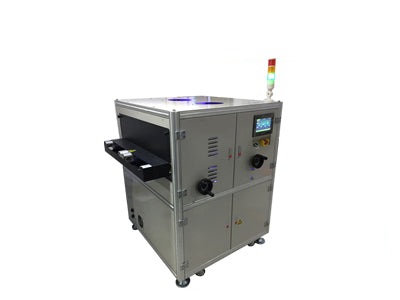

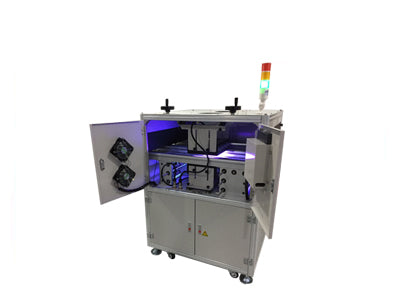

This UV conformal coating curing design consists of a control system, High-Intensity UV LED Irradiation head and a chain conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 260x160mm.
Its two stainless steel chain belt design allows the user to manually adjust the size of the product fixture, fitting with all sizes.
This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.
Technical Specifications:
Dimensions: L47.51in.*W37.49in.*H58.55in
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
365nm:
- Electric power: 1782W
- Optic power: 2000mW/cm²
- Curing area: 260x160mm
- Cooling method: Air cooling
395nm:
- Electric power: 1782W
- Optic power: 4000mW/cm²
- Curing area: 260x160mm
- Cooling method: Air cooling
All systems can be customized according to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing process. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
