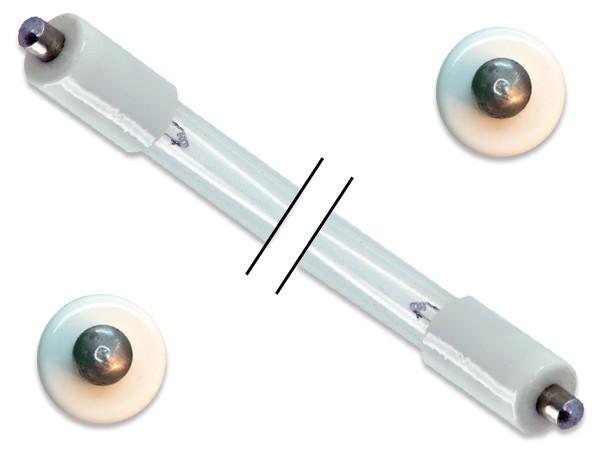

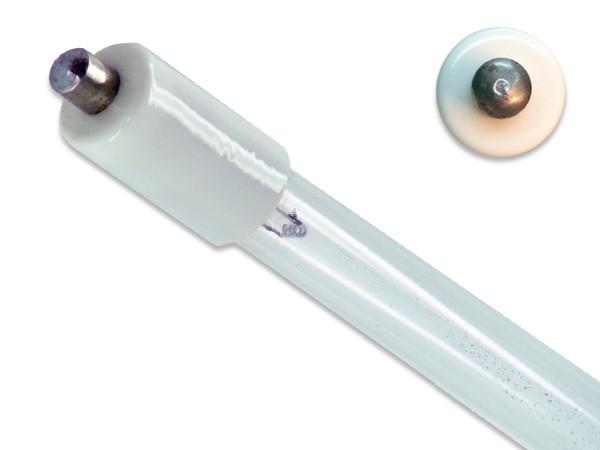

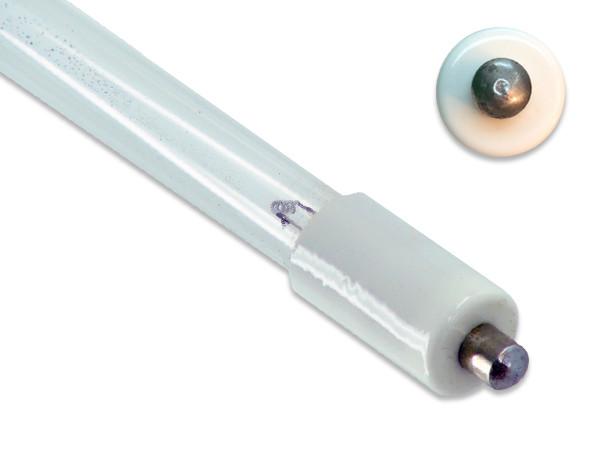

Atlantic Ultraviolet Authentic Replacement 05-1334-R UVC Light Bulb

Single Pin Double Ended - 60 Watt Germicidal Water Treatment Bulb

The Atlantic Ultraviolet 05-1334-R Authentic Replacement UVC Light Bulb is a single-pin double-ended germicidal water treatment bulb that has a total length of 45.08" and an arc length of 42.13". The germicidal water treatment bulb works well with the following models and part numbers:

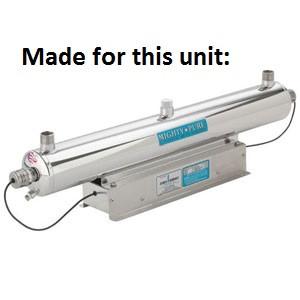

Mighty-Pure

• MP49
• MP49B
• MP49C

Sanitron

• S50
• S50B
• S50C

The UV light bulb works well with germicidal OEM water, filters, UV purifiers, and sanitizers. The lamp is thoroughly tested and has 10,000 hours of UV output. The UV lamp has a total length of 45.08" and a peak output of 253.7 nm. The lamp emits energy that photo-chemically reacts with the genetics of the microorganisms rendering them incapable of reproducing. Studies show that UV water purification has the ability to destroy 99.9% of waterborne microorganisms.

This method of water purification does not alter the pH, taste, or chemistry of water and works better than chlorination. With UVC light technology, you can effectively destroy pathogens such as bacteria, viruses, molds, and yeasts.

Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.

Technical Specifications:

• Total Length: 45.08 inches (1145mm)
• Arc Length: 42.13 inches (1070mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 465mA
• Lamp Voltage: 132V
• Lamp Wattage: 60 Watts
• Output UVC Watts: 22 Watts
• Output uW/cm^2 @ 1m: 180
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone
• Base Style: Single pin double ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications:

• Aquaculture
• Beverage Services and Processing
• Drinking-Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

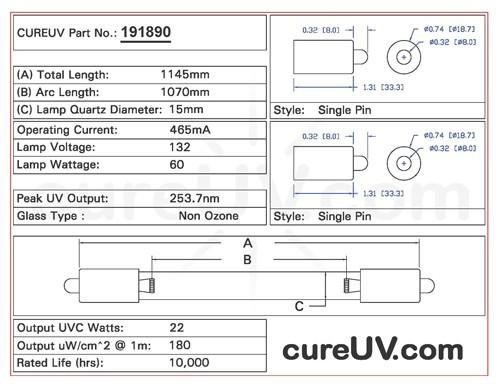

Drawing of Replacement UVC Bulb Item # 191890

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
