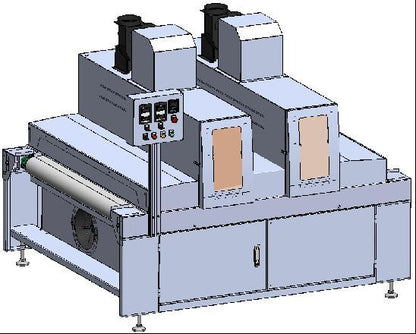

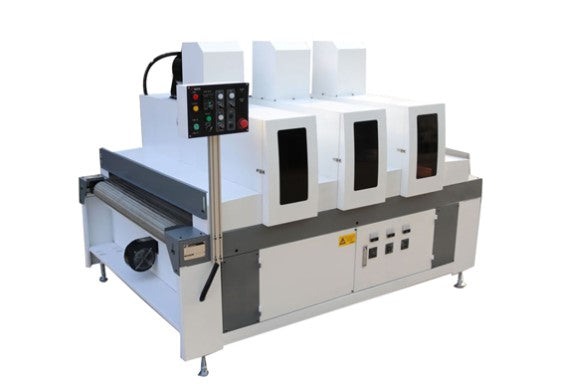

CureUV UV Curing Conveyor – Available with 1, 2, 3, 4, or 5 Lamps

Our CureUV UV Curing Conveyor is specifically designed to work with Roll and Curtain Coaters to cure coatings quickly and efficiently. This versatile system can be configured with Single, Double, Three, Four, or Five UV lamps, adapting to your production needs. It’s available in two working widths: 600 mm (24 inches) or 1300 mm (51.2 inches), providing flexibility for different manufacturing setups.

This UV curing conveyor is designed to output over 300 watts per inch (WPI) from its high-performance light sources. Each UV lamp has its own high-output blower to maintain optimal temperature and extend lamp life. The chamber's entry and exit points are carefully engineered to minimize UV light leakage, ensuring a safe working environment.

Features and Benefits

• UV Curing System:
  • Lamp Configuration: Available in Single, Double, Three, Four, or Five lamp setups for top and underside curing, ensuring complete, even curing performance.

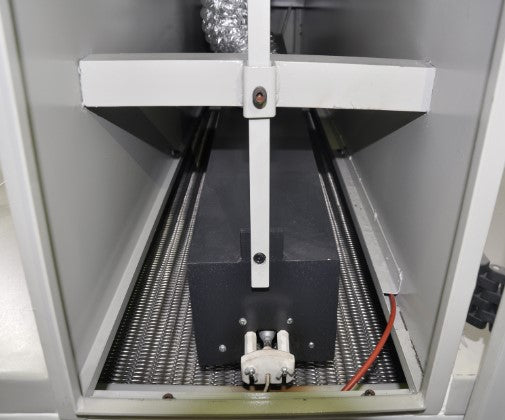

  • UV Light Source System: Includes irradiator assembly, mercury bulbs, and an electronic power supply system. Each lamp has an independent centrifugal fan for optimal cooling, maximizing the lifespan of bulbs and electronic components.
• Robust Steel Structure: Constructed from high-strength square tubes (50x150 series) and 3T cold plate, ensuring long-term durability and stability.
• Efficient Transporting System:
  • Side Board: Includes UV-resistant visors at the entry and exit to prevent UV radiation leakage.

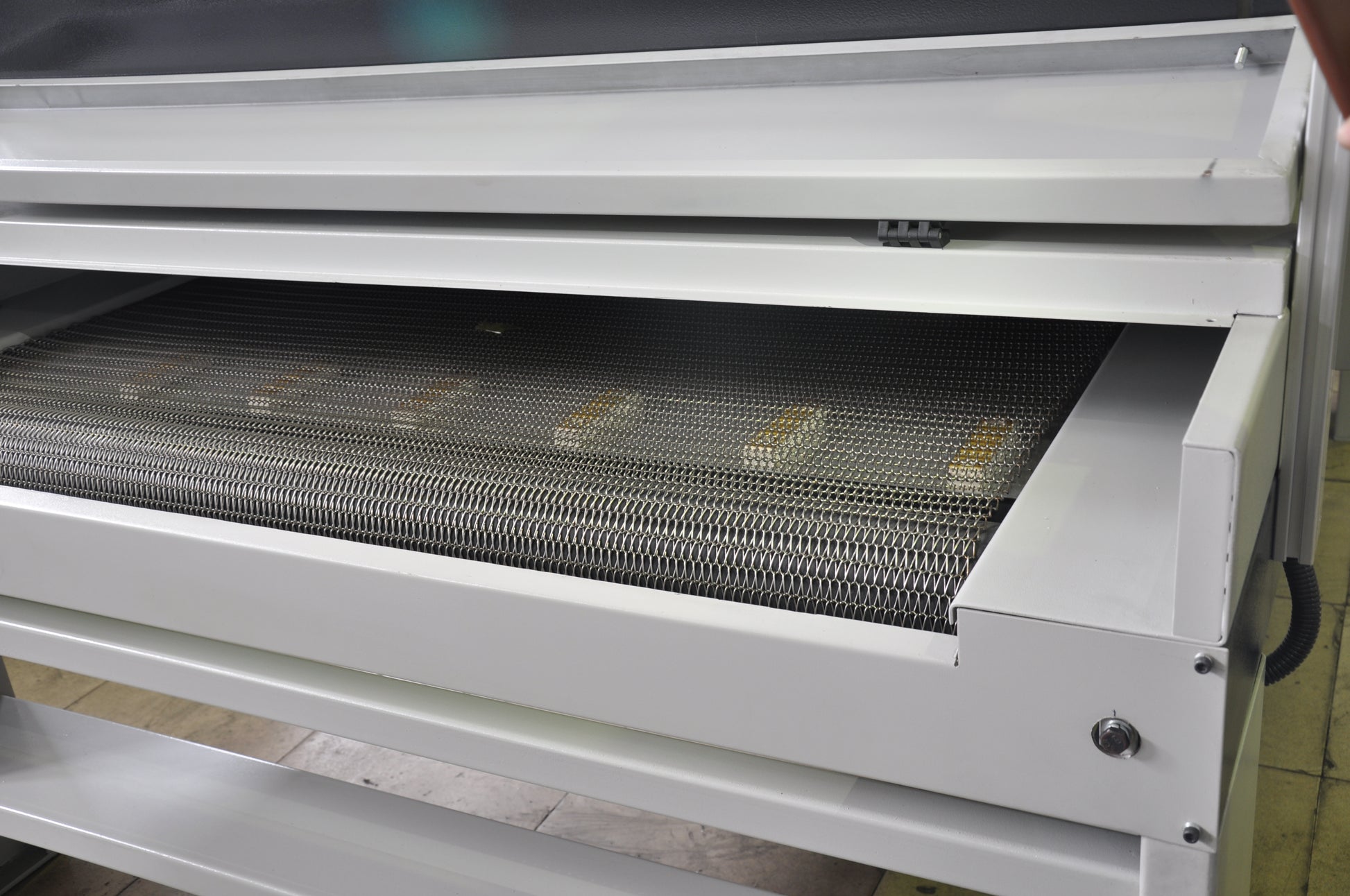

  • Conveyor Belt: Made from stainless steel mesh, ensuring resistance to UV exposure and durability.
  • Drive System: Equipped with an aluminum geared motor with variable frequency speed control for precise, adjustable operation.
• Advanced Electrical Components:

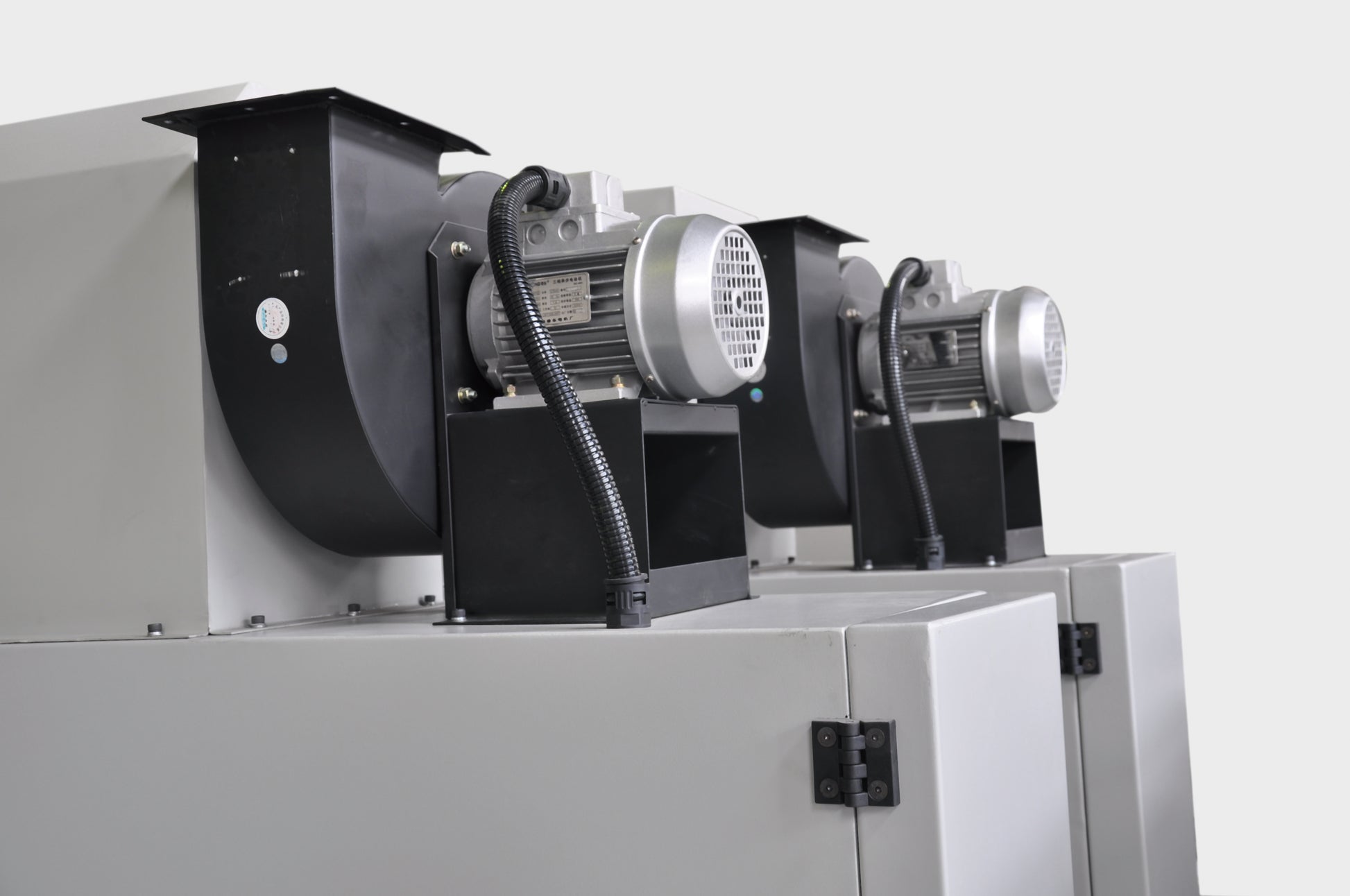

  • Cooling System: Features SEOK brand centrifugal fans for efficient cooling.
  • Control Cabinet: Integrated electric control cabinet allows easy maintenance and reliable operation.

Note: We can customize these systems to fit your needs exactly. Whether you need more power or a wider UV Curing Conveyor, we would love to help you with your system.

Technical Specifications:

• Model 600 - 24 Inches (600mm)
  • Working Width: 600 mm (23.62 inches)
  • Feeding Speed: 0-20 m/min
  • Lamp Power: 6kW*3
  • Feeding Power: 0.4 kW
  • Workpiece Thickness: 3-80 mm
  • Minimum Length: 300mm
  • Dimensions (L*W*H): 2500mm*1450mm*1600mm
  • UV Lamps: 6KW * 778mm * 2PCS
  • Weight: 2645 lbs

• Model 1300 - 51 Inches (1300mm)
  • Working Width: 1300 mm (51.2 inches)
  • Feeding Speed: 0-20 m/min
  • Lamp Power: 9.7kW*3
  • Feeding Power: 0.75 kW
  • Workpiece Thickness: 3-80 mm
  • Minimum Length: 300mm
  • Dimensions (L*W*H): 2500mm*2150mm*1600mm
  • UV Lamps: 13KW*1490mm*3
  • Weight: 3968 lbs

We can customize these systems to fit your needs exactly. Whether you need more power or a wider UV Curing Conveyor, we would love to help you with your system. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
