200x150mm Desktop UV LED Curing Conveyor
200x150mm Desktop UV LED Curing Conveyor
SKU:511019-365
Couldn't load pickup availability
The 200x150mm Desktop UV LED Curing Conveyor System is a High-Intensity Curing System designed for benchtops and temporal working stations, available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.
Features:
- Reduced size makes it easy to transport and locate, making it ideal for desktops and temporary working stations/areas
- LED array ensures you find the ideal wavelength for the material at hand
- No preheating time needed
- The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
- UV LED cold light source ensures your material's composition won’t be harmed during curing process
- Extra durable conveyor belt speed is completely adjustable
- User friendly and quick to use
200x150mm Desktop UV LED Curing Conveyor

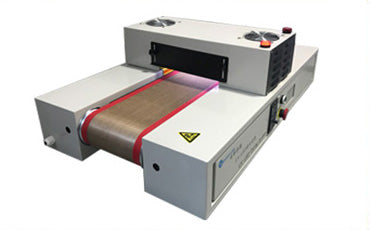

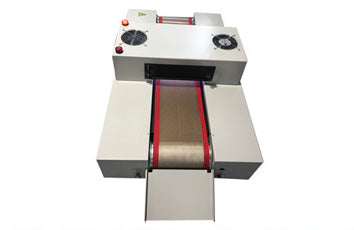

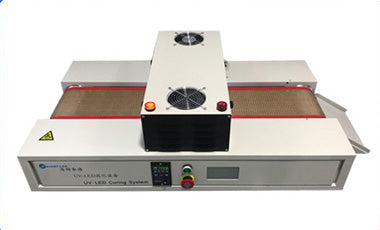

This Desktop UV Curing System is designed to use in rotary or temporary working stations, its fit design allows the user to easily set it up on desks and working tables. This curing machine consists of a control system, High-Intensity UV LED Irradiation head and a conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 200x150mm.
This versatile Desktop UV LED Conveyor also supports external signal input and triggering which makes it suitable for automatic or semi-automatic production lines.
The array of wavelengths offered ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.
Technical Specifications:
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
365nm*:
- Electric power: 420W
- Optic power: 1000mW/cm²
- Curing area: 200x150mm
- Cooling method: air cooling
- Dimension: L1000mm*W580mm*H300mm
395nm*:
- Electric power: 420W
- Optic power: 2000mW/cm²
- Curing area: 200x150mm
- Cooling method: air cooling
- Dimension: L1000mm*W580mm*H300mm
*Technical Specifications available at the moment apply to the specified wavelengths.
Technical Drawing:
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
