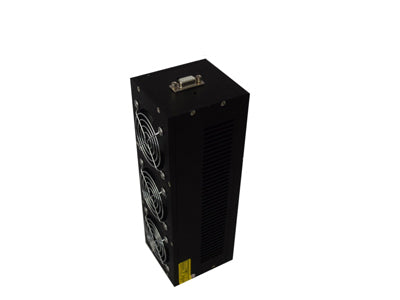

200x20mm UV LED Array with Forced Air Cooling
200x20mm UV LED Array with Forced Air Cooling
SKU:511101-365
Couldn't load pickup availability
The 200x20mm UV LED Array with Forced Air Cooling is a compact system designed for UV printing. It includes a controller and UV LED Irradiation head with selectable wavelengths (365nm, 385nm, 395nm, and 405nm). Featuring efficient Forced Air Cooling, it operates effectively on conveyors with a 200x20mm curing area.
Features:
- The integrated air cooling system ensures your LED Array works as efficiently as possible, protecting the LED system and extending its useful life
- UV LED cold light source ensures your material's composition won’t be harmed during curing process
- No preheating time needed, reach maximum light intensity instantly
- Power efficient and easy to install, use and control
- Eco-friendly, produces no ozone or mercury
- Lampshade protection makes it safer for workers
- Supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines
Technical Specifications
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
365nm*:
- Optic Power: 4500W/cm²
- Effective Curing Area: 200x20mm
-
Electric Power: 528W
- Input Voltage: 220VAC 50Hz
- Cooling Method: Fan Cooling
395nm*:
- Optic Power: 9000W/cm²
- Effective Curing Area: 200x20mm
-
Electric Power: 528W
- Input Voltage: 220VAC 50Hz
- Cooling Method: Fan Cooling
*Technical Specifications available at the moment apply to the specified wavelengths.
| Channel | One (1) | |
| The size of controller | L 380 x W 280 x H 90mm | |
| Terminal I/O | Input | Pedal Switch & Serial RS-232 communication signal |
| Output | Serial RS-232 communication signal | |
| Cooling method of controller | Air Cooling | |
| Power Supply Voltage | AC100 ~ 240V ± 10% (50/60HZ) | |
| Power Consumed | 20W | |
| Ambient Temperature and Humidity | Ambient Temperature: -40°C -80°C | |
| Relative Humidity: 25% - 85% RH | ||
| Timing / Exposure Control | Digital Debugging, Manual Exposure Control, Foot Control, or Timing Control (0.1 ~ 999.95) | |
| External Control | External Input | Enter irradiation, irradiation stop input, interlocking. All lights illuminate input, Query switch |
| External Input | READY Signal, ERROR Signal, WARNING Output, BUSY Output, + 5V Output (Indicator) | |
We can customize these systems to fit your needs exactly. We would love to help you with your UV LED curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
