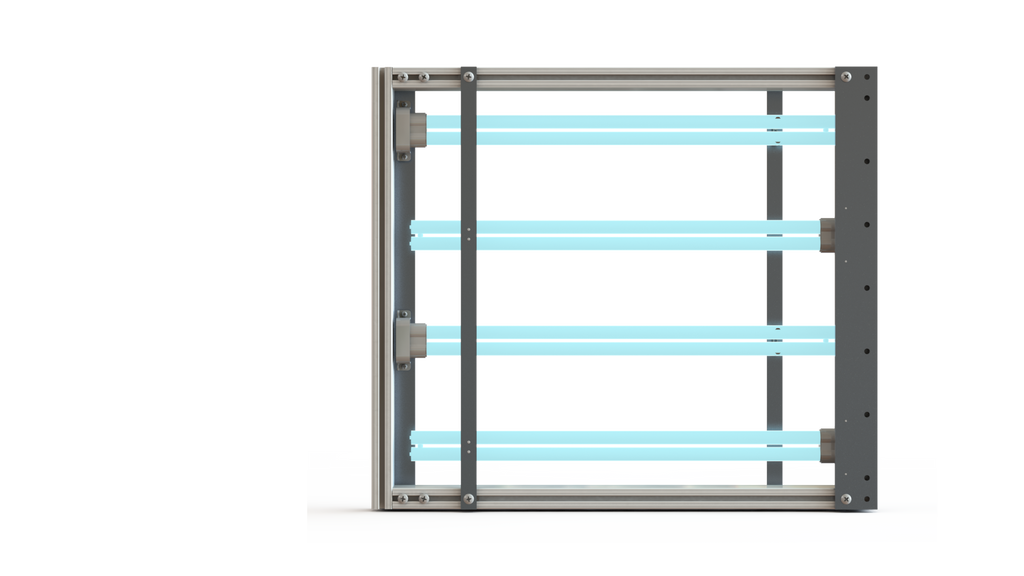

220 Watt Commercial Coil HVAC UV System

Adjustable 220 Watt Commercial Coil HVAC UV System

The 220 Watt Commercial Coil HVAC UV System is a powerful sanitation system for units of 10 tons and larger. Designed to correctly fit in most units this system comes with an expandable frame that lets it perfectly align with your HVAC system and sanitize all the air that goes through it no matter how big or small your vents are. The 254nm bulbs target and eliminate all harmful pathogens found in the air such (including COVID-19), bacteria, mold spores, and other microorganisms, protecting the safety of your clients, customers, workers, and students. This unit is adaptable for 460V, 240V, or 120V.

Features:

• 220 watts of UV-C 254nm germicidal irradiation target and kill harmful pathogens
• Expandable from 24” to 44” to adapt to any large or small vent
• LCD display with live system information to eradicate guesswork and control right functioning
• Adaptable for 460V, 240V, or 120V
• Available Replacement Philip Bulbs

Specifications:

• PEAK UV WAVELENGTH: 253.7nm
• UV-C WATTAGE: 220 WATTS
• REPLACEMENT UV-C BULB: 55 WATT Philips Bulbs
• UV BULB LIFE: 10,000 HOURS
• LAMP LENGTH: 22” (4FT)
• WEIGHT: 28 LBS.
• DIMENSIONS: 21.00” X 24.00” EXPANDED: 21.00” X 44.00”
• REPLACEMENT BULB SKU: 191210

• VOLTAGE: UNIVERSAL 120V - 277V

Technical Data Sheet:

Instruction Guide:
