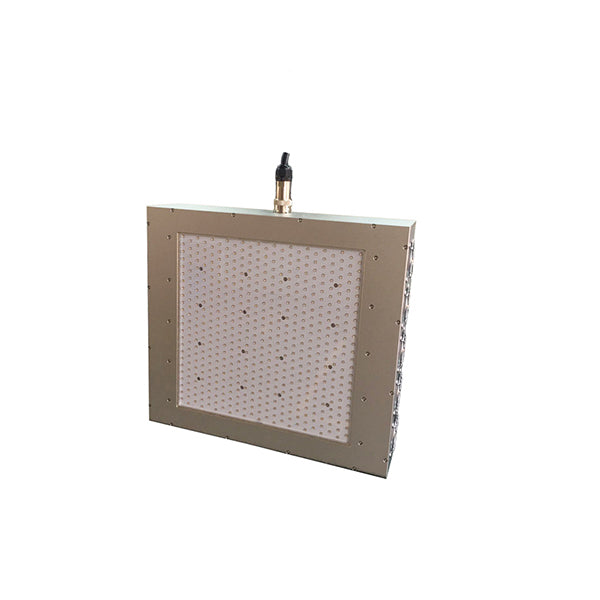

300x300mm High Powered UV LED Array with Air Cooling for UV LED Conveyors

The 300x300mm UV LED Array with Forced Air Cooling is a system designed to fit UV LED Conveyors, consisting of a controller and UV LED Irradiation head, this device is available in 365nm, 385nm, 395nm & 405nm.

This UV LED Array comes with integrated forced air cooling and is suitable for conveyors with an LED Array that is L430 x W390 x H100mm in size and have a 300x300mm effective curing area.

Features:

• The integrated forced air cooling system ensures your array works as efficiently as possible, protecting the LED system and extending its useful life
• UV LED cold light source ensures your material's composition won’t be harmed during curing process
• No preheating time needed, reach maximum light intensity instantly
• Power efficient and easy to install, use and control
• Eco-friendly, produces no ozone or mercury
• Lampshade protection makes it safer for workers
• Supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines

Technical Specifications

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

• Optic Power in relation to Irradiation Height
• At 0mm: 2.2W/cm²
• At 10mm: 0.65W/cm²
• At 20mm: 0.4W/cm²
• Effective Curing Area: 300x300mm
• Recommended Irradiation Height: 10mm
• Dimensions: L430 x W390 x H100mm
• Electric Power: 1656W
• Input Voltage: 220VAC 50Hz
• Cooling Method: Forced Air Cooling
• Service Life: ≥20,000 H

395nm*:

• Optic Power in relation to Irradiation Height
• At 0mm: 4.6W/cm²
• At 10mm: 1.3W/cm²
• At 20mm: 1.1W/cm²
• Effective Curing Area: 300x300mm
• Recommended Irradiation Height: 10mm
• Dimensions: L430 x W390 x H100mm
• Electric Power: 1656W
• Input Voltage: 220VAC 50Hz
• Cooling Method: Forced Air Cooling
• Service Life: ≥20,000 H

*Technical Specifications available at the moment apply to the specified wavelengths.

USER MANUAL

Controller Features

• The touchscreen display has a simple and intuitive operation
• Supports external dry contact to control UV LED switch and alarm output (dry contact)
• Support the standard RS485 communication protocol to facilitate the communication of peripheral devices
• Real-time monitoring of temperature, effectively protecting the stable operation of LED, and with over-temperature protection and alarm function
• Support automatic irradiation function, can count down the irradiation time, and can also record the total irradiation time

We can customize these systems to fit your needs exactly. We would love to help you with your UV LED curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
