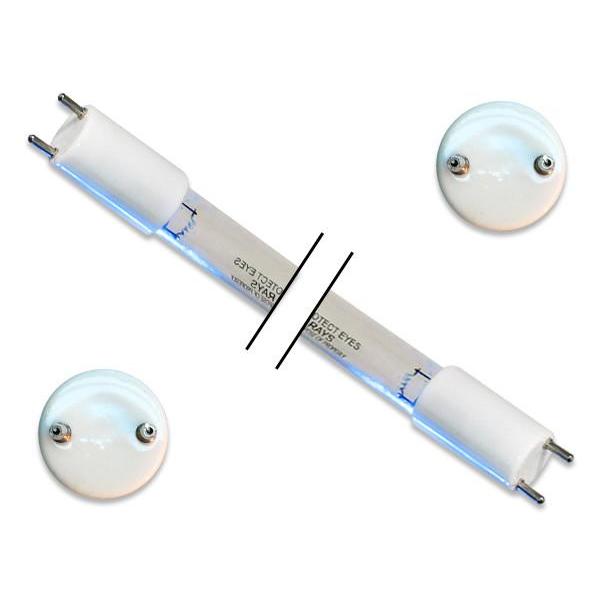

30W/2P Medium Bi-pin 30 Watt Replacement UVC Light Bulb

Medium 2 Pin G13 Double Ended - 30 Watt Germicidal Air & Surface Treatment Bulb

• 30W/2P medium bi-pin UV Light Bulb is 30 watts and 100% compatible with germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers.

  UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:

  • Bacteria
  • Molds
  • Protozoa
  • Viruses
  • Yeasts

  12 month worry free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ killing ability quickly diminishes. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.

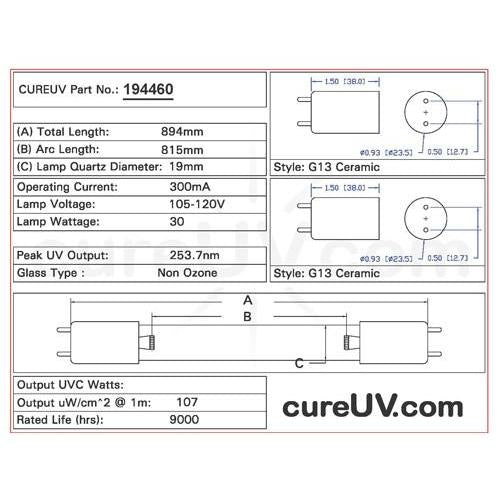

  Drawing of Replacement UVC Bulb Item # 194460 (PDF)

  UVC Light Disinfection Dosage Chart (PDF)

  Spectral Output of Germicidal UVC Light Bulbs (PDF)

  This replacement germicidal bulb is used for ultraviolet water purification and is well-suited for the applications that require UV-C intensity.

  Common Applications for use:

  • Air Conditioners
  • Air Purifiers
  • Beverage Services and Processing
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Surface Disinfection
  Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

  *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

  Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

• Total Length: 35.2 inches (894mm) Arc Length: 32.09 inches (815mm) Lamp Quartz Diameter: 19mm Operating Current: 300mA Lamp Voltage: 105-120V Lamp Wattage: 30 Watts Output uW/cm^2 @ 1m: 107 Peak UV Output: 253.7nm Glass Type: Non Ozone Base Style: Medium Bi-Pin (2 pin) G13 double ended Base Material: Ceramic Rated Life: Up to 9,000 hours

• Part Number:

  • 30W/2P
