38" Arc Length HD M & R Part # 1036115 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 38 Inch Arc Length

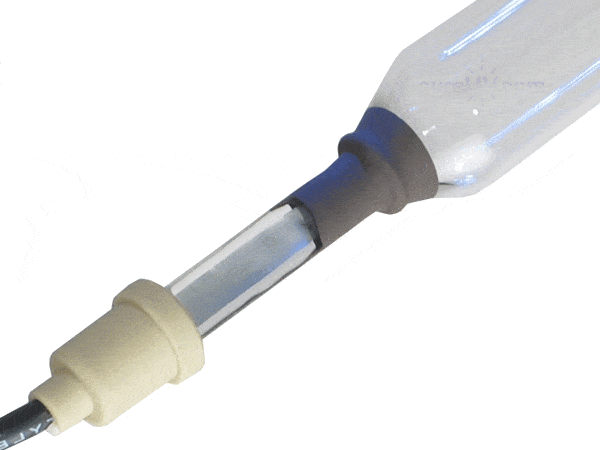

The M & R Part # 1036115 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an arc length of 38 inches and an overall length of 44.13 inches. With a tube diameter of 25.5mm, the UV curing lamp bulb exceeds OEM standards of UV curing bulb performance. The UV replacement bulb is 100% compatible to the M&R UV systems and works well for the following lamp parts:

• 1036115

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 38 inches
• Total Length: 44.13 inches
• Tube Diameter: 25.5 mm
• Wattage Per Inch: 400 WPI

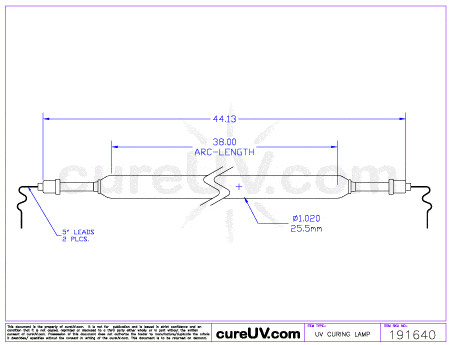

M&R 38 inch UV lamp (400 WPI) - OEM part number S7538A4C - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
