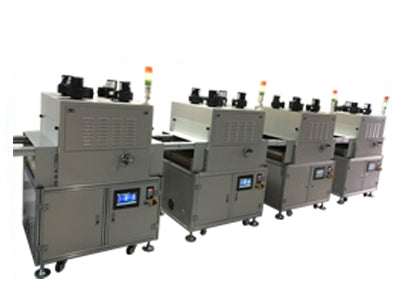

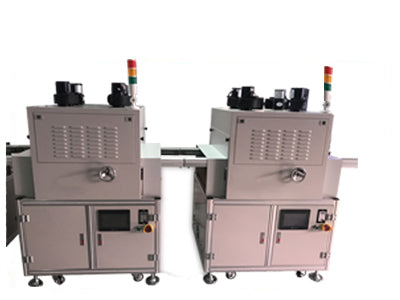

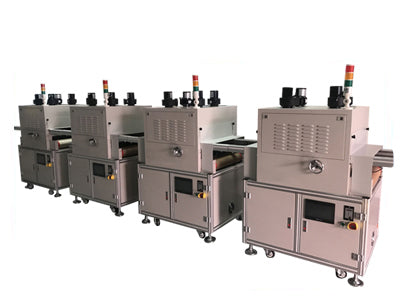

450x200mm UV LED Curing Conveyor with adjustable Chain Belt

The 450x200mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.

Features:

• LED array ensures you find the ideal wavelength for the material at hand
• No preheating time needed
• Extra durable chain belt adjusts to the size of the product being cured
• The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
• UV LED cold light source ensures your material's composition won’t be harmed during curing process
• User friendly and quick to use

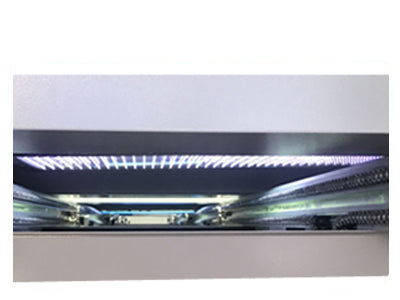

This UV conformal coating curing design consists of a control system, High-Intensity UV LED Irradiation head and a chain conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 450x200mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines. And its two stainless steel chain belt design allows the user to manually adjust the size of the product fixture.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

• Electric power: 1620W
• Optic power: 800MW/CM2
• Curing area: 450x200mm
• Cooling method: air cooling
• Dimension: L1200mm*W783mm*H1488mm

395nm*:

• Electric power: 1620W
• Optic power: 1600MW/CM2
• Curing area: 450x200mm
• Cooling method: air cooling
• Dimension: L1200mm*W783mm*H1488mm

*Technical Specifications available at the moment apply to the specified wavelengths.

We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
