900x30mm UV LED Array with Integrated Water Cooling for UV LED Conveyors

900x30mm UV LED Array with Integrated Water Cooling for UV LED Conveyors

SKU:511115-365-12

Wavelength
Irradiator width

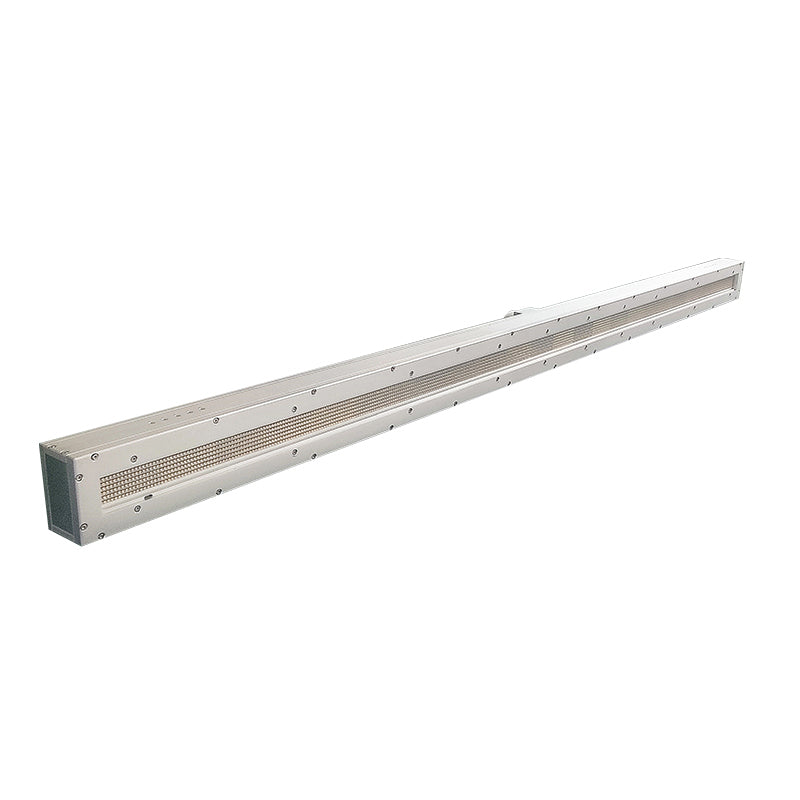

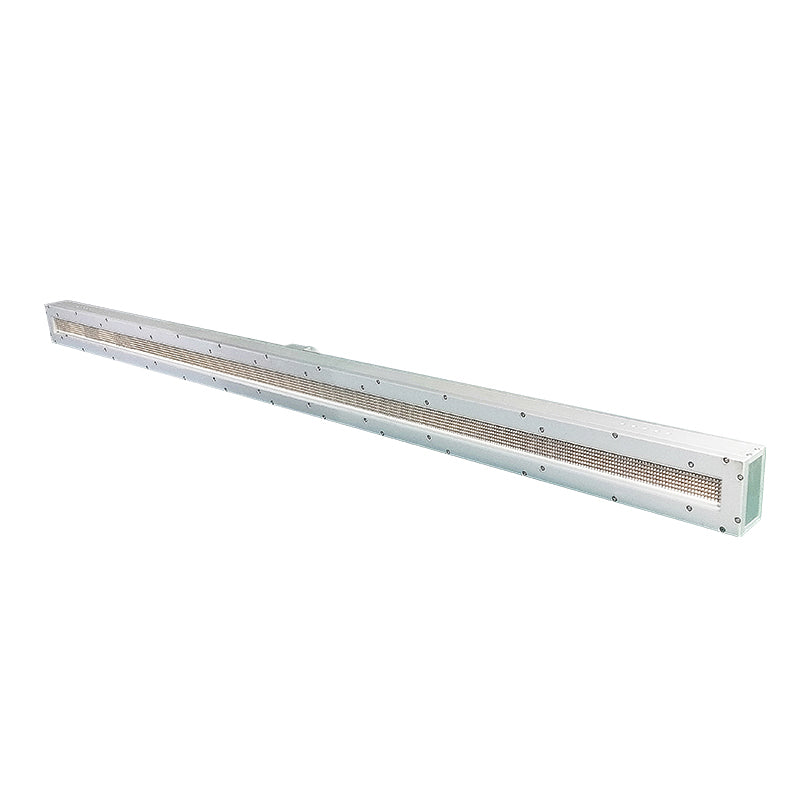

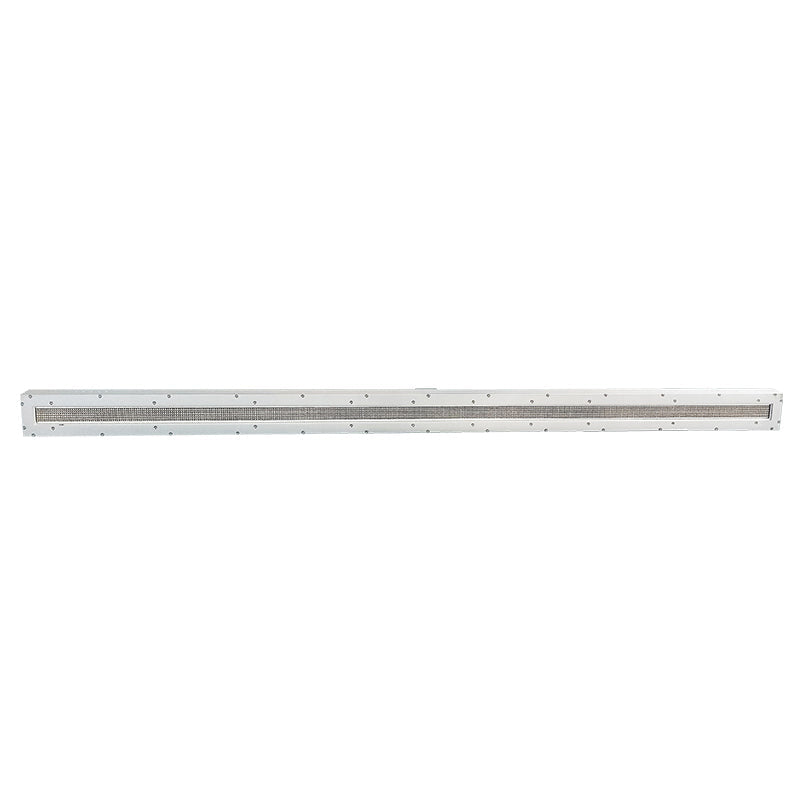

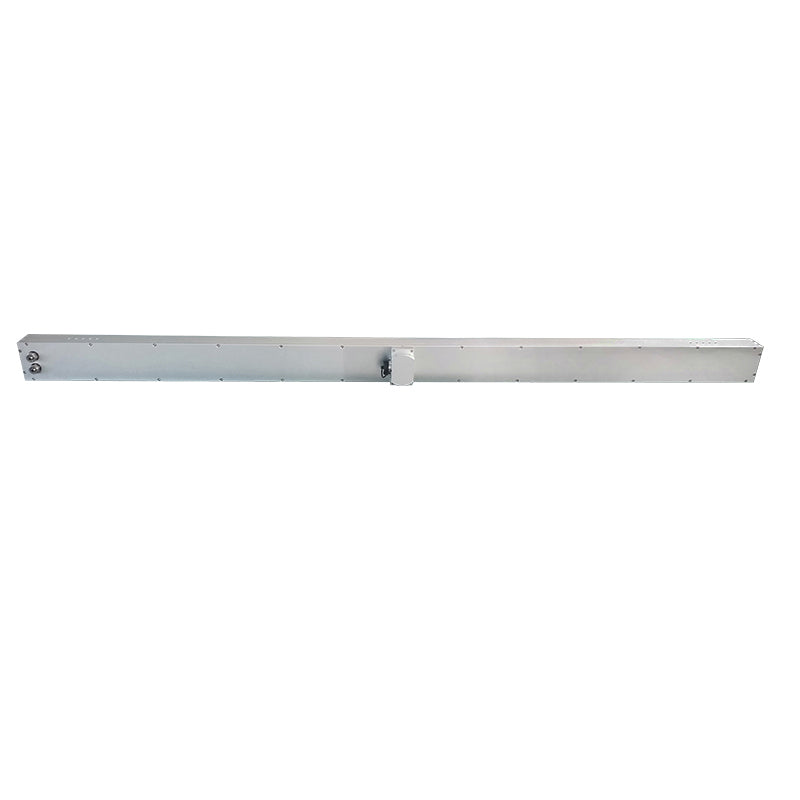

The 900x30mmUV LED Array with Integrated Water Cooling is a system designed to fit UV LED Conveyors, consisting of a controller and UV LED Irradiation head, this device is available in 365nm, 385nm, 395nm & 405nm.

This UV LED Array comes with integrated water cooling and is suitable for the SPDI UV High Intensity LED UV Curing Conveyor System.

Features:

  • The integrated water cooling system ensures your array works as efficiently as possible, protecting the LED system and extending its useful life
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • No preheating time needed, reach maximum light intensity instantly
  • Power efficient and easy to install, use and control
  • Eco-friendly, produces no ozone or mercury
  • Lampshade protection makes it safer for workers
  • Supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines

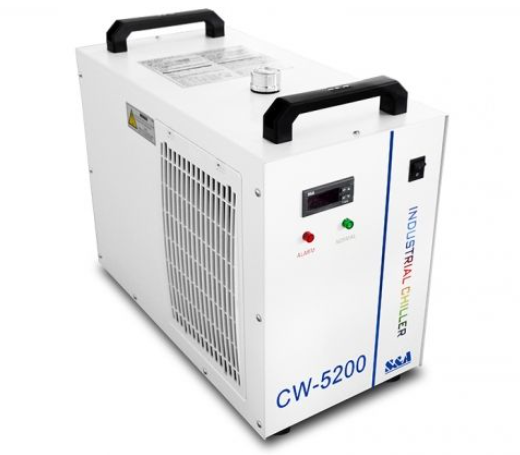

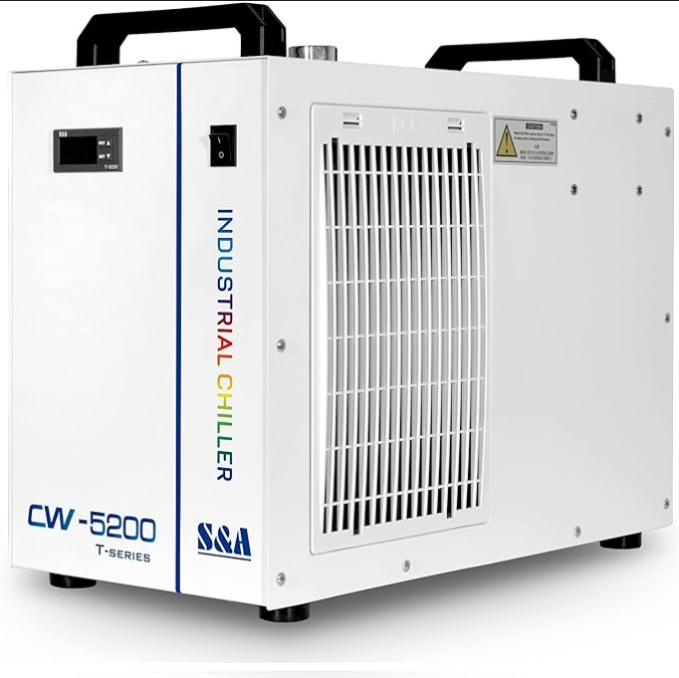

This system is supported by the CW-5000/5200 Industrial Chiller, for more information on that click the link above.



Technical Specifications

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

  • UV Exposure Intensity: Up to 10 W/cm2
  • Effective Curing Area: 900x30mm
  • Input Voltage: 120 VAC/60 Hz (also available in 220V/50Hz for international customers)
  • Cooling Method: Water Cooling

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. We would love to help you with your UV LED curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
