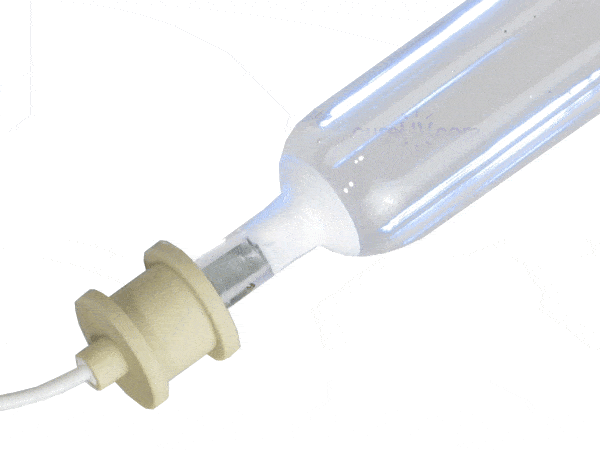

Aetek Part # 0700938 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 10 Inch Arc Length - 14.56 Inch Total Length (end to end)

The Aetek Part # 0700938 UV Curing Lamp Bulb is a guaranteed replacement UV lamp that is filled with mercury and has a 10 inch arc length. The lamp bulb has a total length of 14.56 inches and exceeds the OEM Standards of UV Curing bulb performance. The lamp bulb is compatible to the following part numbers:

• 6610A448
• 07-00938
• 1022CHD
• H10F15F1

This replacement bulb works to cure and dry coatings in signs and graphics. The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 10 Inches
• Overall Length: 14.56 Inches

Spectral Output of a Mercury UV Lamp (PDF)

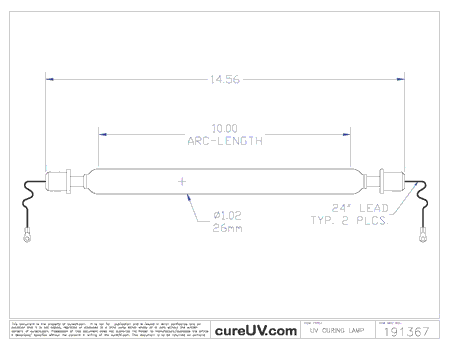

Aetek compatible UV lamp - OEM part number 0700938 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
