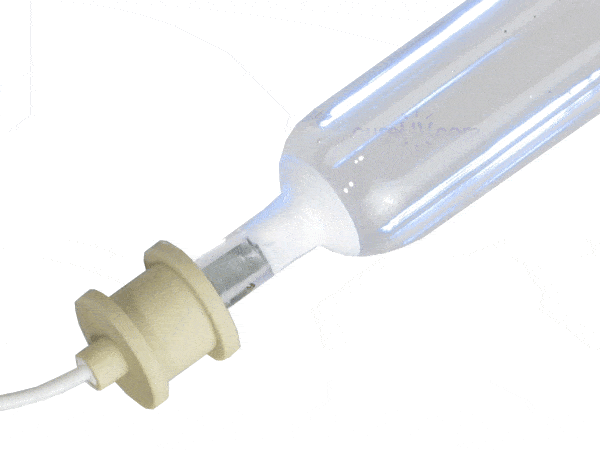

Aetek Part # 0701134 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 16.63 Inch Total Length (end to end)

Our Aetek Part # 0701134 UV Curing Lamp Bulb is a 100% compatible UV lamp bulb that is filled with mercury and has an arc length of 12 inches. The UV curing lamp bulb has an overall length of 16.60 inches and an output power of 325 WPI. CureUV’s replacement lamp bulb is completely compatible to the Aetek curing system especially to the following model numbers:

• 0701134
• 2025
• 1222C10
• H12C3F3

The replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 12 Inches
• Overall Length: 16.625 Inches
• Tube Diameter: .71"
• Watts Per Inch: 325 WPI

Spectral Output of a Mercury UV Lamp (PDF)

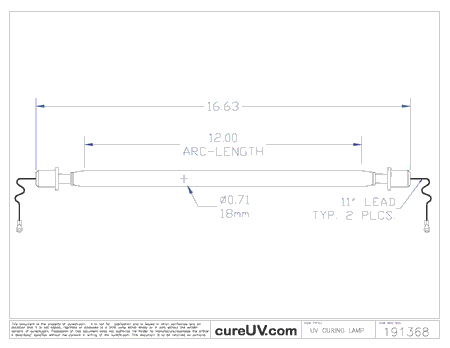

Aetek compatible UV lamp - OEM part number 0701134 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
