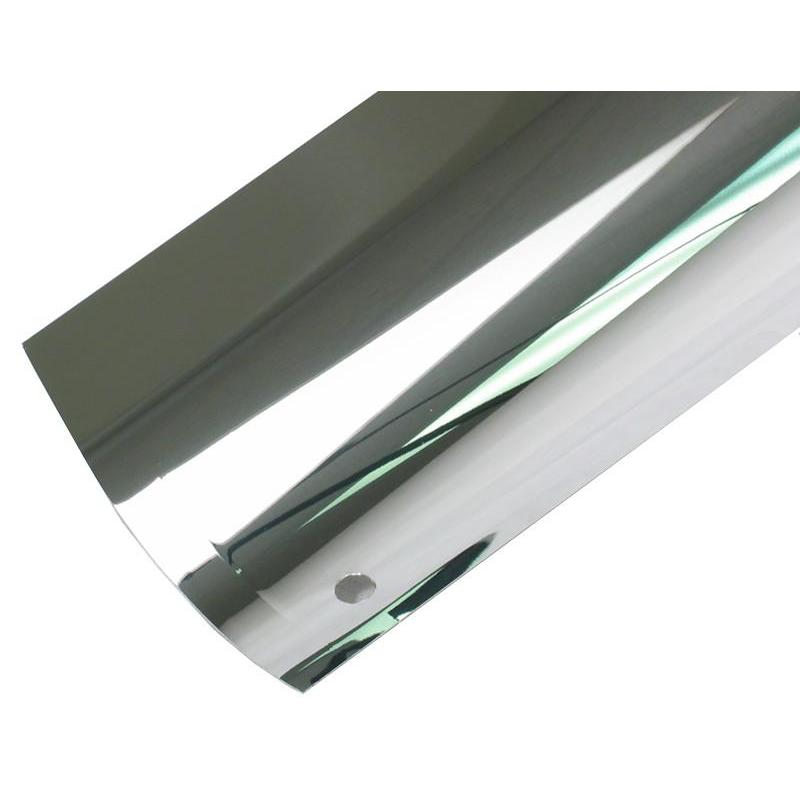

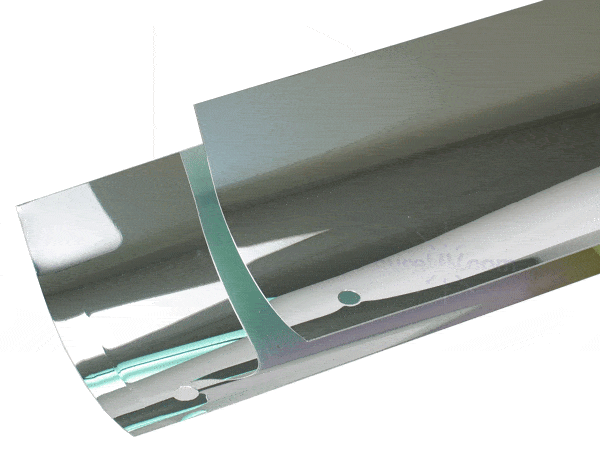

Aetek Part # 0700920 UV Curing Reflector Liner

Guaranteed 100% Ultraviolet (UV) Reflector Compatible for Aetek Part # 0700920 UV Lamp Bulb

The Aetek Part # 0700920 UV Curing Reflector Liner exceeds OEM standards of bulb performance. The Aetek UV replacement reflectors or liners are completely compatible to the Aetek UV Systems. The liners main purpose is to reflect UV curable energy. The liner enables higher UV wavelength to pass through it and is a generic replacement for the following system models:

• 0700920
• 1222CHD
• M550225
• UVT2102
• 200800
• H12C4F2

The main function of the reflectors is that it reflects visible light and allows infrared radiation to pass. The illuminated object is heated less as the infrared radiation of the light beam is reduced. The UV reflector liner has the following dimensions:

• 25" x 3.51"

UV reflectors are very important in a UV system and are responsible for the reflection of over 55% of the UV energy source. Therefore it is very important to maintain and clean the UV reflectors in a UV system periodically.

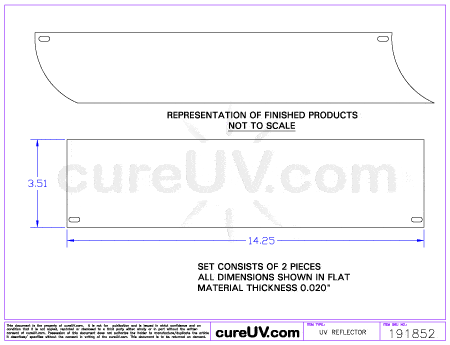

Aetek compatible UV reflector - OEM part number 0700920 - Drawing (PDF)

*All reflectors listed are compatible brand UV products. We do not sell Aetek brand reflectors. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
