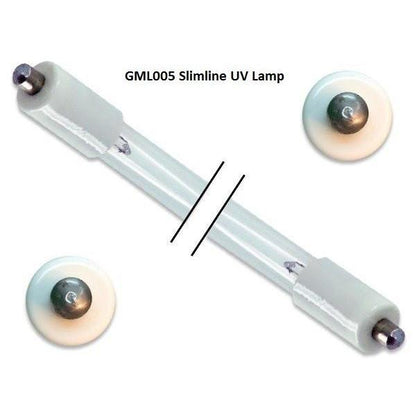

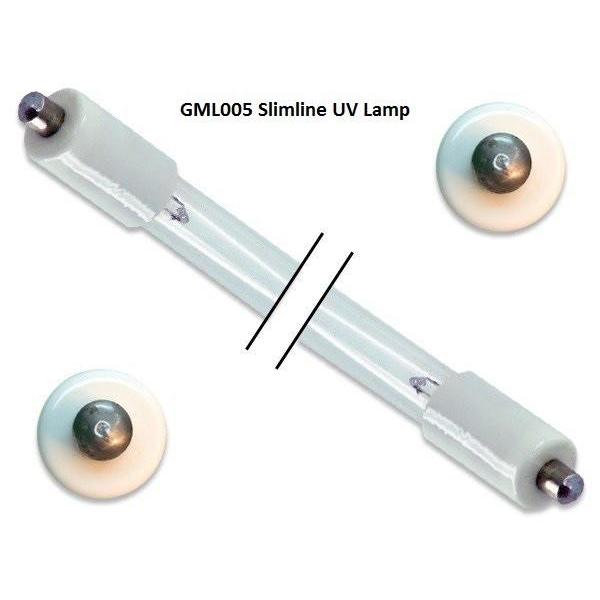

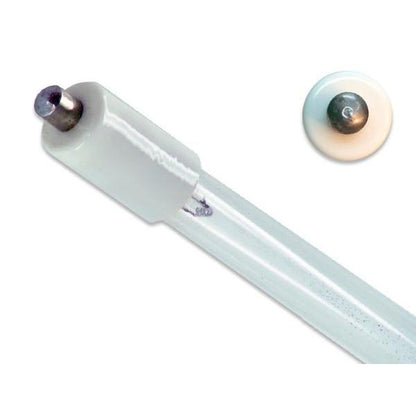

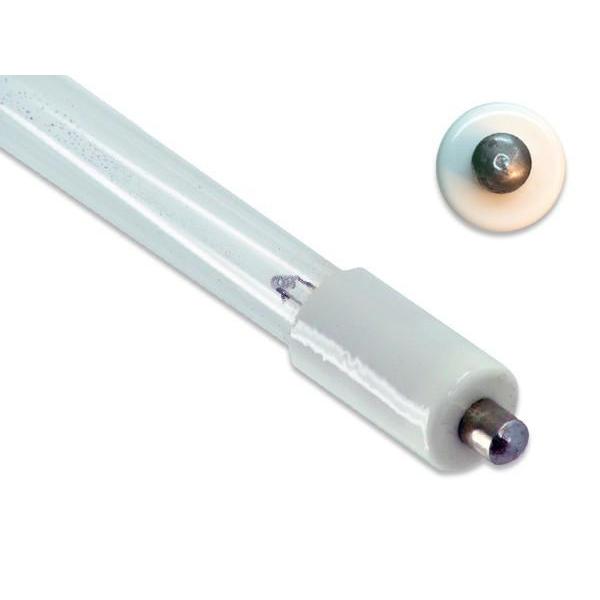

CureUV Brand Bulb 100% Compatible Replacement for American Ultraviolet GML005 Replacement UVC Light Bulb

Single Pin Double Ended - 39 Watt Germicidal Water Treatment Bulb

The American Ultraviolet GML005 Replacement UVC Light Bulb is a single-pin double-ended light bulb that has an arc length of 30.12" and a total length of 33.19". With a peak output of 253.7nm, the UVC replacement light bulb helps in destroys 99.9% of germs in water to give you safe water at all times. The replacement bulb is made using ceramic as the base material and comes in a non-ozone glass type. The light bulb lasts for 10,000 hours after which we highly recommend replacing it for better performance.

This process of water purification is a purely physical process and does not alter the chemistry, pH, or taste of water. It is also an environment-friendly option and is better than chemicals and their bi-products. Many people believe that the system enables a safe solution against microorganisms such as giardia and cryptosporidium that are considered to be chlorine-resistant. The UV light bulb emits a short wavelength of 253.7 nm and this energy reacts photo-chemically with the genetics of the microorganisms. The replacement bulb works with germicidal OEM water disinfection filters, UV sanitizers, and Ultraviolet water purifiers.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

System Applications:

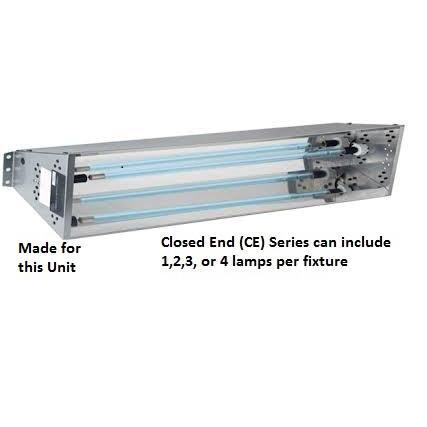

The UVC bulb is compatible for use with the following germicidal UVC system models:

• CE-36
• CE-36-2
• CE-36-3
• CE-36-4
• DB-36
• GR-36
• GR-36-2
• RT-2G-2CWE
• RT-2G/SCW277
• RT-2G2/CW27M
• RT-36-2GE
• RT-36-2GM
• RT-36-4GE
• RT-36-4GM
• SC-1
• SM-36-L
• STG-36
• STG-36-2
• TB-36-W
• UF-36
• UF-36-2
• UFA-36
• UFA-36-2
• UFR-36
• UFR-36-2
• WM-36-L

Common Applications:

• Air Conditioners
• Air Purifiers
• Aquaculture
• Beverage Services and Processing
• Drinking-Water
• Food Services and Processing
• Heating & Cooling Filters
• HVAC Systems
• Municipal Wastewater
• Pools, Spas, and Water Features
• Surface Disinfection
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

Specifications:

• Total Length: 33.19 inches (843mm)
• Arc Length: 30.12 inches (765mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Voltage: 115V
• Lamp Wattage: 39 Watts
• Output UVC Watts: 13 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone
• Base Style: Single pin double ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Technical Data Sheets:















Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

This product is a substitute item for old CureUV product item #: 191664, 191689, 191691, 191692, 192017, 192018, 192019, 194108, 194110, 194113, 194115, 194117, 194118, 194119, 194120, 194129

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
