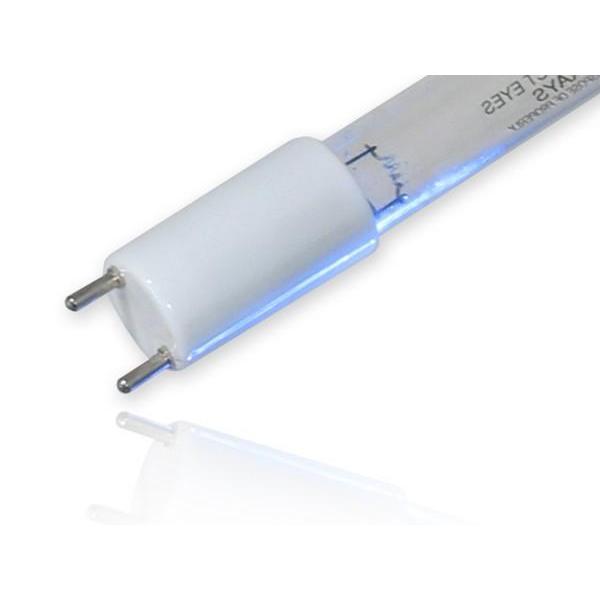

American Ultraviolet GML1222 Compatible CureUV Brand Replacement UVC Light Bulb

Medium 2 Pin Double Ended - 52 Watt Germicidal Air, Surface & Water Treatment Bulb

CureUV’s American Ultraviolet GML1222 Generic Replacement UVC Light Bulb is a 52 Watt germicidal surface, water, and air treatment bulb that has a total length of 22.36 inches and a life of 10,000 hours. After this, the germicidal UV output reduces though the lamp continues to emit light.

Studies have shown that a UV water purification system can effectively destroy 99.9% of waterborne microorganisms. It provides a safe solution as this method of sterilizing water is a purely physical process and does not alter the chemistry, pH or taste of water. Both economical as well as environmentally friendly, this method of water treatment is a much better option than chemicals and their by-products.

Many people also believe that this system provides a safe solution against microorganisms such as cryptosporidium and giardia that are resistant to chlorine. What's more, a UV system is an environmentally friendly alternative to chlorine disinfection. UV lamps are known to emit energy at 253.7 nm wavelength and this energy reacts photo-chemically with the genetics of microorganisms. Ultraviolet technology provides peace of mind and keeps you protected from various water contaminants such as protozoa, yeast, cyst, bacteria, and virus. American Ultraviolet GML1222 Replacement UVC Light Bulb is compatible with

• Germicidal OEM air and water disinfection filters
• UV sanitizers
• Ultraviolet purifiers

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Common Applications

• Air Conditioners
• Air Purifiers
• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Heating & Cooling Filters
• HVAC Systems
• Municipal Wastewater
• Pools, Spas, and Water Features
• Surface Disinfection
• Well Water

Technical Specifications:

• Total Length: 22.36 inches (568mm)
• Arc Length: 19.17 inches (487mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 800mA
• Lamp Voltage: 65V
• Lamp Wattage: 63 Watts
• Output UVC Watts: 17 Watts
• Output uW/cm^2 @ 1m: 160
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone

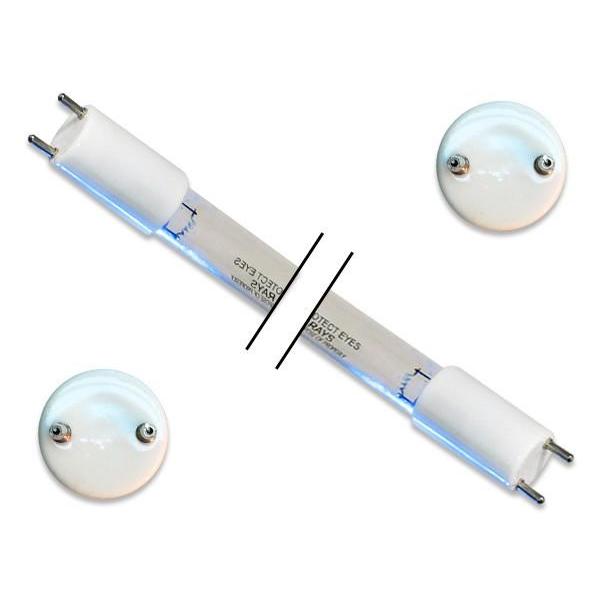

• Base Style: Medium Bi-Pin (2-pin) double ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

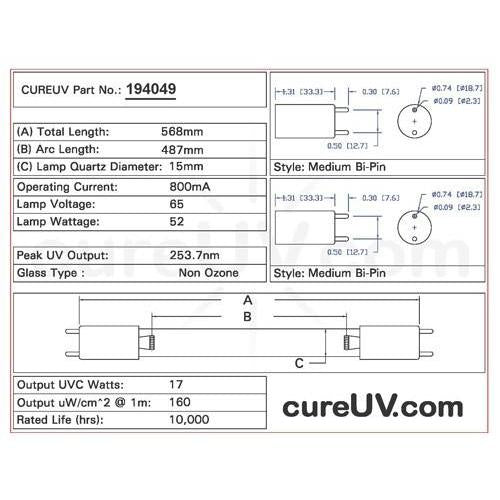

Drawing of Replacement UVC Bulb Item # 194049 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
