UV Curing Lamp - American Ultraviolet Part # A9462MCB Compatible Generic UV Curing Lamp Bulb
UV Curing Lamp - American Ultraviolet Part # A9462MCB Compatible Generic UV Curing Lamp Bulb UV Curing Lamp - American Ultraviolet Part # A9462MCB Compatible Generic UV Curing Lamp Bulb

American Ultraviolet Part # A9462MCB Compatible CureUV Brand UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$189.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 11.15 Inch Total Length (end to end)

The CureUV generic version of the American Ultraviolet Part # A9462MCB UV Curing Lamp Bulb is a 100% compatible replacement UV lamp bulb that has an arc length of 6 inches and a total length of 11.15 inches. With an output power of 400 WPI, the lamp bulb is filled with mercury and is 100% compatible to the American Ultraviolet UV systems.

This replacement bulb works to cure and dry coatings in signs and graphics. The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 6 Inches
  • Overall Length: 11.15 Inches

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

American Ultraviolet compatible UV lamp - OEM part number A9462MCB - Drawing (PDF)

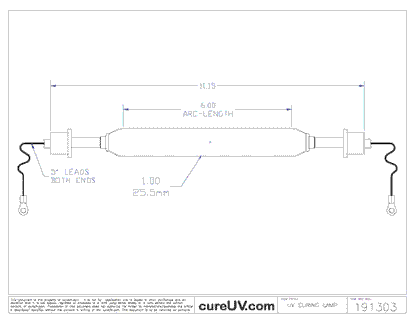

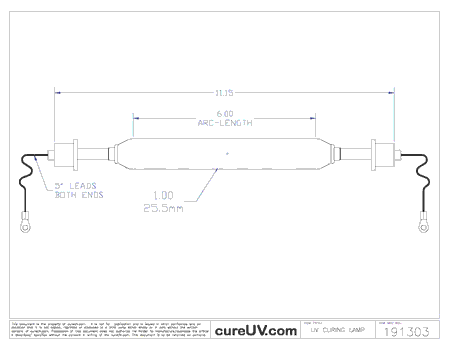

American Ultraviolet Compatible UV Curing Lamp - OEM Part Number A9462MCB drawing

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

QUESTIONS & ANSWERS

Ask a Question
  • I need to know the availability of this product please: AMERICAN ULTRAVIOLET PART # A9462MCB UV CURING LAMP BULB. I need 11 pieces of them. If not, How long does it take to be available?

    Hello Luisa, this UV lamp is not an item we usually keep in stock. However, we can have them ready within a couple days with a confirmed order. Please email us at sales@cureuv.com or call us at (800) 977-7292 and we can help you further with your inquiry.
