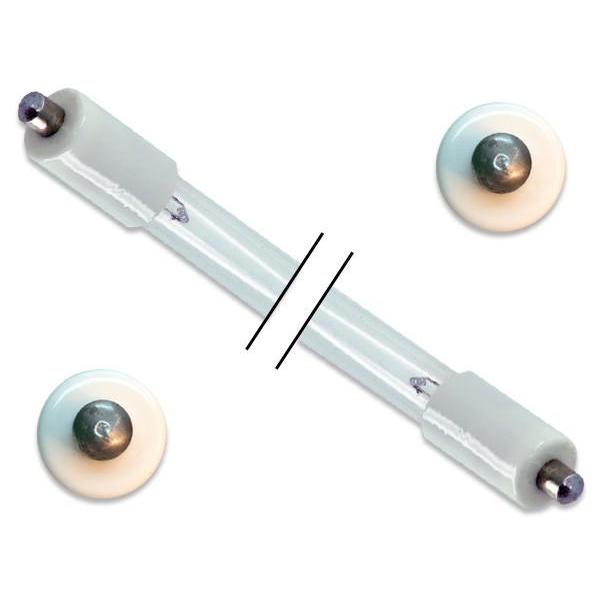

Aqua Azul L-1-158 Replacement UVC Light Bulb

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb

The Aqua Azul L-1-158 Replacement UVC Light Bulb is a 75 Watt germicidal water treatment bulb that is completely compatible with germicidal OEM water disinfection filters, UV sanitizers and ultraviolet water purifiers. Studies prove that germicidal light bulbs emit UV rays at short wavelengths that enable disinfection of water and destruction of microorganisms. This method alters the genetic composition of microorganisms and renders them harmless.

It is necessary to schedule the replacement of light bulbs annually in germicidal water treatment systems to ensure the efficiency of the system. These high-quality lamps have a length of 61.22 inches and give out a peak UV output of 185 nm that reacts with the genetics of microorganisms such as spores, bacteria and virus. These UV lamps are designed to work for 10,000 hours after which they may still emit light but may not be as effective as before.

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specification:

• Total Length: 61.22 inches (1555mm)
• Arc Length: 58.66 inches (1490mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 450mA
• Lamp Voltage: 170V
• Lamp Wattage: 75 Watts
• Output UVC Watts: 33 Watts
• Output uW/cm^2 @ 1m: 240
• Peak UV Output: 185nm
• Glass Type: Ozone

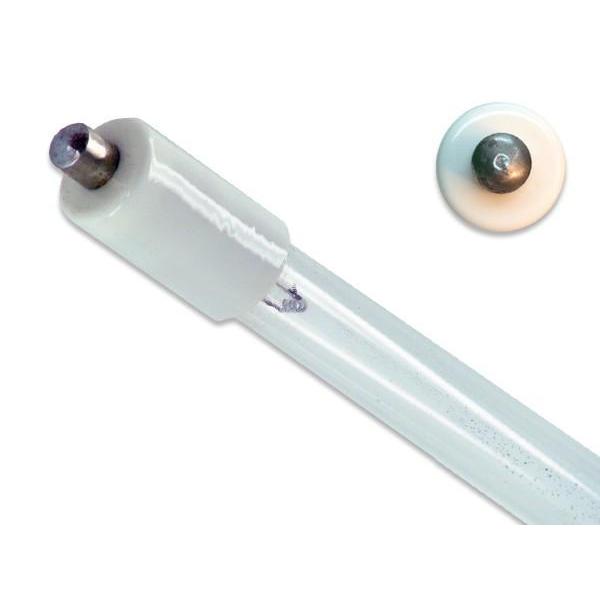

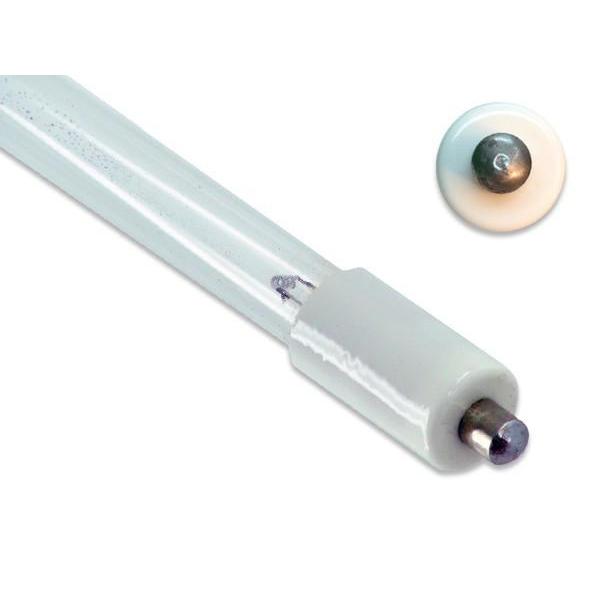

• Base Style: Single pin double ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

Drawing of Replacement UVC Bulb Item # 194553 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Azul brand UVC bulbs. All Aqua Azul brand names, trademarks, and logos are property of Aqua Azul.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Aqua Azul Part Number:

• L-1-158

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
