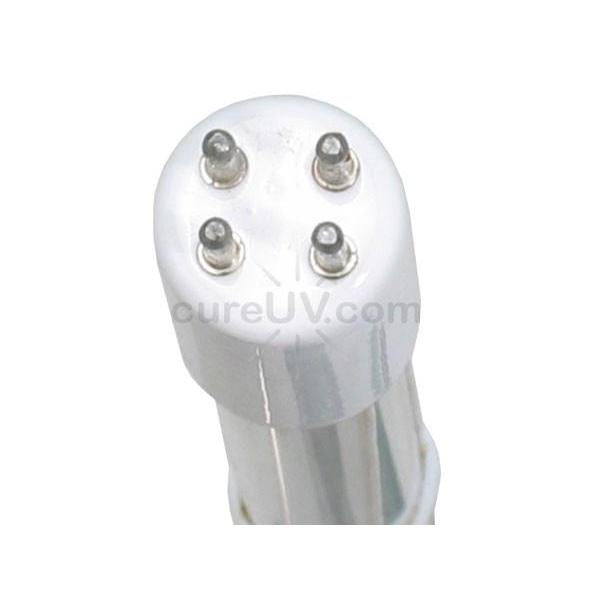

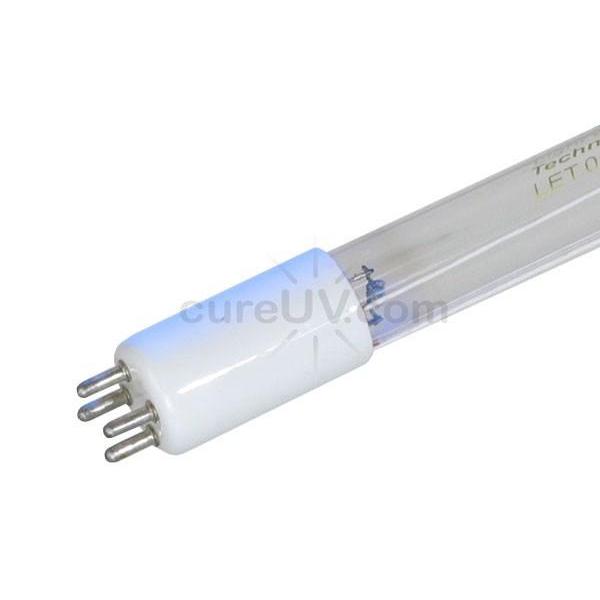

Aqua Azul L-1-803 Replacement UVC Light Bulb

4 Pin Standard and 4 Pin Step on a Single End - 40 Watt Germicidal Water Treatment Bulb

CureUV.com’s Aqua Azul L-1-803 Replacement UVC Light Bulb is a four pin stepped on single end germicidal water treatment bulb. It is vital that we have source to clean water to maintain good health and hygiene. UV-C water treatment methods are considered the safest, easiest and cost effective methods of removing pathogens in the water. Microorganisms such as bacteria, virus, yeast, and protozoa present in water may cause harm. Using UV method of water purification eliminates these harmful microorganisms by short wavelengths emitted by the light bulbs and enables through disinfection. This method alters the genetic composition of the microorganisms and renders them harmless. This method of water purification is a pure physical process and does not affect the pH, composition and chemistry of water, a far better option to chemicals and their by-products.

With a total length of 33.19 inches, this UV-C bulb can last up to 10,000 working hours after which the bulb may emit light but its microorganism controlling intensity reduces. This is why we recommend that you replace the light bulb annually. We ensure that each lamp from CureUV undergoes 100% quality control inspection to provide you utmost safety with water.

Aqua Azul L-1-803 Replacement UVC Light Bulb is compatible with UV-C system models:

• I-5
• I-20
• I-35
• IJ-15

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage is inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home. The UV lamp starts instantly and makes use of a coil filament that operates hot.

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specification:

• Total Length: 33.19 inches (843mm)
• Arc Length: 29.92 inches (760mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 120V
• Lamp Wattage: 40 Watts
• Output UVC Watts: 16 Watts
• Output uW/cm^2 @ 1m: 150
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin stepped on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

Drawing of Replacement UVC Bulb Item # 194208 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

I-5, I-20, I-35, IJ-15

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 194130, 194131, 194133, 194209

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Azul brand UVC bulbs. All Aqua Azul brand names, trademarks, and logos are property of Aqua Azul.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
