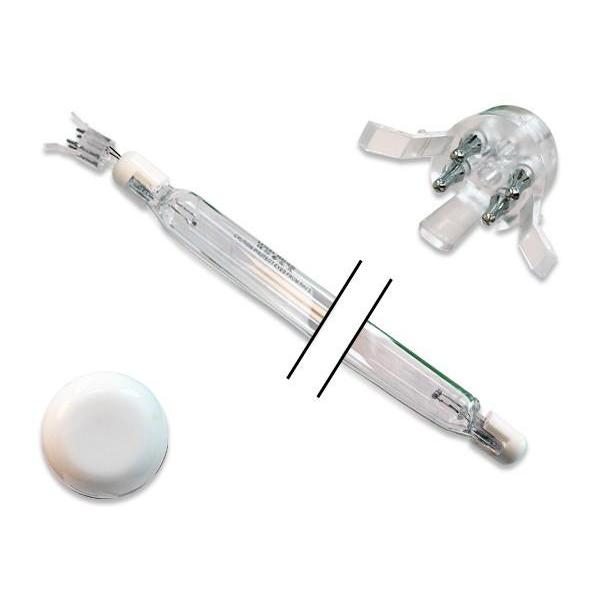

Aqua Treatment Service ATS4-325 Replacement UVC Light Bulb

4 Pin on a Single End - B28 Lead Wire with Connector - 16.5 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS4-325 Replacement UVC Light Bulb is a 16.5 Watt germicidal water treatment bulb that has a total length of 12.8 inches and can work efficiently for up to 12,000 hours. This replacement light bulb has a peak output of 253.7 nm and this wavelength is capable of killing microorganisms such as bacteria, virus, protozoa and yeast. The UVC bulb is compatible with the germicidal UV-C lamp model:

• ATS4-325

UV method is a preferred method of water treatment as it employs UV light at a particular wavelength and disrupts the DNA of microorganisms. It is compatible with germicidal OEM water disinfection filters, UV water purifiers and sanitizers. It is capable of destroying 99.9% harmful organisms in water. While this method effectively destroys the genetics of microorganisms it does not alter the pH, taste or chemistry of water in the process. This method is a good option against chemicals such as chlorine and their byproducts. The system provides protection against yeast, cyst, virus and bacteria. The replacement UVC bulb provides 12 months worry-free operation after which its germ destroying capabilities reduces. Replace your UV system annually with Aqua Treatment Service ATS4-325 Replacement UVC Light Bulb.

Technical Specifications:

• Total Length: 12.8 inches (325mm)
• Arc Length: 9.45 inches (240mm)
• Lamp Quartz Diameter: 17.5mm
• Lamp Voltage: 28V
• Lamp Wattage: 16.5 Watts
• Output UVC Watts: 6 Watts
• Output uW/cm^2 @ 1m: 60
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end with B28 lead wire and connector
• Base Material: Ceramic
• Rated Life: Up to 12,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

Drawing of Replacement UVC Bulb Item # 192552 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
