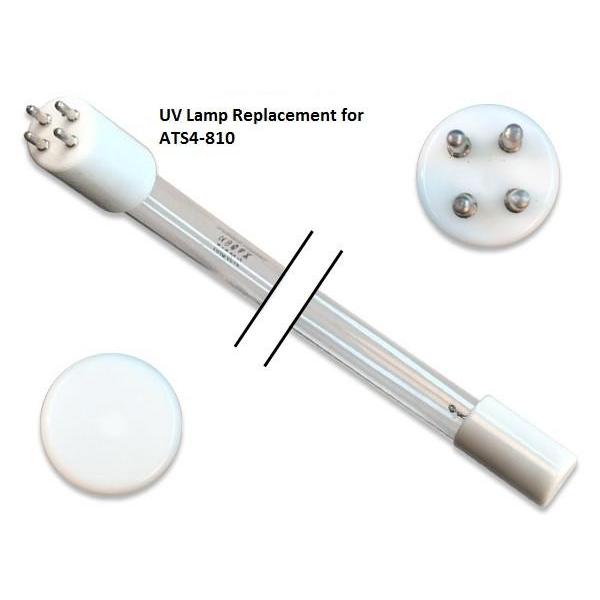

Aqua Treatment Service ATS4-810 Replacement UVC Light Bulb

4 Pin on a Single End - 39 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS4-810 Replacement UVC Light Bulb is a 39 Watt, 4 pins on a single end water treatment bulb that is a compatible replacement for the following germicidal UV-C models:

• ATS4-810

This method of water purification does not require chemical handling and requires no special storage. It does not cause any change in odor, pH, taste, or chemistry of water. Emitting a wavelength of 253.7 nm, this UV-C bulb is designed to destroy microorganisms such as the harmful E.coli, giardia, and cryptosporidium. When the UV rays from the light bulb pass through water it changes the genetics of the microorganisms rendering them harmless and unfit for reproduction.

For better efficiency, we always recommend replacing the light bulb annually. The high-quality lamps last 10,000 working hours after which it is better to replace them for efficiency and protection. The total length of the UVC light bulb is 31.89 inches and it has a peak output of 253.7 nm that help destroy microorganisms such as spores, virus, bacteria, and other pathogens. Ensure utmost safety when you replace with the Aqua Treatment Service ATS4-810 Replacement UVC Light Bulb.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 31.89 inches (810mm)
• Arc Length: 28.74 inches (730mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 39 Watts
• Output UVC Watts: 13.8 Watts
• Output uW/cm^2 @ 1m: 130
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

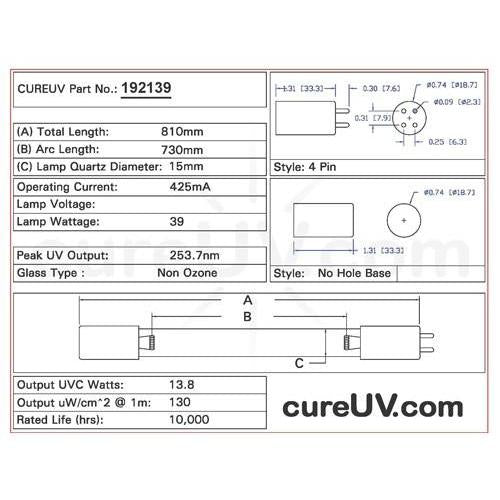

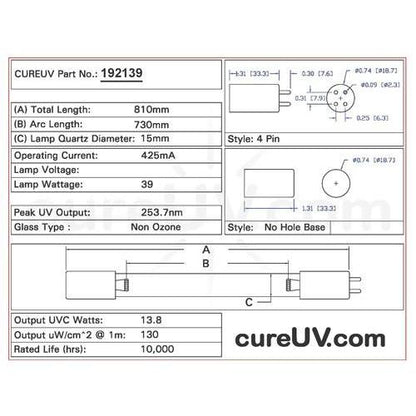

Drawing of Replacement UVC Bulb Item # 192139 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

• EV-20E
• GDS-20

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 192140

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Aqua Treatment Service Part Number:

• ATS4-810

Aqua Treatment Service System Model:

• EV-20E
• GDS-20

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
