Aqua Treatment Service ATS4-843 Replacement UVC Light Bulb

4 Pin on a Single End - 41 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS4-843 Replacement UVC Light Bulb is a top-quality UV-C replacement bulb that destroys harmful pathogens in water making the water safe for consumption. This germicidal UVC light bulb is compatible with the following UVC system models:

• ATS4-843

The 41 Watts UVC bulb is compatible with germicidal OEM water disinfection filters, UV sanitizers, and UV water purifiers and can sanitize and kill almost 99.9% waterborne germs such as bacteria, protozoa, yeast and molds. The UVC system emits an ultraviolet wavelength of 253.7 nm that is researched to destroy the DNA of microorganisms, rendering them harmless. The UV-C light bulb gives you 12 months of worry-free operation after which it is recommended to replace the light bulb for efficiency even though it continues to emit light. The UV-C light bulb has a total length of 33.19 inches and the ceramic bulb can last up to 10,000 hours. Since the Aqua Treatment Service ATS4-843 Replacement UVC Light Bulb does not require chemicals, it does not change the pH, taste and chemistry of water and is considered eco-friendly and cost effective.

Technical Specifications:

• Total Length: 33.19 inches (843mm)
• Arc Length: 30.12 inches (765mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 41 Watts
• Output UVC Watts: 15 Watts
• Output uW/cm^2 @ 1m: 136
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

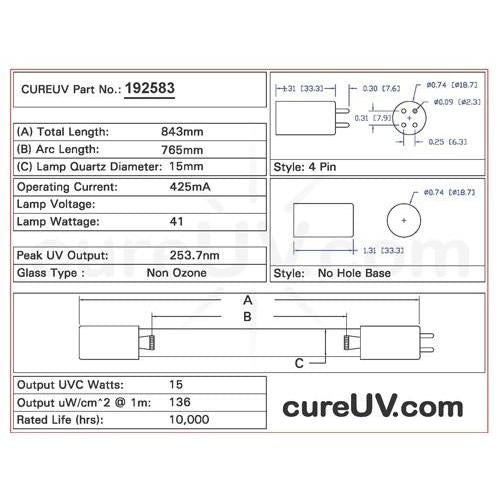

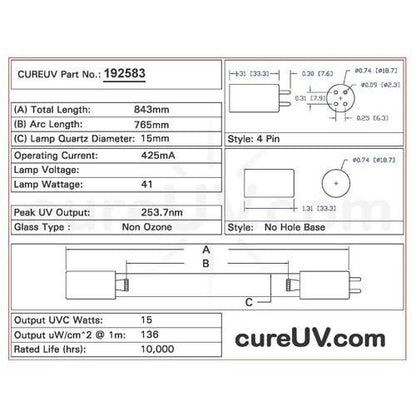

Drawing of Replacement UVC Bulb Item # 192583 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This UVC bulb is a compatible replacement for germicidal UV-C lamp part number:

ATS4-843

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
