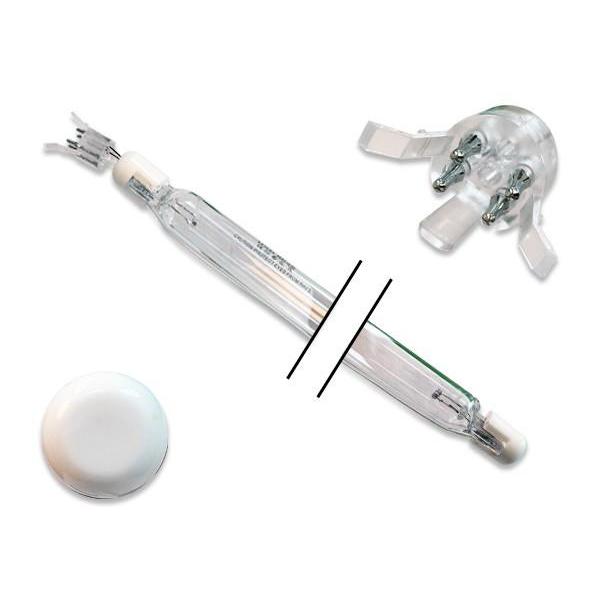

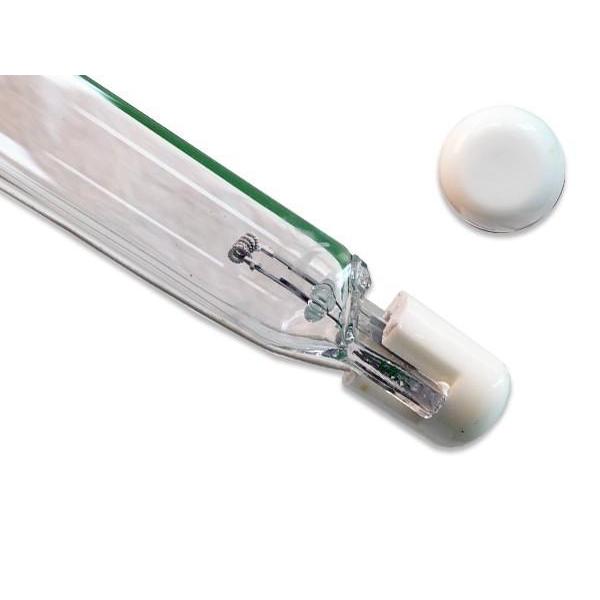

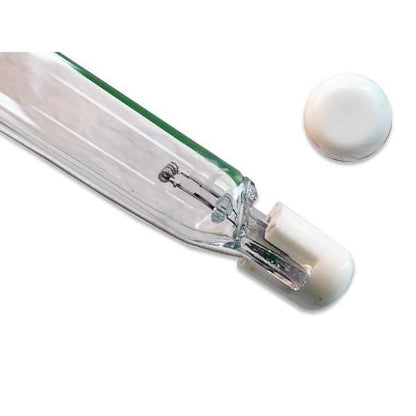

Aqua Treatment Service ATS4-875 Replacement UVC Light Bulb

4 Pin on a Single End - B28 Lead Wire with Connector - 84 Watt Germicidal Water Treatment Bulb

CureUV.com’s Aqua Treatment Service ATS4-875 Replacement UVC Light Bulb is an 84 Watt germicidal water treatment bulb that has a total length of 34.45 inches and a peak UV output of 253.7 nm. This wavelength is studied to alter the genetics of the microorganisms and renders them harmless. This method of water purification works well to destroy pathogens, yeasts, bacteria, virus and protozoa in water. The light bulb has a base style of four pin on a single end along with B28 lead wire and connector.

This UV-C bulb is compatible with germicidal UVC lamp with part number:

• ATS4-875

Many people are of the opinion that the replacement light bulb has a life of 12 months after which even though it may continue to emit light, it must be replaced. When water is exposed to UV light emitted from the bulb, it destroys germs that could possibly cause harmful bacteria and microorganismss such as organisms causing gastroenteritis, influenza virus, typhoid, hepatitis virus strains and Vibrio cholerae. Since UV filters do not introduce chemicals in the water and is a purely physical state, it is a far better option to chlorination and its by-products. Stay healthy and safe with Aqua Treatment Service ATS4-875 Replacement UVC Light Bulb.

Technical Specifications:

• Total Length: 34.45 inches (875mm)
• Lamp Quartz Diameter: 17.5mm
• Operating Current: 800mA
• Lamp Voltage: 110V
• Lamp Wattage: 84 Watts
• Output UVC Watts: 28 Watts
• Output uW/cm^2 @ 1m: 260
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

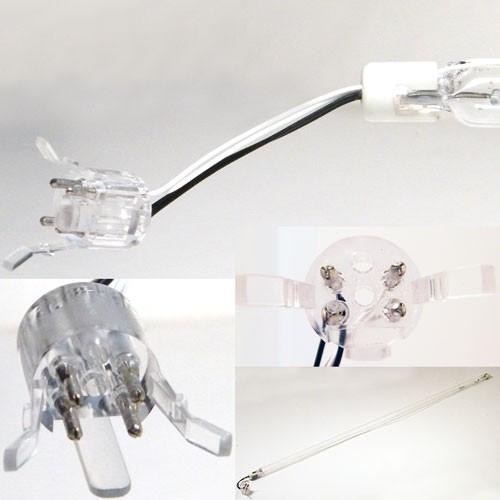

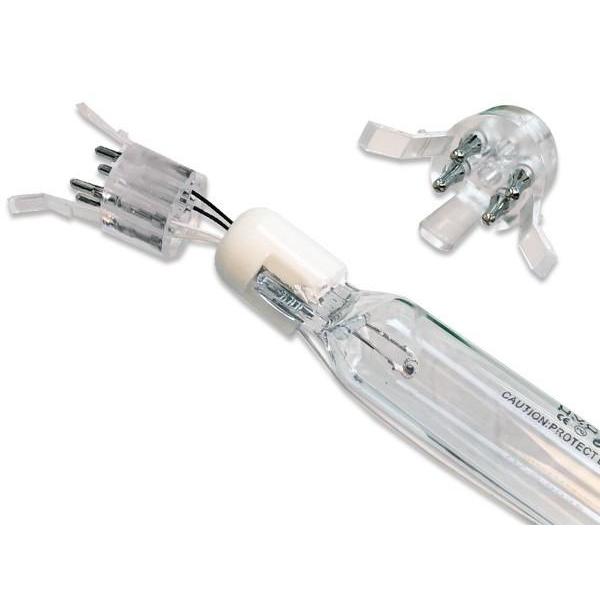

• Base Style: 4 pin on a single end with B28 lead wire and connector
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

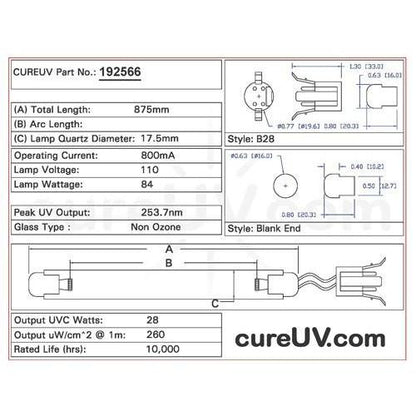

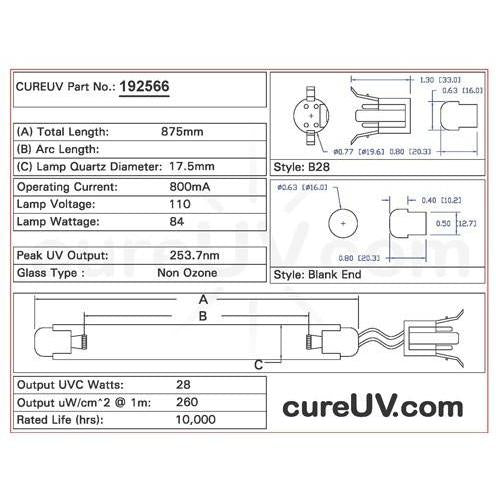

Drawing of Replacement UVC Bulb Item # 192566 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
