Aquafine 17491LM Replacement UVC Light Bulb

2 Pin Winged on a Single End - 40 Watt Germicidal Water Treatment Bulb

The Aquafine 17491lM Replacement UVC Light Bulb is a two pin winged on a single end bulb. The 40 Watt germicidal water treatment bulb has a total length of 33.46" and an arc length of 29.53". The UVC bulb has a lifespan of 10,000 hours and is a compatible replacement for the following models:

• CSL-24R
• RBE-4R
• RBE-6R
• RBE-12R
• RBE-24R

It is well-known that the UVC light technology is capable of destroying molds, bacteria, yeast, virus and protozoa. With the UVC method of water treatment, there are no chances of handling of chemicals and it does not need any specialized storage. With the UVC treatment of water, there is no change in odor, taste, chemistry and pH of water. Many prefer this method of water treatment as against chemicals and their byproducts. The UV light has a wavelength of 253.7 nm that is designed to kill microorganisms as harmful as E.coli, giardia and cryptosporidium. In the UV method of water purification, the UV rays passes through water and it alters the genetic composition of the microorganisms and renders them harmless.

CureUV recommends that you replace the UV bulb annually for better efficiency and protection. Ensure utmost safety when you replace with the Aquafine 17491lM Replacement UVC Light Bulb.

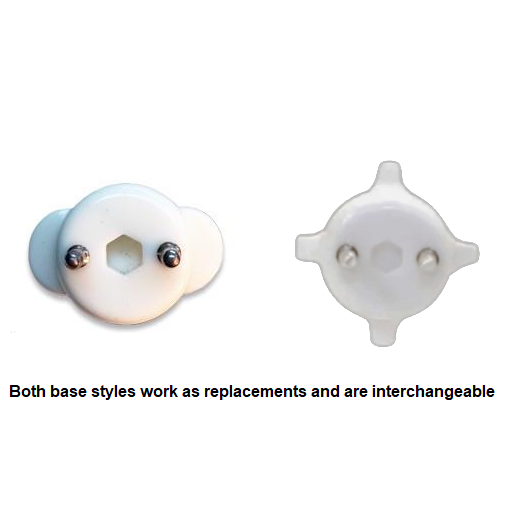

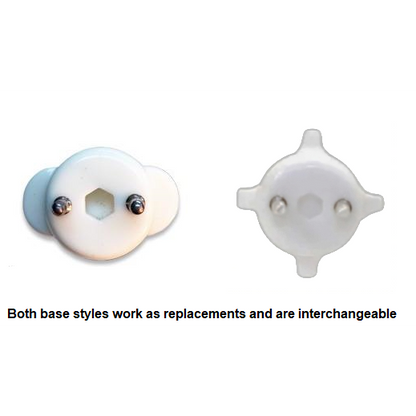

Important: Both base styles work as replacements and are interchangeable

Technical Specifications:

• Total Length: 33.46 inches (850mm)
• Arc Length: 29.53 inches (750mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 120V
• Lamp Wattage: 40 Watts
• Output UVC Watts: 16 Watts
• Output uW/cm^2 @ 1m: 150
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: Bi-Pin (2 pin) winged on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

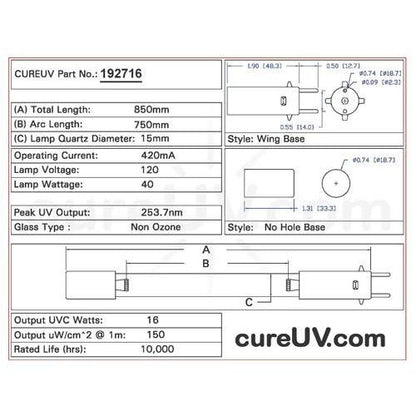

Drawing of Replacement UVC Bulb Item # 192716 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aquafine brand UVC bulbs. All Aquafine brand names, trademarks, and logos are property of Aquafine.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.



Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
