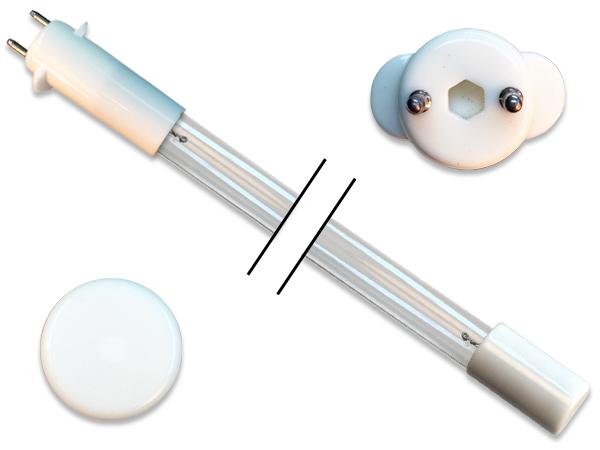

The Aquafine 18060 Replacement Germicidal UVC bulb is a 100% Equivalent Aquafine Water Treatment UV Lamp for Model 18060. The UVC bulb is a 130 Watt lamp bulb that is a bi-pin winged on a single end. The total length of the bulb is 61.69" and the arc length is 57.08". The UVC light bulb has a rated life of 10,000 hours after which CureUV highly recommends that you replace the lamp bulb even if it continues to emit light.
The UVC light bulb has a peak output of 253.7 nm that effectively destroys the genetics of the microorganisms rendering them harmless. Pathogens such as giardia and cryptosporidium can be effectively destroyed with this method of purification. These cost effective purifiers and their lamps do not make use of chemicals and their by-products. This method of water purification does not alter the pH, taste or chemistry of water.
Technical Specifications:
Total Length: 61.69 inches (1567mm)
Arc Length: 57.08 inches (1450mm)
Lamp Quartz Diameter: 15mm
Operating Current: 450mA
Lamp Voltage: 170V
Lamp Wattage: 75 Watts
Output UVC Watts: 54 Watts
Output uW/cm^2 @ 1m: 395
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: Bi-Pin (2 pin) winged on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours
Common Applications
Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
