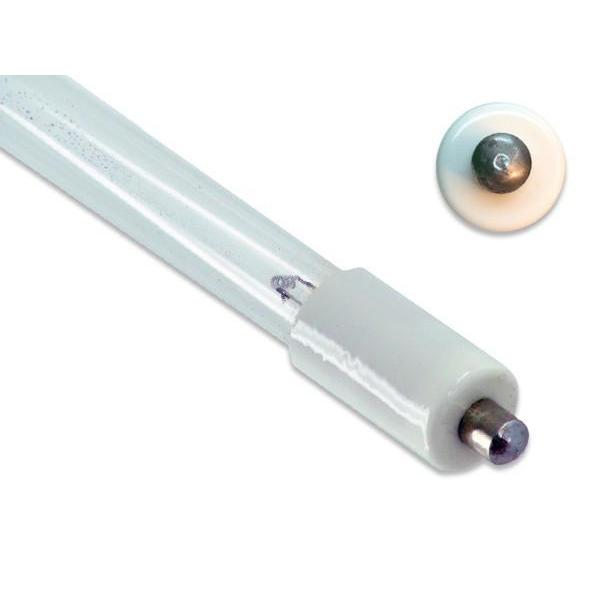

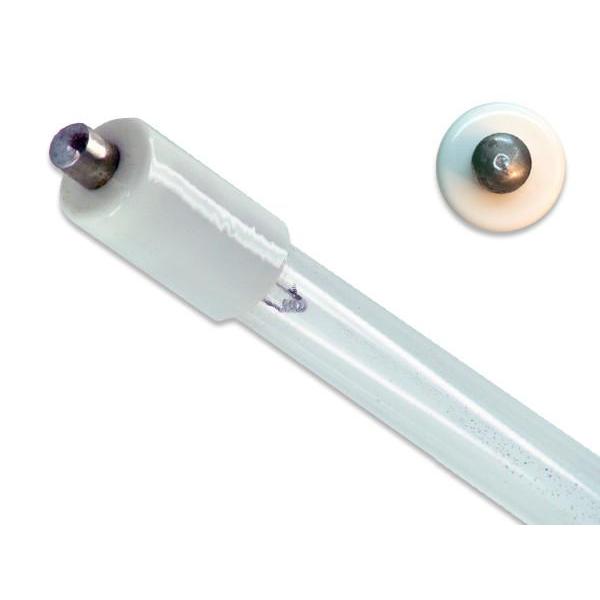

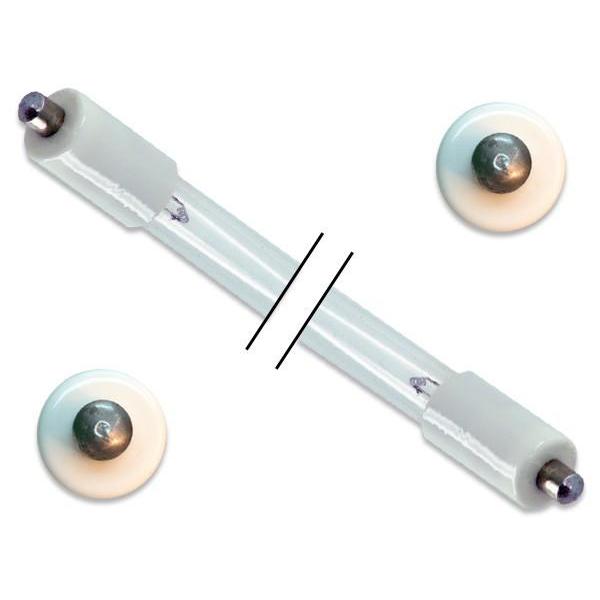

Aquafine 3050 Replacement UVC Light Bulb

Single Pin Double Ended - 16 Watt Germicidal Water Treatment Bulb

Our Aquafine 3050 Replacement UVC Light Bulb is a 16 Watt germicidal water treatment bulb that has a total length of 14.06" and an arc length of 11.02". The water treatment bulb has a single pin double ended base style and can work efficiently for around 9000 hours. The UVC bulb works well for the following system models:

• DW-300
• SL-10A

The UVC light bulb helps in sterilizing and killing yeasts, bacteria, protozoa and virus. Many people prefer the UV method of water treatment as it makes use of UV light at a designated wavelength to disrupt the DNA of microorganisms. The light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers and sanitizers and is capable of destroying 99.9% harmful organisms in water. This method may effectively help in destroying the genetics of microorganisms but may not alter the pH, taste or chemistry of water in the process. This method is a good option against chemicals such as chlorine and their byproducts. The replacement UVC bulb provides 12 months worry-free operation after which its germ destroying capabilities reduces. Replace your UV system annually with Aquafine 3050 Replacement UVC Light Bulb.

Technical Specifications:

• Total Length: 14.06 inches (357mm)
• Arc Length: 11.02 inches (280mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Voltage: 50V
• Lamp Wattage: 16 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: Single pin double ended
• Base Material: Ceramic
• Rated Life: Up to 9,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

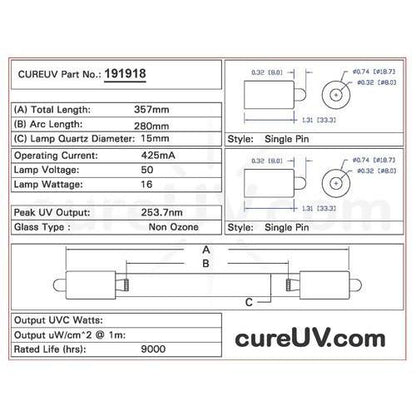

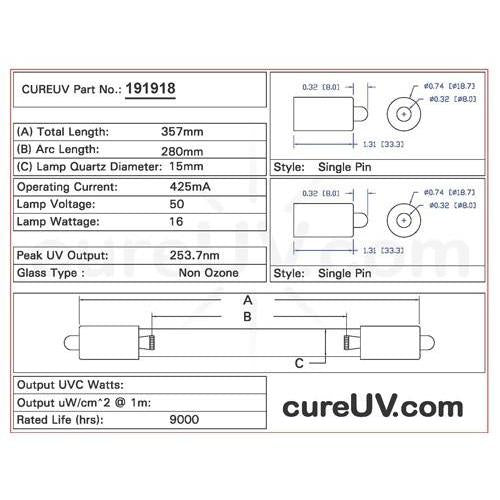

Drawing of Replacement UVC Bulb Item # 191918 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*This product is a substitute item for old CureUV product item #: 191919, 191920

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aquafine brand UVC bulbs. All Aquafine brand names, trademarks, and logos are property of Aquafine.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
