Atlantic Ultraviolet Authentic Replacement 05-1097-R UVC Light Bulb

Miniature 2 Pin Double Ended - 24 Watt Germicidal Water Treatment Bulb

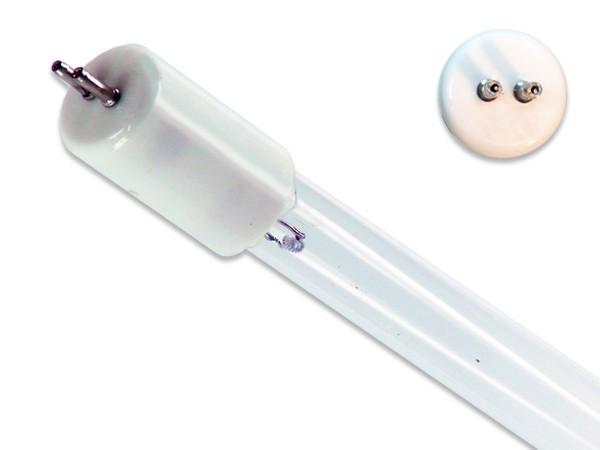

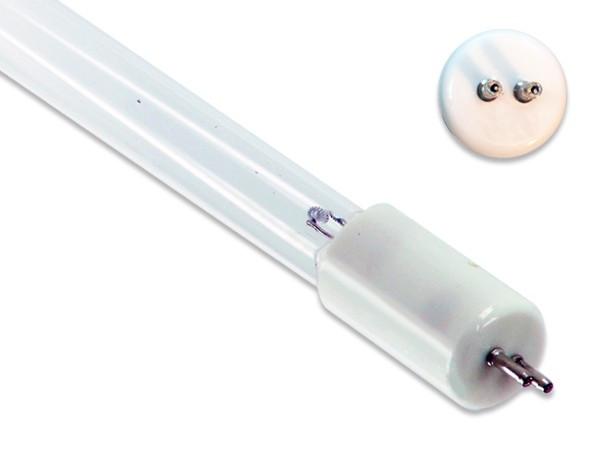

The Atlantic Ultraviolet 05-1097-R Authentic Replacement UVC Light Bulb is a miniature two-pin double-ended water treatment bulb that has a total length of 17.17". The 24 Watt water treatment bulb has a ceramic base material and can last for up to 10,000 hours. The replacement UVC bulb is complete with the following models and their part numbers:

Atlantic Ultraviolet Part Number:

• 05-1097-R
• Crystal Clear CMP22

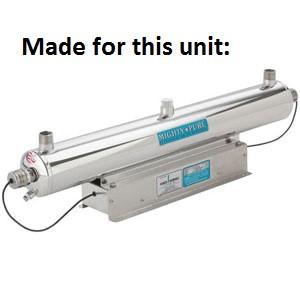

Atlantic Ultraviolet System Model:

• Mighty-Pure MP22
• Mighty-Pure MP22A
• Sanitron S23
• Sanitron S23A

The ultraviolet filter is a highly effective method of destroying pathogens such as viruses, bacteria, protozoa, and cysts. These UV lamps and bulbs from Atlantic Ultraviolet produce a high quantity of UV light at a wavelength of 253.7nm that is capable of destroying organisms without altering the composition, taste, and pH of water. Unlike chemicals, UV purification is considered safe for human consumption. Tested and certified by experts, the original Atlantic Ultraviolet UV-C lamp from CureUV is an effective way to treat water. We recommend replacing the Atlantic Ultraviolet 05-1097-R UVC Light Bulb annually to ensure the best ultraviolet performance output for your UVC system.

Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection.

With UVC light technology, you can effectively destroy pathogens such as bacteria, viruses, molds, and yeasts.

If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking-Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specifications:

• Total Length: 17.17 inches (436mm)
• Arc Length: 14.17 inches (360mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 370mA
• Lamp Voltage: 67V
• Lamp Wattage: 24 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone

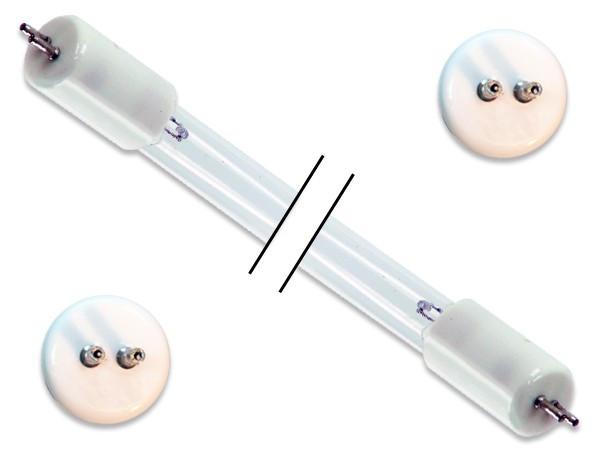

• Base Style: Miniature Bi-Pin (2 pin) double-ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

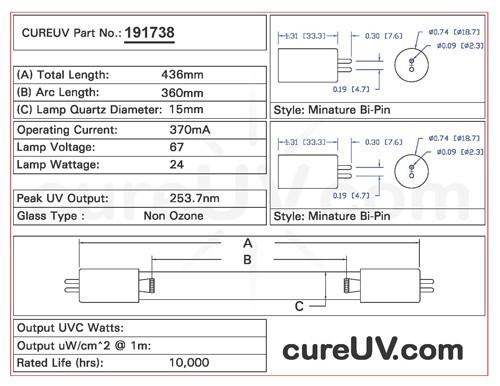

Drawing of Replacement UVC Bulb Item # 191738-AU (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
