Atlantic Ultraviolet Authentic Replacement 05-1119-R UVC Light Bulb

4 Pin on a Single End - 10 Watt Germicidal Water Treatment Bulb

The Atlantic Ultraviolet 05-1119-R Authentic Replacement UVC Light Bulb is a four-pin on a single end 10 Watt germicidal water treatment bulb that works for the following system models:

• Minipure MIN-1

The UVC lamp bulb works to kill bacteria, molds, viruses, yeast, and protozoa in the water. The bulb is capable of emitting a UV output of 253.7 nm that alters the genetics of the microorganisms and makes them harmless. The replacement light bulb provides a twelve months worry-free operation after which we recommend that you replace the light bulb even if it continues to emit light. There are studies that show that the UV water purification system can effectively destroy 99.9% of microorganisms in water. The UVC light bulb is a much better option for chemicals and their byproducts usually associated with the chlorination of water. Many people also believe that this system provides a safe solution against microorganisms such as cryptosporidium and giardia that are resistant to chlorine. What's more, the UV system is an environmentally friendly alternative to chlorine disinfection.

Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection.

If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.

Technical Specifications:

• Total Length: 8.35 inches (212mm)
• Arc Length: 5.51 inches (140mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Voltage: 30V
• Lamp Wattage: 10 Watts
• Output UVC Watts: 2.7 Watts
• Output uW/cm^2 @ 1m: 26
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications:

• Aquaculture
• Beverage Services and Processing
• Drinking-Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

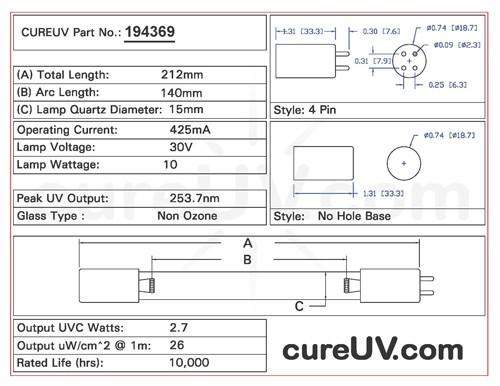

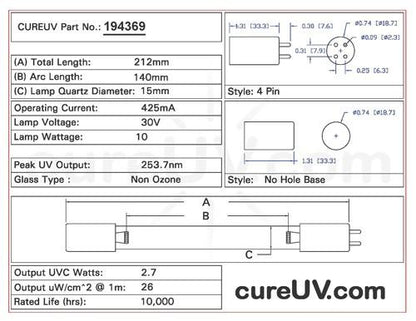

Drawing of Replacement UVC Bulb Item # 194369-AU

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
