Atlantic Ultraviolet Authentic Replacement 05-1352-R UVC Light Bulb
|
SKU: |
|
Single Pin Double Ended - 32 Watt Germicidal Air & Surface Treatment Bulb
The Atlantic Ultraviolet 05-1352-R UV Authentic Light Bulb is 32 watts and was originally designed for germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers.
This UVC bulb is an authentic Atlantic Ultraviolet item but we also carry a generic equivalent for use with the models below:
AeroLogic
- AD30
- AD30-2
UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:
- Bacteria
- Molds
- Protozoa
- Viruses
- Yeasts
12-month worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb, but it quickly diminishes its germ-killing ability. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.
This replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for applications that require UV-C intensity.
Ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp undergoes 100% quality control inspection.
If you would like a generic equivalent replacement in order to save money, you can find it by clicking here. Generic replacements ensure 100% compatibility and effectiveness.
Common Applications for use:- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Surface Disinfection
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Offices
- Ships
Technical Specifications:
- Total Length: 27.17 inches (690mm)
- Arc Length: 23.62 inches (600mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 425mA
- Lamp Wattage: 32 Watts
- Output UVC Watts: 11 Watts
- Output uW/cm^2 @ 1m: 95
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: Single pin double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Spectral Output of Germicidal UVC Light Bulbs

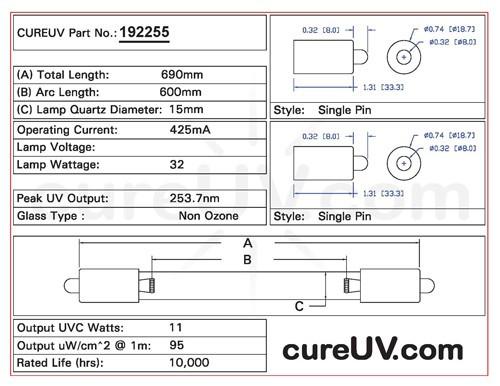

Drawing of Replacement UVC Bulb Item # 192255-AU
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
-
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
