Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb
Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb Germicidal UV Bulbs - Clean Water Systems GPH287T5L Replacement UVC Light Bulb

Clean Water Systems GPH287T5L Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$28.99

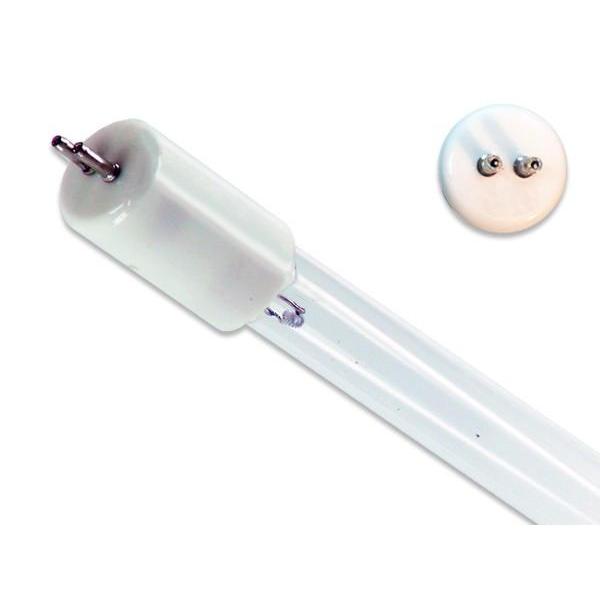

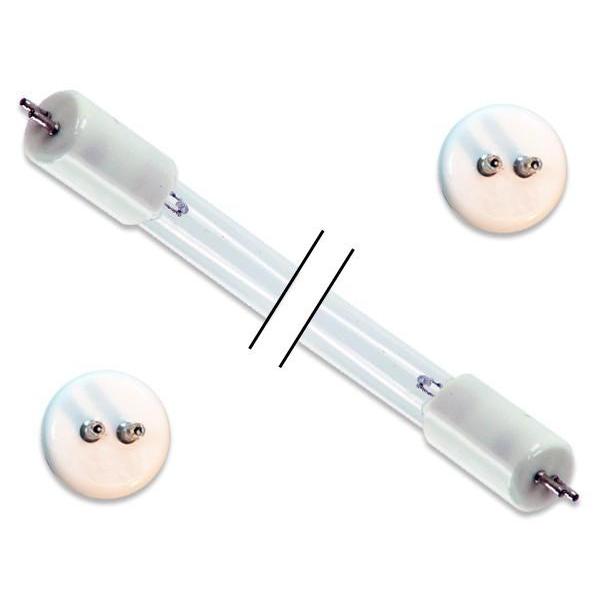

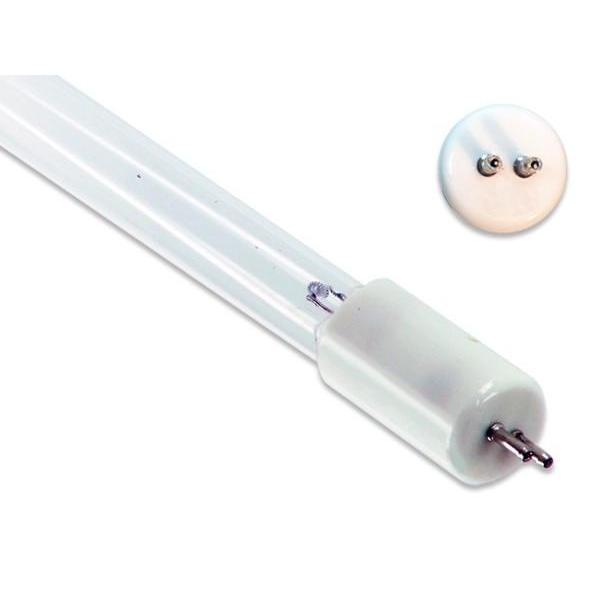

Miniature 2 Pin Double Ended - 14 Watt Germicidal Water Treatment Bulb

The Clean Water Systems GPH287T5L Replacement UVC Light Bulb is a miniature two pin double ended bulb that has lamp wattage of 14 Watts and an arc length of 7.87". With the base material ceramic and a rated life of 10,000 hours, the UVC light bulb is built using non ozone glass type.

The UVC bulb is compatible with the following lamp models and their lamp parts:

  • C1
  • C1A
  • CR1
  • CR2
  • CR5X

The UVC lamp bulb helps in sterilizing and killing 99.9% microorganisms in the water and is an effective treatment against bacteria, molds, protozoa, virus and yeast. The light bulb gives you a tension-free germ sterilizing property for twelve months after which we recommend that you replace the lamp bulb even if it continues to emit light.

Technical Specifications:

  • Total Length: 11.3 inches (287mm)
  • Arc Length: 7.87 inches (200mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 40V
  • Lamp Wattage: 14 Watts
  • Output UVC Watts: 4 Watts
  • Output uW/cm^2 @ 1m: 40
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Miniature Bi-Pin (2 pin) double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194667 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

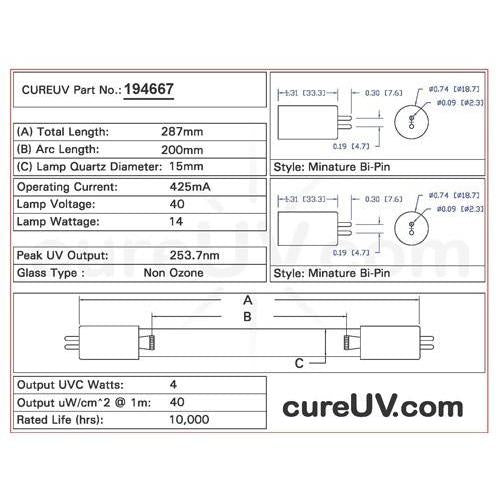

Drawing of Clean Water Systems GPH287T5L UVC Bulb - item # 194667

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Clean Water Systems brand UVC bulbs. All Clean Water Systems brand names, trademarks, and logos are property of Clean Water Systems.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
