ColorSpan 5400 UV Curing Bulb - CureUV Brand

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 5 Inch Arc Length

Our CureUV brand Replacement UV Curing Lamp Bulb for ColorSpan 5400 is a UV light bulb that is a compatible replacement lamp that exceeds OEM standards of UV curing.

The curing lamp has an overall length of 105mm and a tube diameter of 16.3mm and is considered one of the high quality and highly effective UV emitters in the market. The lamp works well to dry and cure inks and coating in signs and graphics. The lamp is filled with iron metal halide and contains a quartz plate that prevents debris from falling on the lamp by working as filler between the lamp and the curing system.

Used extensively in the printing industry to cure inks and coatings, the UV lamps resist smudges. It is environmental friendly as there is no process of solvent evaporation as conventional drying methods need. The result is higher printing quality, greater productivity and lower production costs.

Equipment Model(s):

• 5400

Replacement For Lamp(s):

• ColorSpan 5400
• ColorSpan 5445
• ColorSpan 5460
• ColorSpan 5465
• HP 5500
• HP SCITEX FB500
• HP SCITEX FB700
• HP SCITEX FB750
• HP SCITEX FB950
• HP DESIGNJET H35100
• HP DESIGNJET H35500
• HP DESIGNJET 45100
• HP DESIGNJET H45500
• Dymax 2000EC

Technical Specifications:

• Fill: Iron Metal-Halide
• Quartz: Standard
• Total Length: 105mm
• Tube Diameter: 16.3mm
• Wattage Per Inch: 400 WPI


Ultraviolet (UV) Spectral Output - Iron Metal-Halide Lamp (PDF)

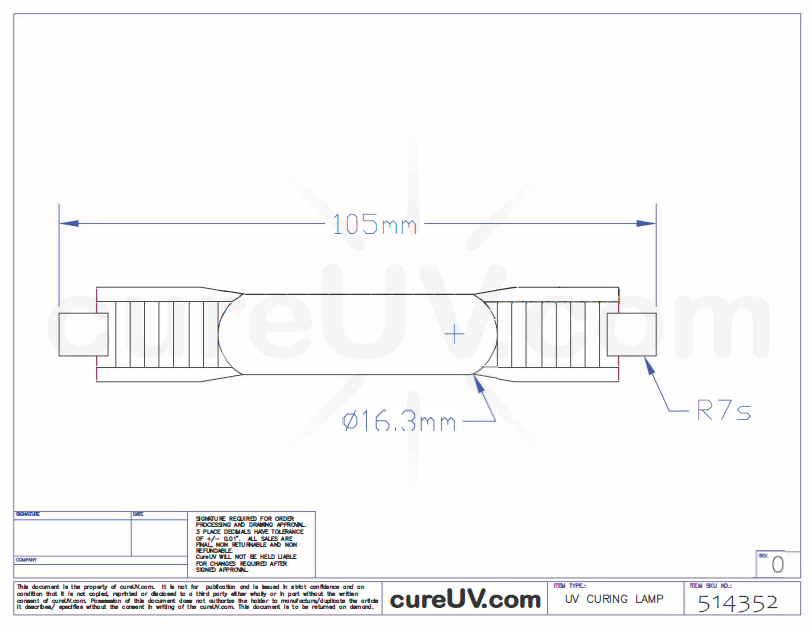

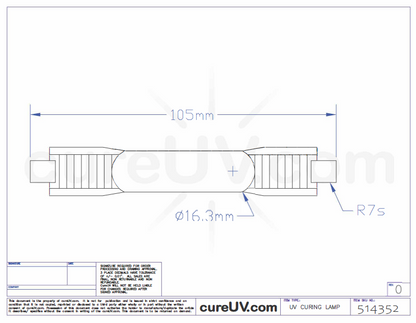

ColorSpan 5400 UV Lamp - Drawing (PDF)

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell ColorSpan brand UV lamps. All ColorSpan brand names, trademarks and logos are property of ColorSpan.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
