Culligan C231924 Replacement UVC Light Bulb

4 Pin on a Single End - Cold Cathode - 12.5 Watt Germicidal Water Treatment Bulb

The Culligan C231924 Replacement UVC Light Bulb has a total length of 8.35" and a base style of 4 pin on a single end. The light bulb has a base ceramic material and a rated life of 10,000 hours. The UVC light bulb has a peak UV output of 253.7nm and is a compatible replacement to use with the following UV-C system models:

• 01017267
• LAHV90

With a lamp wattage of 12.5 Watts, the UVC light technology in the light bulb helps in killing microorganisms such as bacteria, molds, virus, yeast, and protozoa. The light bulb has a germ sterilizing property that works well for twelve months after which we recommend that you replace the bulb for better efficiency.

The light bulb works for the following common applications:

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specifications:

• Total Length: 8.35 inches (212mm)
• Lamp Quartz Diameter: 15mm
• Lamp Wattage: 12.5 Watts
• Peak UV Output: 253.7nm
• Glass Type: Ozone/Cold Cathode
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

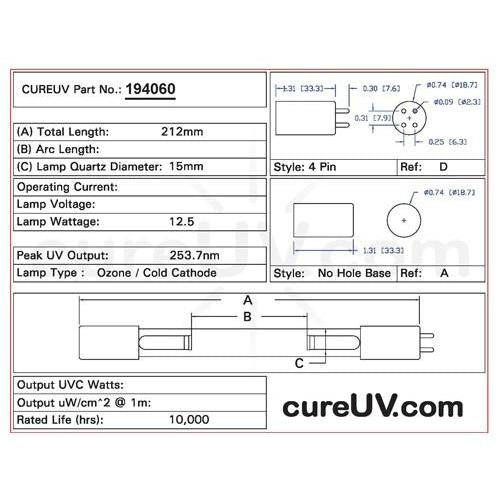

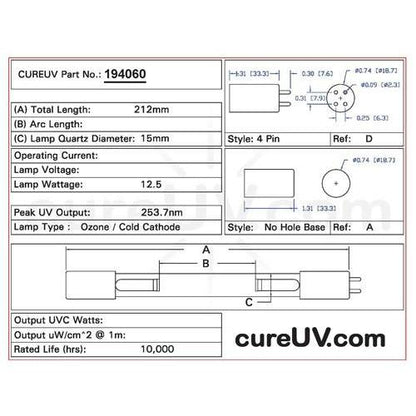

Drawing of Replacement UVC Bulb Item # 194060 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs Ozone (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Culligan brand UVC bulbs. All Culligan brand names, trademarks, and logos are property of Culligan.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
