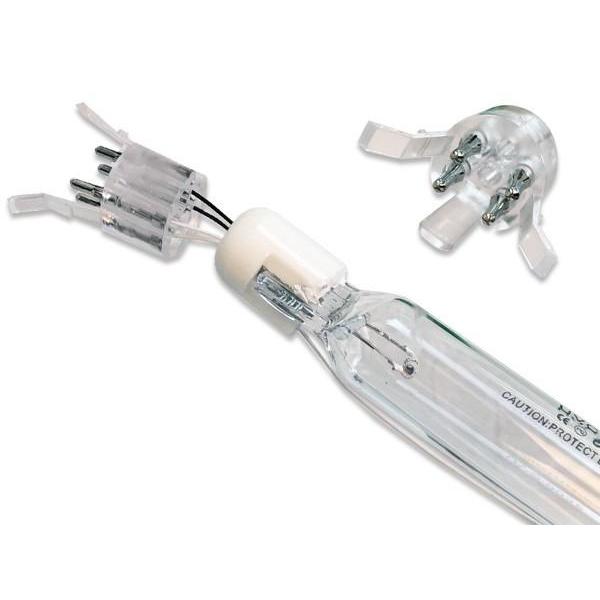

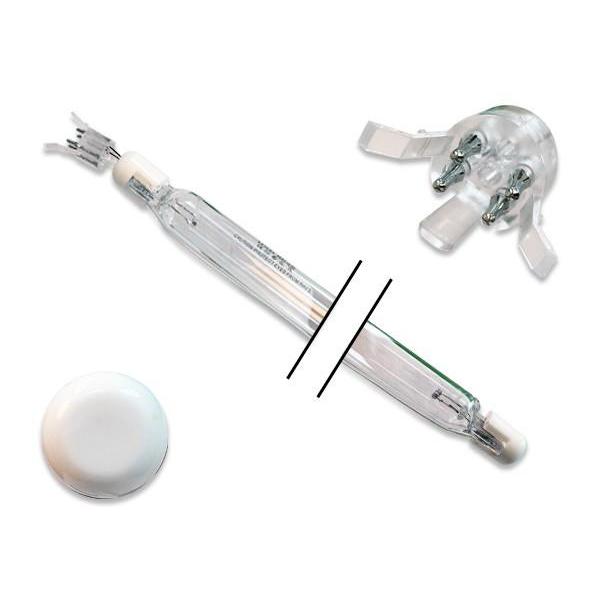

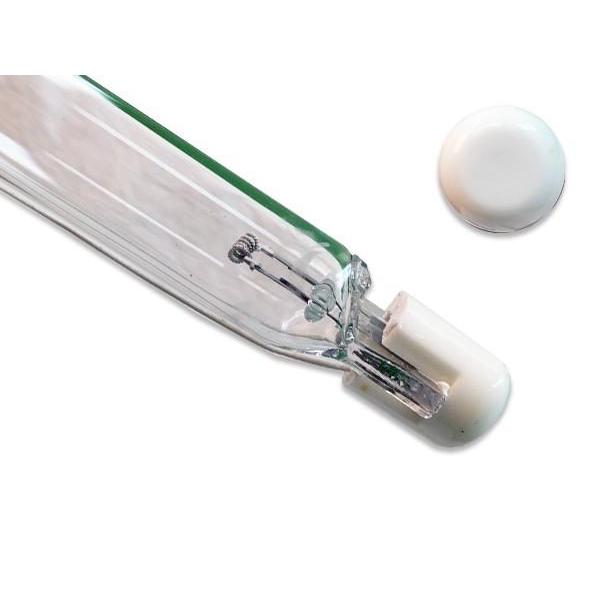

Culligan NLR1845 Replacement UVC Light Bulb

4 Pin on a Single End - B28 Lead Wire with Connector - 40 Watt Germicidal Water Treatment Bulb

Our Culligan NLR1845 Replacement UVC Light Bulb is a four pin on a single end lamp bulb that comes with B28 lead wire with a connector. The 40 Watt germicidal water treatment bulb has a total length of 20.67" and runs on lamp wattage of 40 Watt. Made using ceramic as the base material, the UVC lamp bulb has a rated life of 10,000 hours after which it is recommended to change the lamp bulb even if it continues to emit light. The UVC lamp bulb is compatible with the following UVC system models:

• AQ37086
• Aquada 2
• Aquada 4

The UVC lamp technology helps in sterilizing and killing 99.9% microorganisms present in water. With a twelve months worry-free operation, the light bulb is a guaranteed and quality-tested product from CureUV. It works well with germicidal OEM water disinfection filters, UV sanitizers, and ultraviolet water purifiers.

Technical Specifications:

• Total Length: 20.67 inches (525mm)
• Lamp Quartz Diameter: 17.5mm
• Operating Current: 700mA
• Lamp Voltage: 58V
• Lamp Wattage: 40 Watts
• Output UVC Watts: 15 Watts
• Output uW/cm^2 @ 1m: 135
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end with B28 lead wire and connector
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

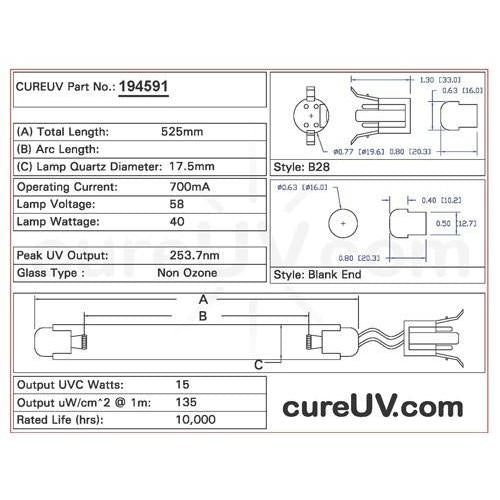

Drawing of Replacement UVC Bulb Item # 194591 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Culligan brand UVC bulbs. All Culligan brand names, trademarks, and logos are property of Culligan.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
