Culligan NLR1880 Replacement UVC Light Bulb

4 Pin on a Single End - B28 Lead Wire with Connector - 84 Watt Germicidal Water Treatment Bulb

The Culligan NLR1880 Replacement UVC Light Bulb is an effective germicidal water treatment bulb that comes with four pin on a single end and has a B28 lead wire with connector. The lamp has a total length of 34.45" and has lamp wattage of 84 Watts. With non-ozone glass type, the germicidal UVC lamp bulb has a ceramic base material and a rated life of 10,000 hours. The UVC lamp bulb is a compatible replacement for the following system models:

• AQ37087
• Aquada 7
• Aquada 10

The light bulb helps in sterilizing 99.9% germs such as bacteria, molds, virus, yeast and protozoa. Many people are of the opinion that the replacement light bulb comes with a life of 12 months after which even though the bulb may continue to emit light, it must be replaced. When water is exposed to UV light emitted from the bulb, it destroys germs that could possibly cause harmful bacteria and microorganismss such as organisms causing gastroenteritis, influenza virus, typhoid, hepatitis virus strains and Vibrio cholerae. Since UV filters do not introduce chemicals in the water and is a purely physical state, it is a far better option to chlorination and its by-products. Stay healthy and safe with Culligan NLR1880 Replacement UVC Light Bulb.

Technical Specifications:

• Total Length: 34.45 inches (875mm)
• Lamp Quartz Diameter: 17.5mm
• Operating Current: 800mA
• Lamp Voltage: 110V
• Lamp Wattage: 84 Watts
• Output UVC Watts: 28 Watts
• Output uW/cm^2 @ 1m: 260
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

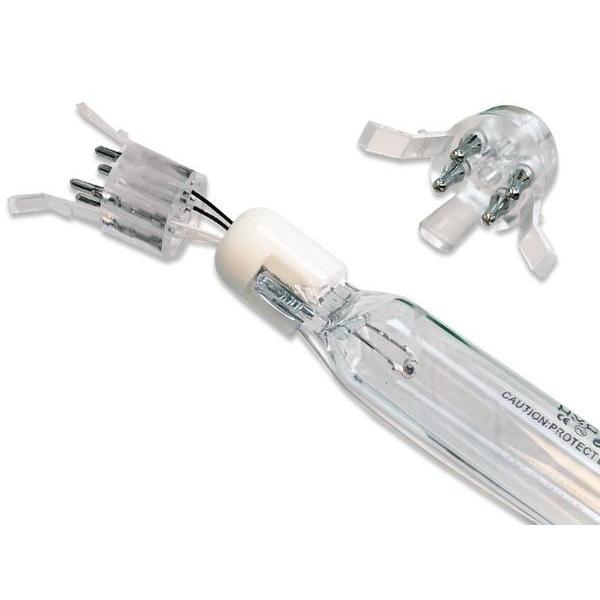

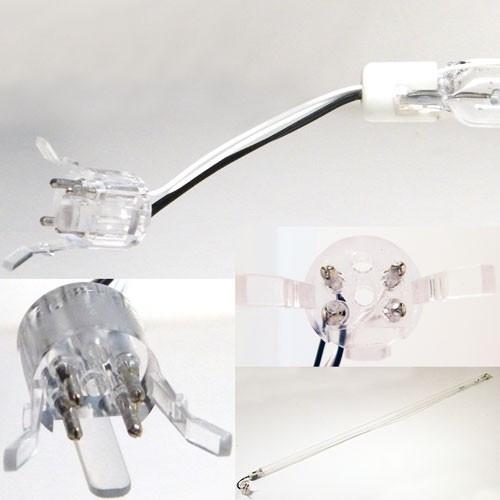

• Base Style: 4 pin on a single end with B28 lead wire and connector
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

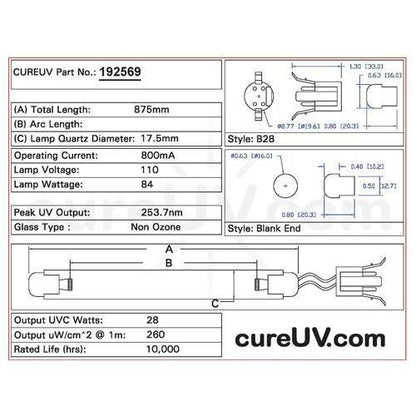

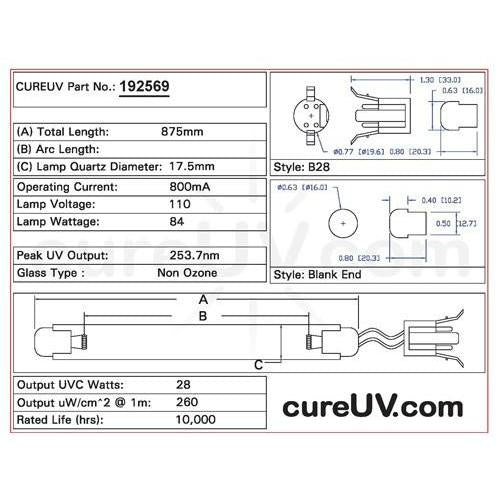

Drawing of Replacement UVC Bulb Item # 192569 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Culligan brand UVC bulbs. All Culligan brand names, trademarks, and logos are property of Culligan.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
