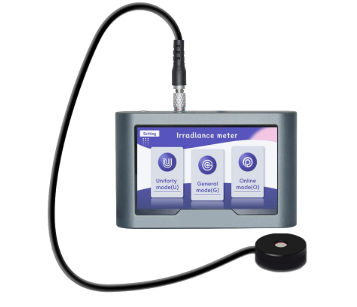

CureUV 280E UV Radiometer Touch Screen
|
SKU: |
|
The CureUV 280E UV Radiometer Touch Screen features a high-definition full touchscreen design for easy operation. It provides accurate readings even in low light conditions and offers the ability to switch between measurement modes in real time. With automatic recognition of measurement ranges, it allows for comprehensive testing of surface light sources and evaluation of uniformity. This versatile instrument can quickly and accurately measure UV irradiance for various industries, such as photocuring, photolithography, phototherapy, and more. It is divided into a main unit and probe, allowing for flexibility in usage scenarios. Perfect for laboratories, factories, and on-site operations, it is a valuable tool for achieving precise ultraviolet intensity and energy measurements in quality control.
General mode + Online mode
Characteristics:
- 4.3 in touch screen. Making the operation easier and the display more intuitive.
- Using high-precision light receiver, low light and strong light can be tested in one machine.
- Ultra-large range, the range change can be as high as 1 billion.
- Real-time monitoring of irradiance/temperature and over-limit alarm function.
- Intelligent range selection. CureUV 280E UV Radiometer Touch Screen can automatically switch the range according to the intensity of the light source.
- One machine has multiple uses. The same host can be used with different
receivers according to different light sources. - Built-in high-precision temperature sensor, which can measure the actual
temperature in real time during the dynamic test of the CureUV 280 Max UV Radiometer Touch Screen. - It has a built-in timer that can accurately record the measurement time.
- It can save 30 sets of test data, and the stored data can be read through PC software and exported.
The CureUV 280E UV Radiometer Touch Screen offers an array of probe options, Expertly designed to meet a multitude of measurement requirements. Every probe is carefully constructed to guarantee superior functionality and dependability across a range of uses.
CureUV Probe
Specifications :
| Power Range: | 0.1uw/cm²-100,000 mw/cm² (automatically switches units according to light source intensity) |
| Energy Range: | 0.1uj/cm²- 999999999.9 mj/cm² |
| Power Unit: | uw/cm², mw/cm², w/cm², w/m² (can be switched automatically/manually) |
| Energy Unit: | uj/cm², mj/cm², j/cm², j/m² (automatic/manual switching) |
| Resolution: | 0.1 |
| Temperature Measurement Range: | -67°F - -193°F , ±32.9°F |
| Responding Speed: | 2048 times/second |
| Screen Refresh Speed: | 10 times/second |
| Operation Method: | 4.3 in touch screen |
| Battery: | 3000mAh lithium battery. Capable of providing up to 10 hours of continuous use |
| Automatic shut-down: | Automatic shutdown after 3 minutes of no sensing or operation (does not take effect when charging) |
| Operation Prompt Sound: | Yes (can be turned off) |
| Working Environment: | -4°F - -76°F, humidity less than 85%, no condensation |
| Size: | 5*3.30*1.22 in (L*W*H） |
| Mode Selection: | Uniformity mode, normal mode, online mode |
| Communication Method: | USB/RS48 communication |
Probe parameters:
| Probe size: | 1.49*0.55 in |
| Photosensitive hole diameter: | 0.31 in |
| Operating temperature: | -4°F - -184°F |
| Probe material: | Aluminum |
| Cable length : | 39.3 in |
Probe selection:
|
CureUV Probe 222 (UVC-Short Wave) Wavelength range: 200-230nm Peak wavelength: 222nm |
CureUV Probe 254 (UVC) Wavelength range: 230-280nm Peak wavelength: 254nm |
|
CureUV Probe 275 (UVC-LED) Wavelength range: 260-280nm Peak wavelength: 275nm |
CureUV Probe 297 (UVB) Wavelength range: 280-330nm Peak wavelength: 297nm |
|
CureUV Probe 313 (UVB-Xenon Lamp) Wavelength range: 303-323nm Peak wavelength: 313nm |
CureUV Probe 340 (UVA-Xenon Lamp) Wavelength range: 330-350nm Peak wavelength: 340nm |
|
CureUV Probe 365 (UVA) Wavelength range: 320-400nm Peak wavelength: 365nm |
CureUV Probe 395 (UVA-LED) Wavelength range: 340-420nm Peak wavelength: 395nm |
|
CureUV Probe 510 (UV FULL) Wavelength range: 250-410nm Peak wavelength: 365nm |
CureUV Probe 420 (Blue Light) Wavelength range: 400-480nm Peak wavelength: 450nm |
If you have any questions or are just unsure about anything feel free to reach out at sales@cureuv.com or call us at (561) 243-8442.
