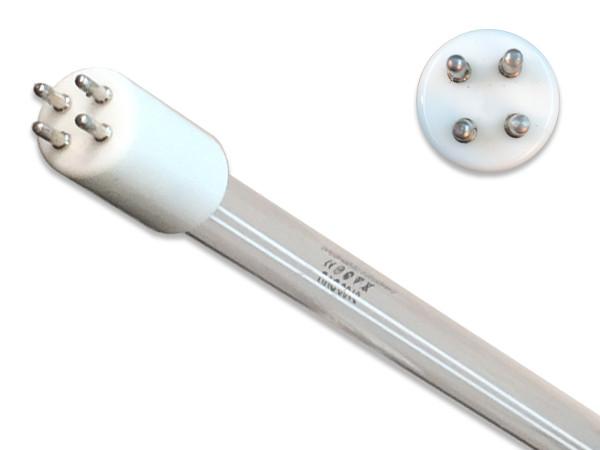

CureUV Brand UVC Bulb for Safe Water Technologies BL1L-100

4 Pin on a Single End - 39 Watt Germicidal UVC Bulb

Our CureUV brand Replacement UVC Light Bulb for Safe Water Technologies BL1L-100 is a 39-watt germicidal water treatment bulb. With 4 pins on a single end, this germicidal UVC light bulb features a peak UV output of 253.7nm. This wavelength region comes under maximum germicidal effectiveness and is highly fatal to microorganisms such as bacteria, viruses, protozoa, and other pathogens.

UVC light technology works to kill and sanitize 99.9% of microorganisms and the short wavelength of 253.7nm helps in deactivating the genetic makeup of the microorganisms and renders them incapable of reproduction. The UVC light bulb offers you healthy water by eliminating microorganisms, bacteria, viruses, yeast, and other pathogens from water. Pathogens such as giardia and cryptosporidium can be effectively destroyed with this method of purification. These cost-effective purifiers and their lamps do not make use of chemicals and their by-products. This does not alter the pH, taste or chemistry of water. With the CureUV Brand UVC Bulb, you can always be sure that your water is clean and safe.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

• Total Length: 31.89 inches (810mm)
• Arc Length: 28.74 inches (730mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 39 Watts
• Output UVC Watts: 13.8 Watts
• Output uW/cm^2 @ 1m: 130
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Bulb Shape: T5
• Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Replacement UVC Bulb Item # 510861 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Note: CureUV brand products are 100% compatible with the original equipment.

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Safe Water Technologies brand UVC bulbs. All Safe Water Technologies brand names, trademarks, and logos are property of Safe Water Technologies.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
