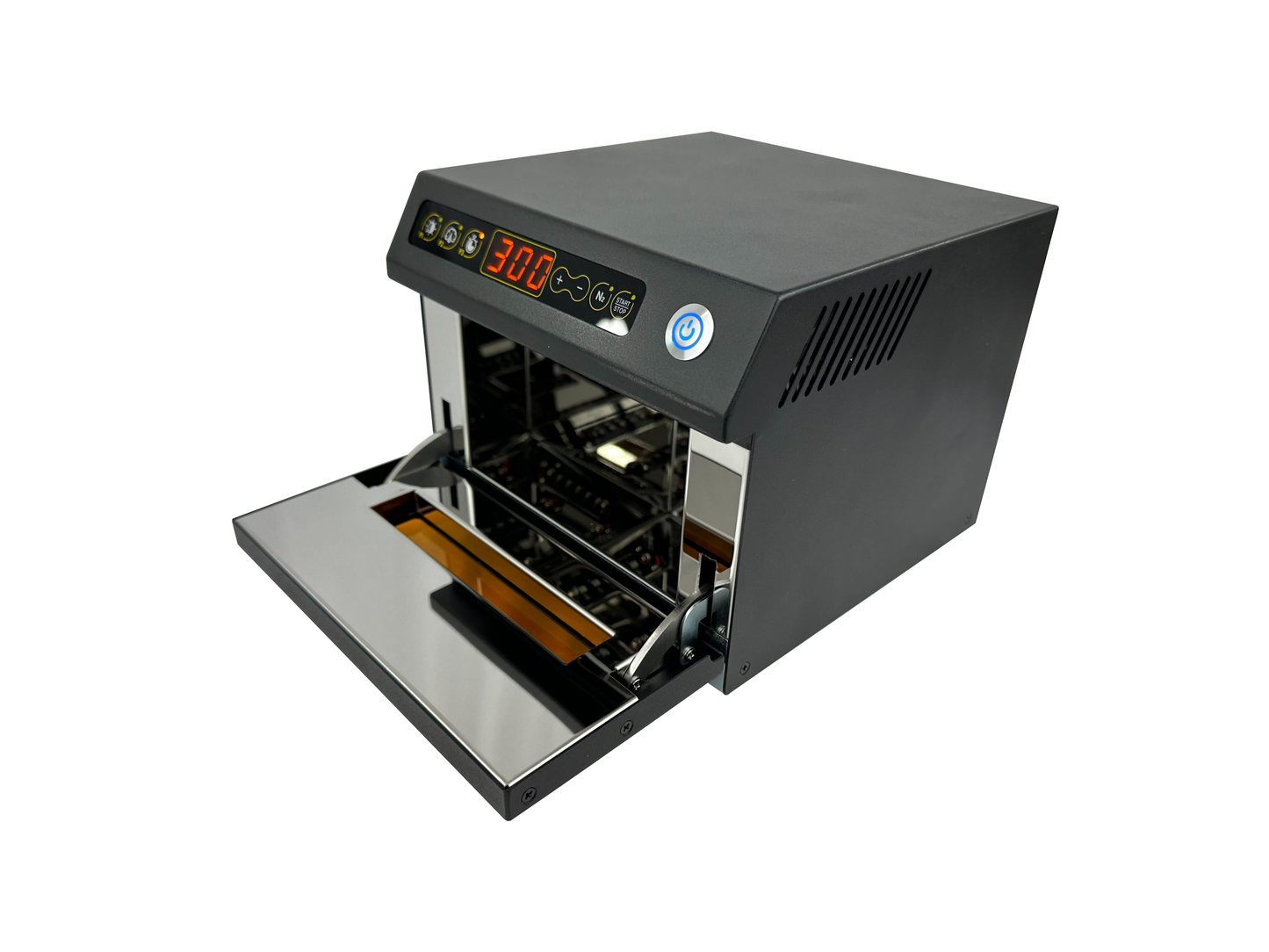

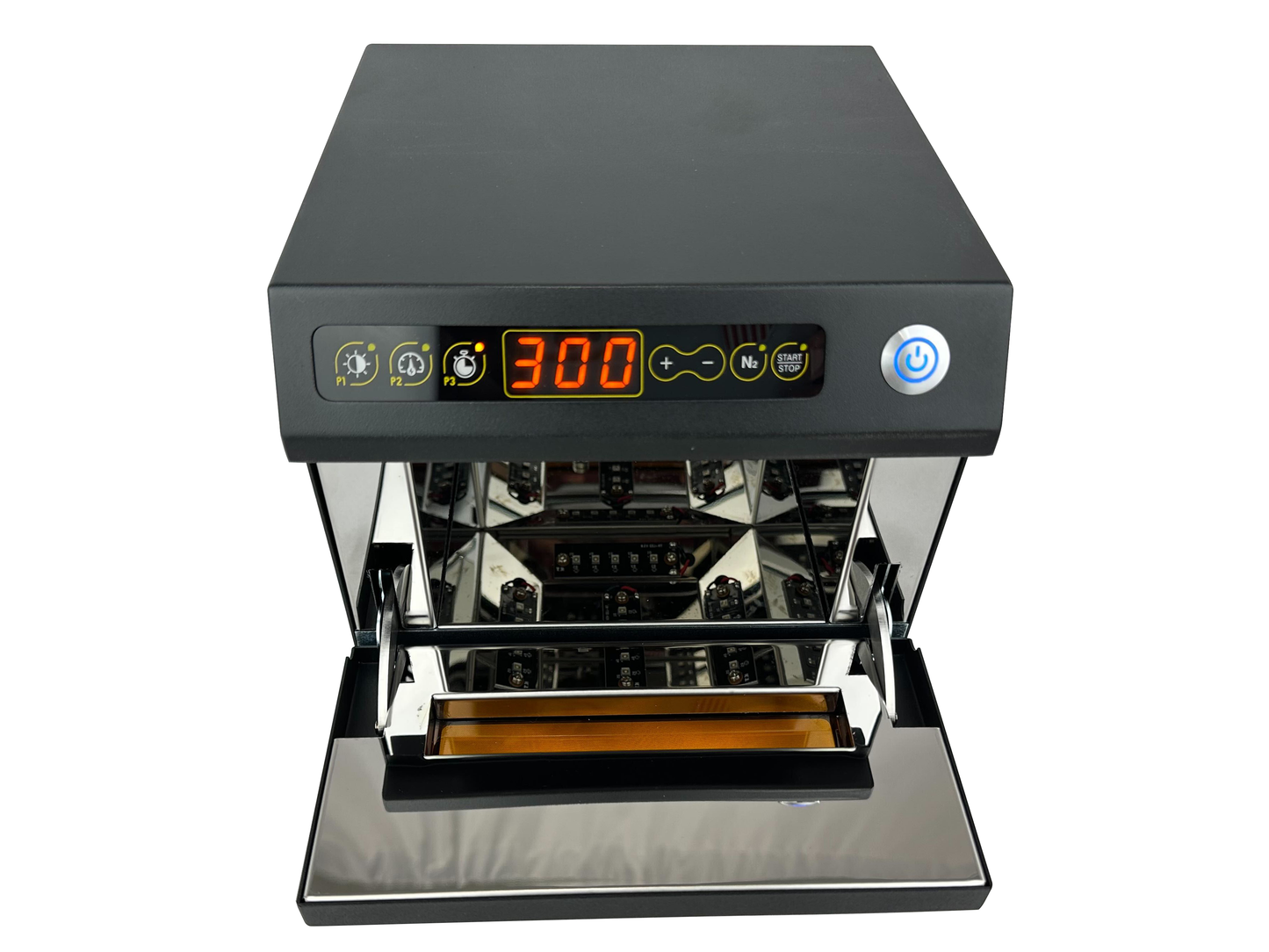

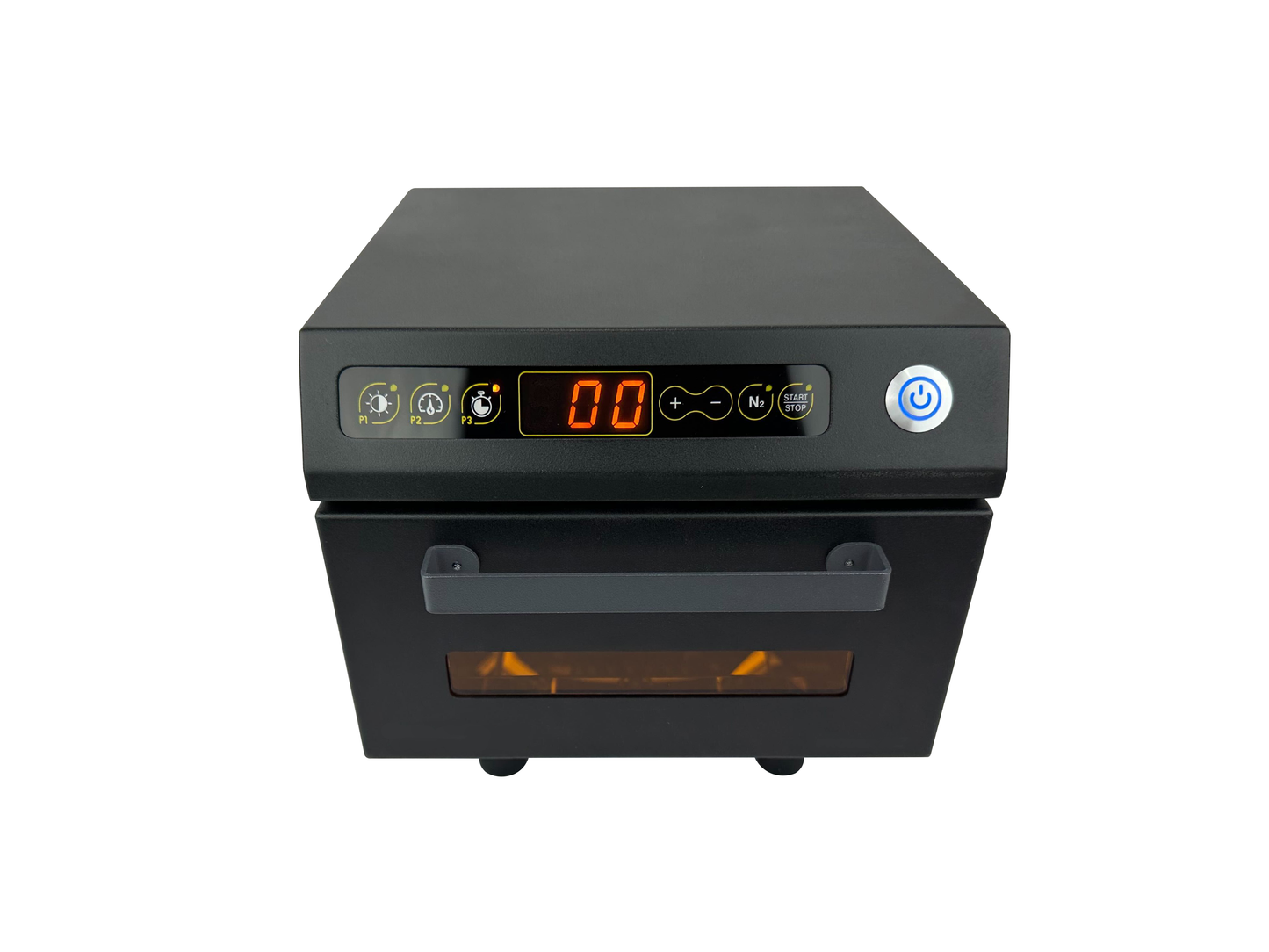

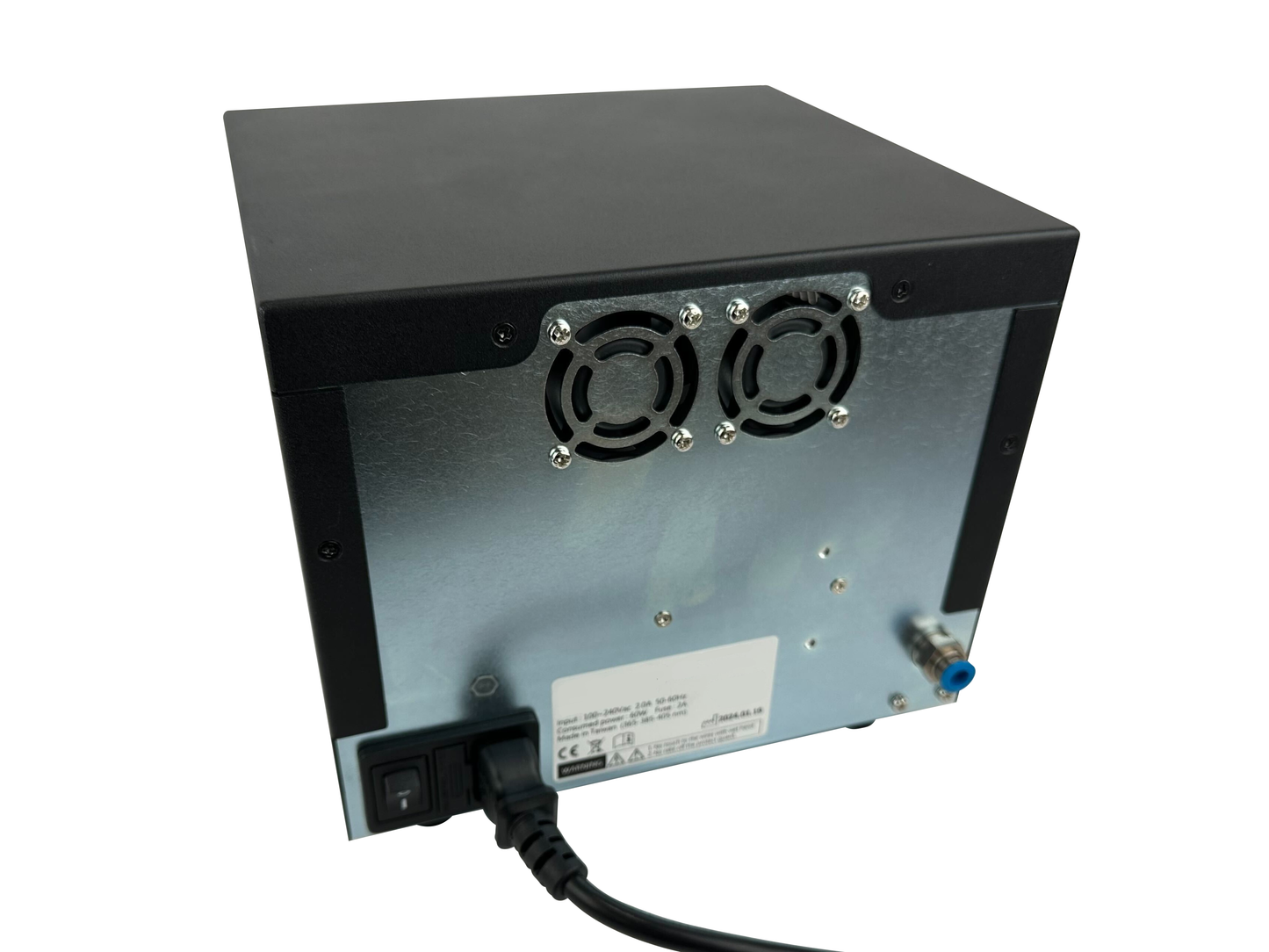

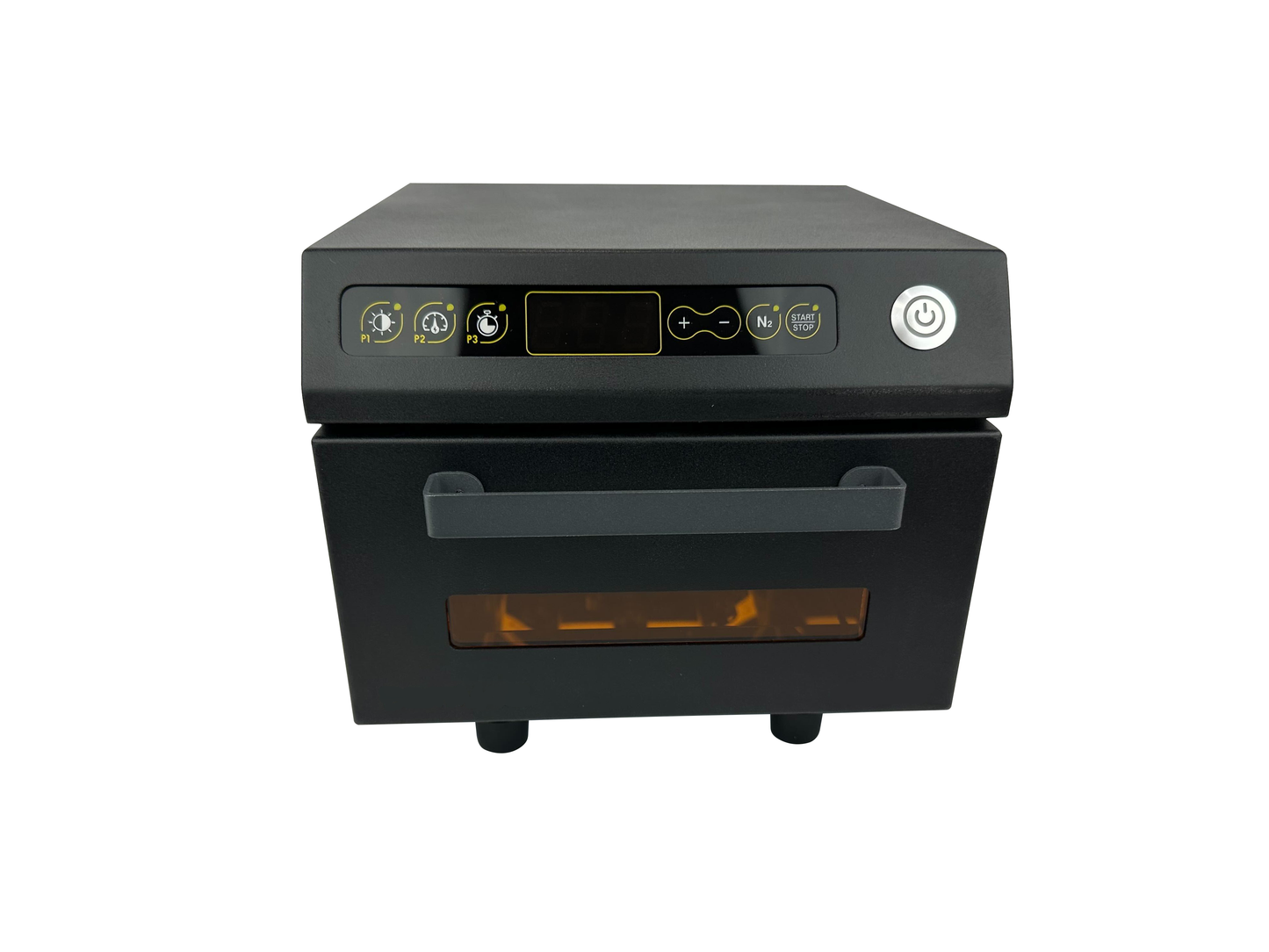

CureUV Pro-720 LED Curing Oven with Nitrogen Purge

CureUV Pro-720 LED Curing Oven with Nitrogen Purge

Regular price $1,039.99 USD
Regular price Sale price $1,039.99 USD
Sale Sold out

SKU:512125

The CureUV Pro-720 LED Curing Oven with Nitrogen Purge, featuring nitro purge technology, is designed to revolutionize your curing processes with oxygen-reducing capabilities, time-saving features, and high-performance technology, ensuring a premium surface cure and extraordinary end product quality.

Key Benefits:

  • Oxygen-Reducing: Enhances curing by creating an inert atmosphere, preventing oxidation.
  • Time-Saving and Efficiency-Improving: High-power LED technology speeds up the curing process, improving overall efficiency.
  • High Performance: Delivers superior surface-curing with advanced features for optimal results.
  • Extraordinary Outcome: Produces high-quality end products with exceptional consistency.

Features:

  • Save Time: Fast-curing, high-power, broadband LEDs significantly reduce manufacturing time.
  • Cost-Efficient: Stable high-power LEDs with a constant current circuit eliminate the need for costly UV fluorescent light tube replacements.
  • Multiple Functions: Easily set up curing parameters to optimize efficiency with the Intensity Duty-Cycle Timer (IDT) settings.
  • Post-Curing for 3D Printing: Equipped with high-power UVA LEDs for quick and uniform post-curing, ideal for 3D printed objects.
  • Efficient Curing Method: A nitrogen inert atmosphere provides a cost-effective and efficient curing process.

Elevate your curing process with the CureUV Pro-720 LED Curing Oven with Nitrogen Purge, designed for industries demanding precision, efficiency, and superior quality. Experience Superior Performance and Efficiency.

Set Nitrogen Purge:

Technical Specifications:

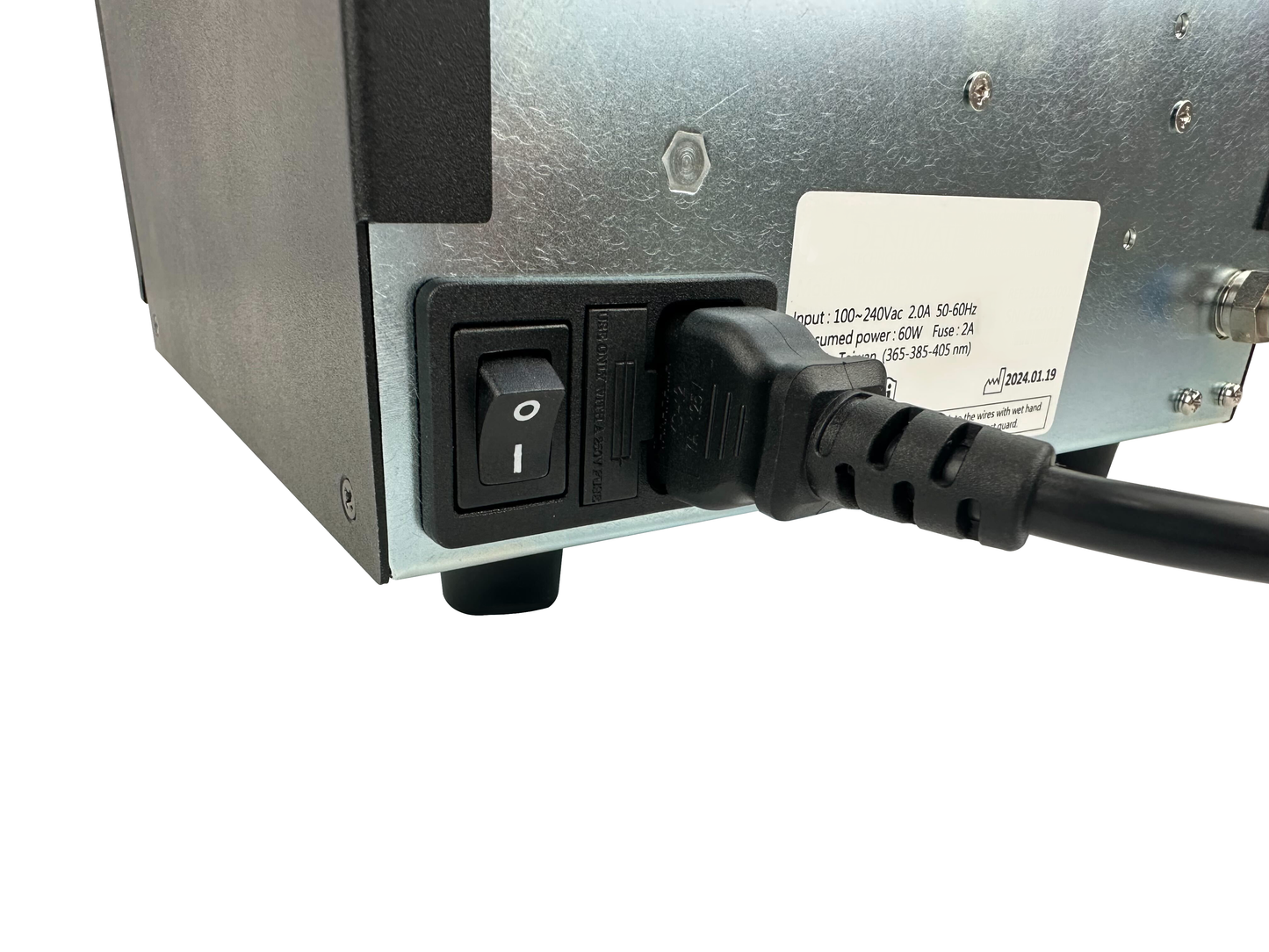

Power Input 100 - 240 Vac / 50 - 60 Hz
Consumed Power 70 W
Fuse 2 A
Quantity of LEDs 25
Wavelength of LEDs 355 - 415 nm - Peak 365 nm - 385 nm - 405 nm
Curing Time 5 - 995 sec
Memory Setting 3 curing setting in memory
Irradiance (365 nm) 3.72 W/in2
Irradiance (385 nm) 8.12 W/in2
Irradiance (405 nm) 6.72 W/in2
Dimensions L 7.87*W 8.66*H 6.29 in (max)
Inner Chamber Dimensions L 5.51*W 5.51*H 3.26 in (max)
Weight 6.61 lb

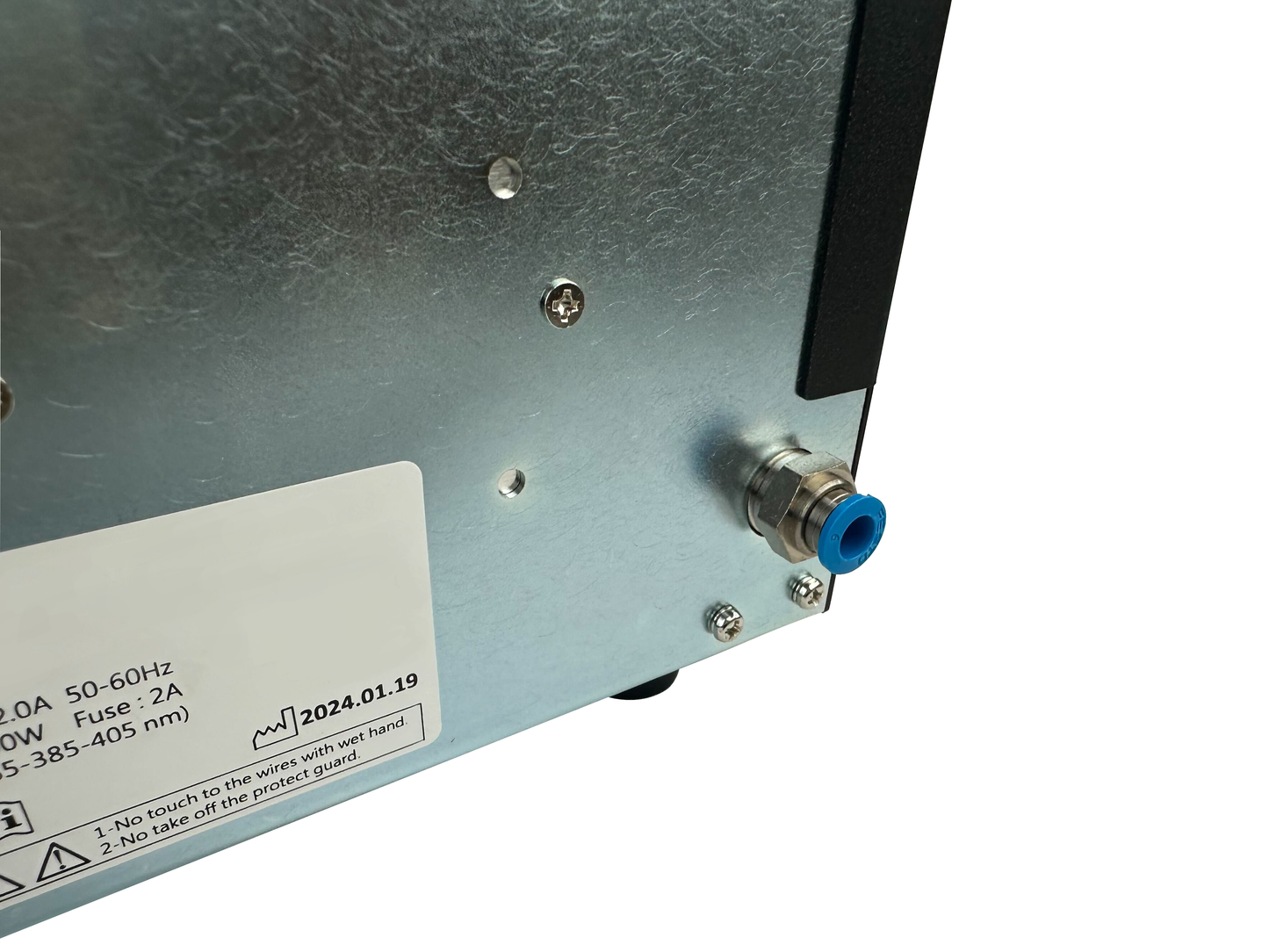

Tubing O.D  0.23 in



CureUV Pro-720 LED Curing Oven with Nitrogen Purge - CureUV Pro-720 LED Curing Oven
Comparison chart


CureUV Pro-720

with Nitrogen Purge



CureUV Pro-720


Power  AC100~240V/50~60Hz AC100~240V/50~60Hz
Consumed power 70W 90W
Quantity of LEDs 3W x 25 3W x 35
Wavelengths 365/385/405 nm LED 365/385/405 nm LED
Features N2 input

Top and bottom light
