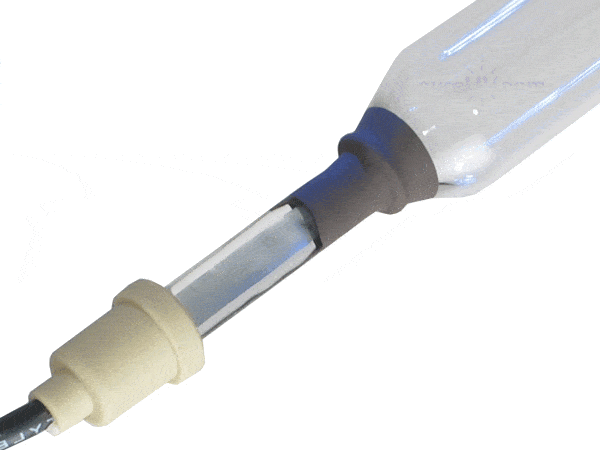

Dorn / SPE Part # P3018 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Dorn / SPE Part # P3018 UV Curing Lamp Bulb is a 100% compatible UV replacement lamp bulb that has an arc length of 18 inches and exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the Dorn / SPE UV Systems with the following part numbers:

• P3018
• Vitran
• M&R
• 6818A4C
• P3018 C
• P3018 FM

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The UV curing bulb is used extensively in the printing industry, mainly for curing coatings and inks. UV curing lamps are necessary for the drying system and are a better option to infra red drying as it resists smudges. UV Curing also enables environmentally friendly elements of UV printing and reduces the use of energy.

Technical Specifications:

• Quartz: Standard
• Arc Length: 19.00 Inches
• Overall Length: 24.75 Inches
• Tube Diameter: 25mm
• Watts Per Inch: 300 WPI

Dorn / SPE 18 inch UV lamp (300 WPI) - OEM part number P3018 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
