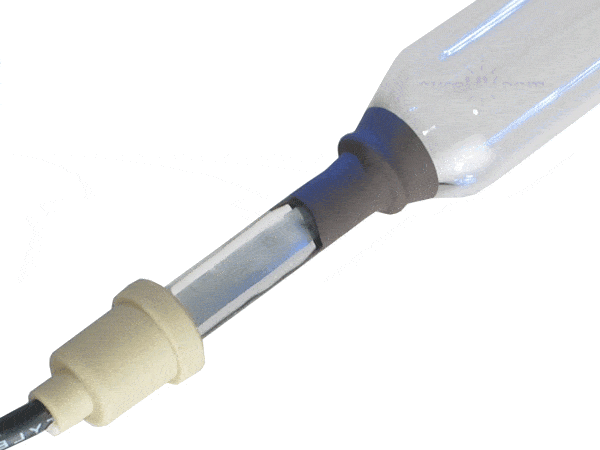

Dorn / SPE Part # P3024C UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 26 Inch Arc Length

The Dorn / SPE Part # P3024C UV Curing Lamp Bulb is a guaranteed 100% replacement lamp bulb that has OEM standards of UV curing bulb performance. The 100% guaranteed compatible replacement lamp bulb exceeds OEM standards of UV curing performance and are compatible to the Dorn / SPE UV Systems. The lamp bulb is compatible to the following system models:

• Sakurai UV Coater
• M&R
• Dorn
• Spot UV
• 202990
• P3024C
• M&R Vitran
• Frank Matthews
• FMA
• Sakuri

The 26 inch lamp bulb has output wattage of 300 WPI. With a constant demand for UV curing bulbs in the printing industry, the CureUV’s replacement UV lamp is a generic replacement. The UV curing lamp bulbs are components that are necessary for the drying system. Many people believe that a curing lamp bulb provides better results than infra red drying and resists chances of smudges. It does not further release volatile organic compounds in the air. The UV light bulb works by generating a specific wavelength to help in curing inks and coatings.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 26 inches
• Total Length: 14.7 inches
• Tube Diameter 26 mm (heavy duty)
• Wattage Per Inch: 600 WPI

Dorn / SPE 26 inch UV lamp - OEM part number P3024C - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
