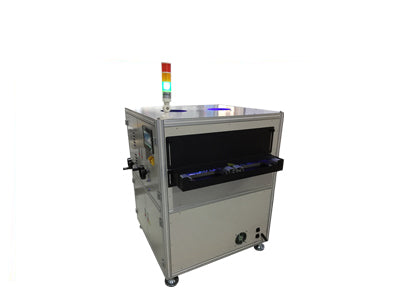

Double-Sided 260x160mm UV LED Curing Conveyor with adjustable Chain Belt

The Double-Sided 260x160mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.

Features:

• Double Sided Cabin ensures your products are positively cured once passed through it
• Extra durable chain belt adjusts to the size of the product being cured
• LED array ensures you find the ideal wavelength for the material at hand
• No preheating time needed
• The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
• UV LED cold light source ensures your material's composition won’t be harmed during curing process
• User friendly and quick to use

This UV conformal coating curing is one of the most efficient conveyors in the market, this system provides double light source from the bottom and top of the cabin, ensuring your products are positively cured in one pass.

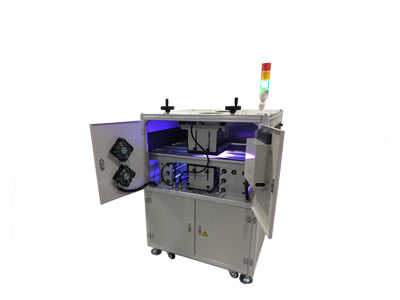

This conveyor consists of a control system, a double-sided High-Intensity UV LED Irradiation head and a chain conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 260x160mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines. And its two stainless steel chain belt design allows the user to manually adjust the size of the product fixture.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

• Electric power: 1782W
• Optic power: 2000mW/cm²
• Curing area: 260x160mm
• Cooling method: air cooling
• Dimension: L1207mm*W950mm*H1490mm

395nm*:

• Electric power: 1782W
• Optic power: 4000mW/cm²
• Curing area: 260x160mm
• Cooling method: air cooling
• Dimension: L1207mm*W950mm*H1490mm

*Technical Specifications available at the moment apply to the specified wavelengths.

We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
