EIT LEDMAP™
EIT LEDMAP™
Regular price
$7,179.99 USD
Regular price
Sale price
$7,179.99 USD
Unit price
per
SKU:512070-L365
Couldn't load pickup availability
The EIT LEDMAP™ is a powerful and versatile instrument designed for precise UV and temperature profiling. This compact one-piece device provides comprehensive measurements, making it an essential tool for professionals in various industries.
Unparalleled Versatility:
- LED Profiling Radiometer provides UV and Temperature Profiles, irradiance (W/cm2), and energy density (J/cm2) values.
- Available in Single L-Band or Four L-Band versions (L365, L385, L395, and L405), catering to your specific needs.
Precision and Performance:
- User-adjustable sample rate, ranging from 128 to 2048 Hz, allows you to fine-tune data collection to your requirements.
- An impressive dynamic range of 40 W/cm2 ensures accuracy across a wide spectrum of applications.
Extended Data Collection:
- Large memory capacity supporting up to 65 minutes of data collection at the highest sample rate.
- 'Pause' feature enables you to create up to eight different data files on the production floor, streamlining your workflow.
Reliable Power Supply:
- Rechargeable batteries with a typical battery life of 100 minutes.
- Swift recharge time of approximately 90 minutes with the included smart charger. You can also charge it via a computer USB port for added convenience.
Seamless Integration:
- Designed for high-speed applications like digital printers, where precision is paramount.
- Easily transfer data to the PowerView Software® III for in-depth analysis and visualization of your measurements.
Compact and Convenient:
- Compact dimensions of 5.5" x 2.1" x 0.55" make it suitable for use on molding lines and chill drums.
- J-type thermocouple included for accurate temperature measurement.
- The EIT LEDMAP is 60% smaller than its predecessor, the EIT PowerMAP, ensuring easy portability.
Physical Characteristics:
| Unit Dimensions | 5.5” x 2.1” x 0.55” |
| Materials | Aluminum & Stainless Steel |
| Instrument Weight | 7.3 ounces |
| Carrying Case, Ship Kit | Supplied with carrying case, cut polyurethane foam interior, scuff resistant nylon exterior cover, USB cable and USB drive with PowerView III software/manual |
| Time-Out Period | 2 minutes from Standby Mode (Red Flashing LED) with no button activity |
| Battery/Battery Life | Rechargeable Smart charger provided with unit recharges in fast mode (+/- 90 minutes). Charge speed on USB ports varies depending on the computer USB port. Battery life: 100 minutes typical |
| Memory Capacity | 65 minutes of data collection time |
| Sample Rate Adjustment | User adjustable from 128-2048 Hz (128-256-512-1024-2048) |
| Operating Temperature | 32-167°F Internal temperature; withstands high external temperatures for short periods (Audible alarm indicates when temperature has exceeded upper limit) |
| Thermocouple | Supplied with J type Thermocouple, effective sample rate of 32 Hz |
| Spatial Response | Approximately Cosine “Lambertian” |
| Calibration | Supplied with NIST traceable calibration certificate |
Optics & Performance:

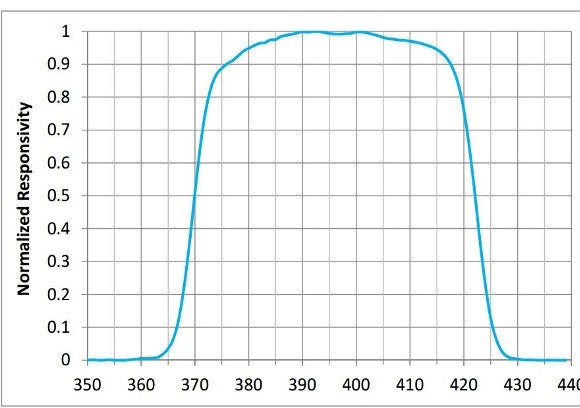

| Spectral Response | L365: 340-392 nm; ±2 nm (FWHM, 52 nm); 4 OD Blocking L385: 360-412 nm; ±2 nm (FWHM, 52 nm); 4 OD Blocking L395: 370-422 nm; ±2 nm (FWHM, 52 nm); 4 OD Blocking L405: 380-432 nm; ±2 nm (FWHM, 52 nm); 4 OD Blocking |
| Dynamic Range | 40W/cm2 |
| Suggested Operating Range | 200 mW/cm2-40 W/cm2; 0-250 J/cm2 On static (shuttered) sources, readingsdown to 100 mW/cm2 are possible |
| Accuracy | Typically ±2% or better; ± 10% of reading plus ± 0.2% of full scale |
| Repeatability | Typically better than 0.2% (unit alone); ≤ 1% max |
| PowerView Software III | National Instruments LabVIEW based programming designed for Windows 7-10. Collected data stored in LabVIEW based *.tdms files |
Brochure
Manual
LEDMAP Application Notes
LEDMAP Optics locations
LED Band Responses
This equipment is in conformity with the following standards and therefore bears CE marking: IEC 613261:2005, EN55011: 1998, EN61000-4-2: 1995, A1: 1998, A2: 2001; EN 61000-4-3: 2002, A1: 2002, following the provisions of the applicable directives: 98/34/EEC and amendments, 89/336/EEC and amendments.
If you have any questions or want to know more, drop us a line at sales@cureuv.com or give us a call us at (561) 243-8442.
