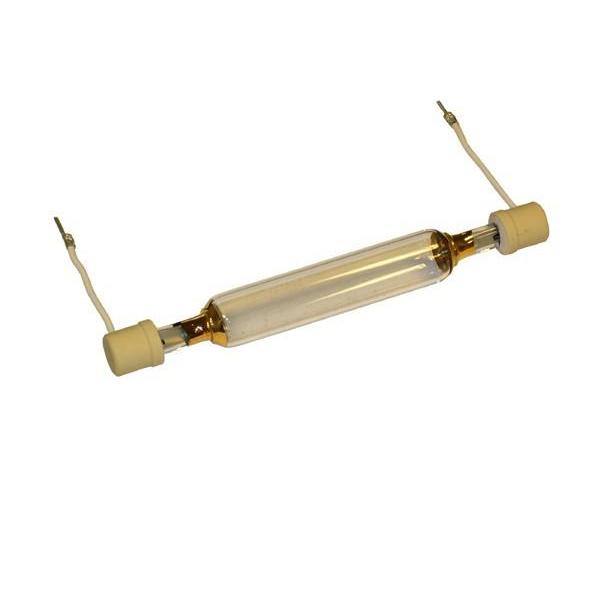

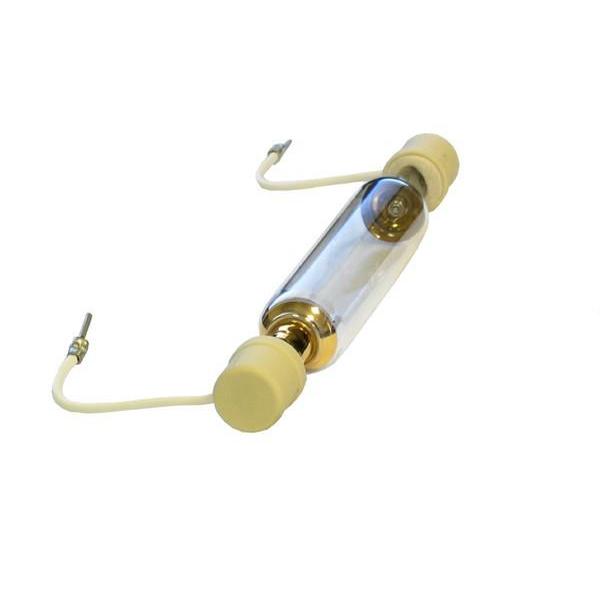

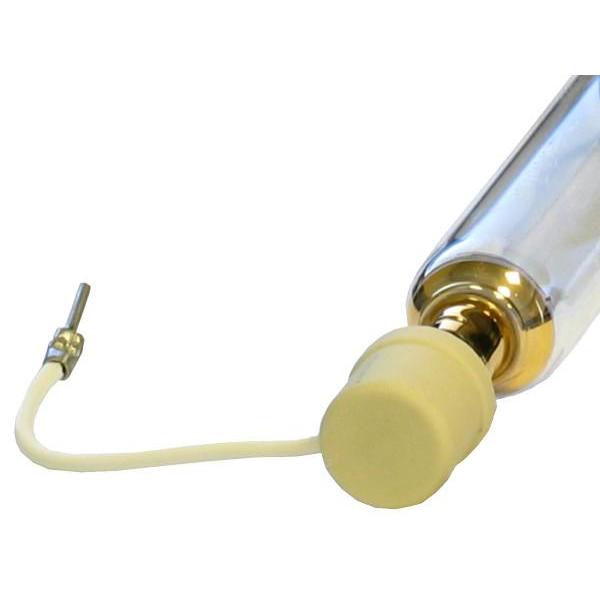

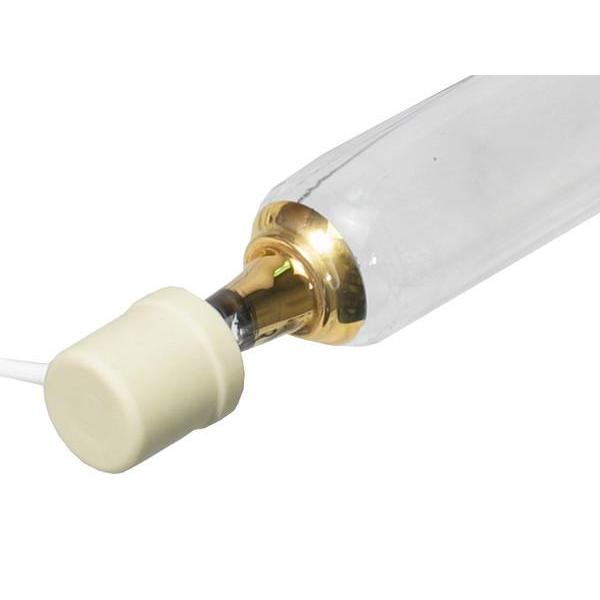

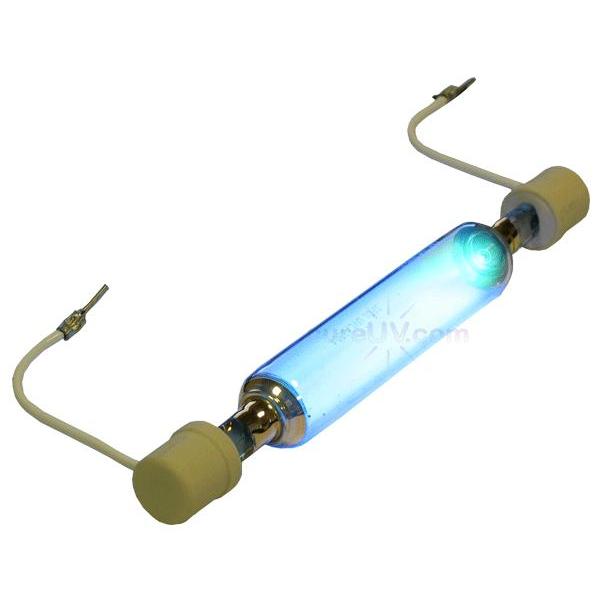

Gandinnovations Jeti 3150 X-2 397-000175 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 7 Inch Arc Length - 10.39 Inch Total Length (end to end)

Our Gandi Innovations 3150-X2 397-000175 UV Curing Lamp Bulb features a 7" arc length and exceeds OEM standards of curing bulb performance. The iron-doped UV replacement bulb is completely compatible to the Gandi Innovations 3150-X2 UV Flatbed Printer with the following part numbers:

• 3150-X2
• 3150X2
• 397-000175
• 397000175
• A33515N
• NR33515N

With a total length of 10.39", this UV replacement bulb works excellently to dry coatings and inks in graphics and signs. The UV lamps are connected to the photo initiators and the ink raw materials. It is important to replace the lamp bulb periodically as a weak UV light fails to cure ink properly and the ink may feel sticky. The replacement UV lamps from CureUV are subject to strict quality control measures to give you a wonderful printing experience. Studies show that as the bulb hour rises, the lamp produces lesser and lesser UV light and more heat. Excess heat can cause a bulge in the printed media. Heat can also cause shutter and reflector damage in the lamp housing. This can lead to bad output and repairing costs.

Equipment Model:

• F07K-DU4-F1

Technical Specifications:

• Fill: Iron
• Quartz: Standard
• Arc Length: 7 Inches
• Overall Length: 10.39 Inches
• Output Power: 400 WPI

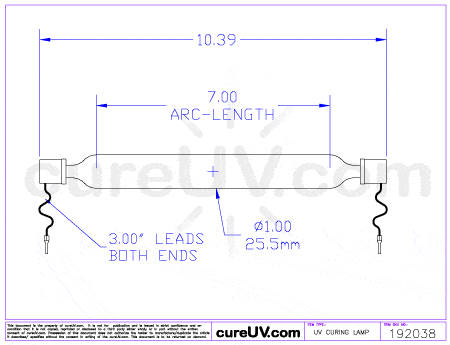

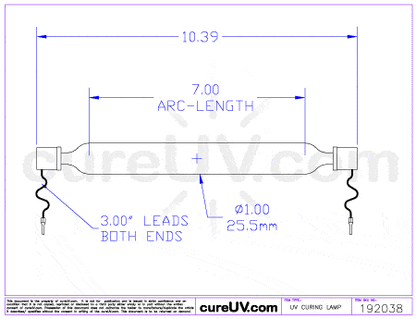

Gandinnovations 3150-X2 Compatible Digital UV Lamp - Drawing (PDF)

UV Spectral Output of an Iron doped Lamp (PDF)

*All lamps listed are compatible brand UV products. We do not sell Gandi Innovations brand lamps. All Gandi Innovations brand names, trademarks and logos are property of Gandi Innovations.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
