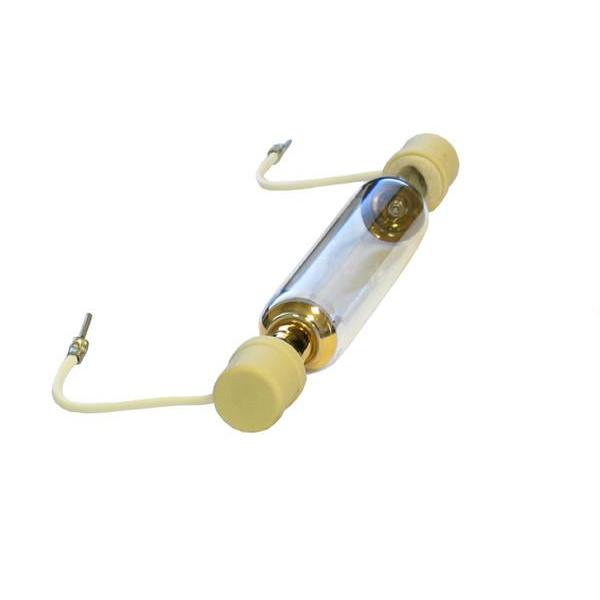

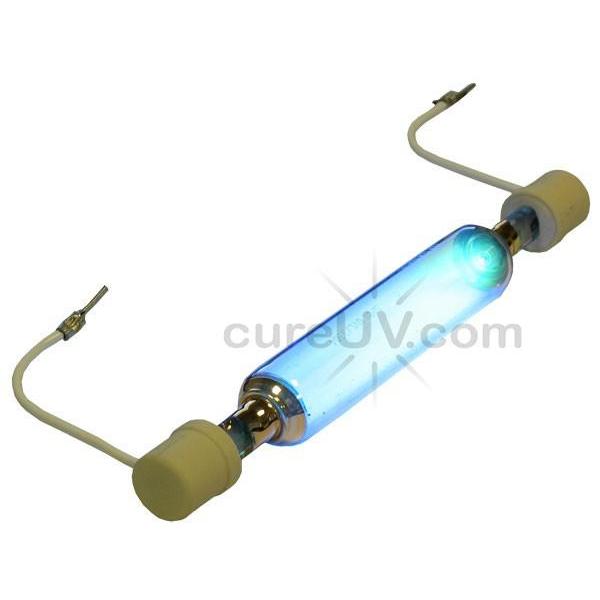

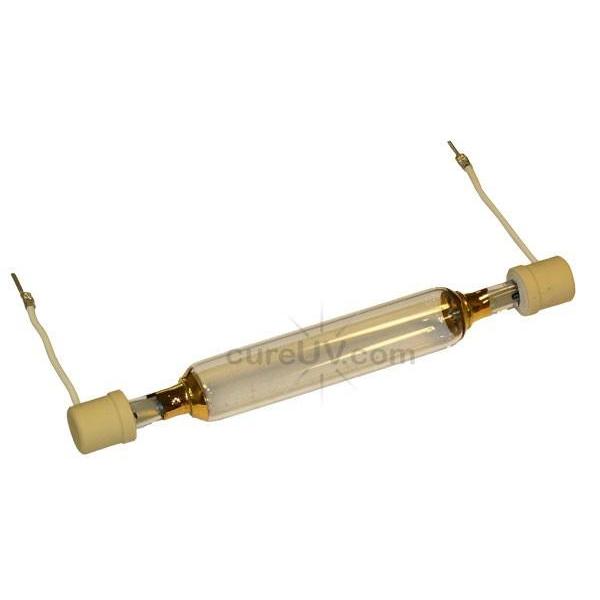

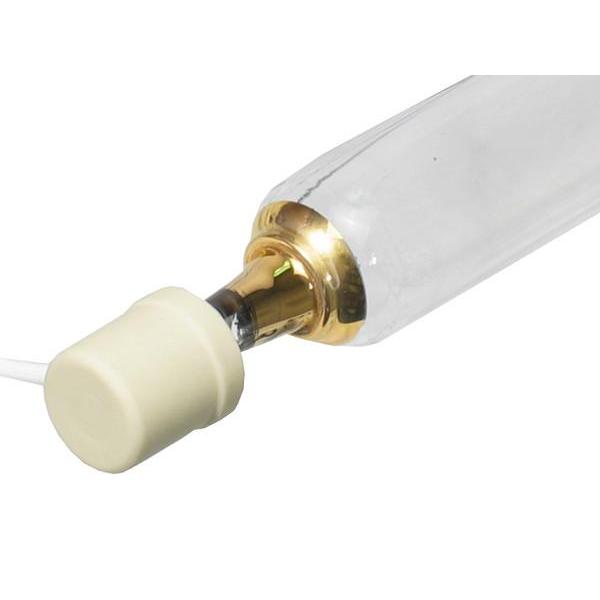

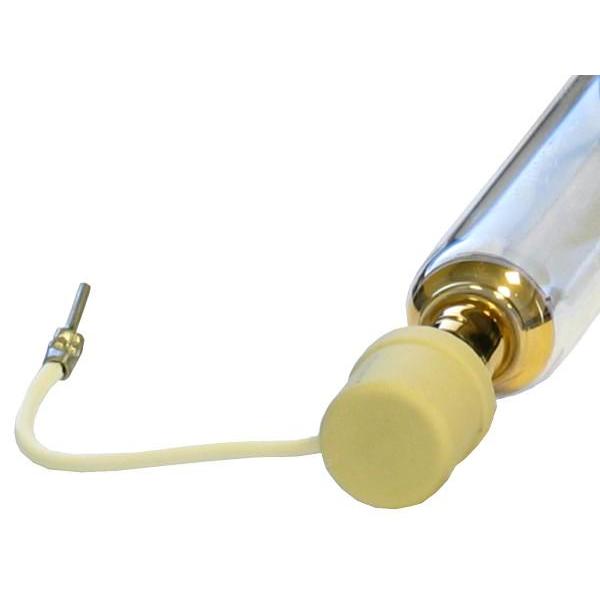

Gandinnovations Jeti 1224 UV Curing Lamp Bulb

Gandinnovations Jeti 1224 UV Curing Lamp Bulb

Regular price $199.99 USD
Regular price Sale price $199.99 USD
Sale Sold out

SKU:192193

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Metal-Halide Wavelength - 4 Inch Arc Length - 7.5 Inch Total Length (end to end)

The Gandinnovations Jeti 1224 UV Curing Lamp Bulb is a guaranteed replacement part that is compatible to the Gandinnovations Jeti UV Flatbed Printer with the following part numbers:

  • Jeti 1224
  • 397-036118
  • 397036118
  • F04K5F2
  • UVL/3604

System Application

  • Agfa - Jeti 1224 UV HDC FTR
  • Agfa - Jeti 5024 UV Galaxy RTR
  • Agfa - Jeti 5024 UV JetSpeed RTR

The iron-metal halide filled UV replacement lamp has a 4" arc length and an overall length of 7.5". The UV curing lamp exceeds OEM standards of bulb performance. The UV curing bulbs from CureUV are designed to maximize the curing intensity and reduce the intensity of degradation as the bulb is used. The curing lamps from CureUV require fewer bulb changes and are more economical than original replacement parts. The UV printer lamp bulb is manufactured in the USA and is a quality solution with a predictable lifespan. The replacement lamp helps in drying coatings of inks in graphics and signs. CureUV provides UV lamp for printers in different arc length and spectral fills. The quartz plate in lamp works as a filler between lamp and the system.

Equipment Model(s):

  • F04K-DU5-F2
  • AGFA GANDI 1224

Technical Specifications:

  • Fill: Iron Metal-Halide
  • Quartz: Standard
  • Arc Length: 4 Inches
  • Overall Length: 7.5 Inches
  • Tube Diameter: 26mm
  • Watts Per Inch: 500 WPI
  • Wattage: 2060 W

UV spectral output of an Iron Lamp

UV Spectral Output of an Iron Lamp (PDF)

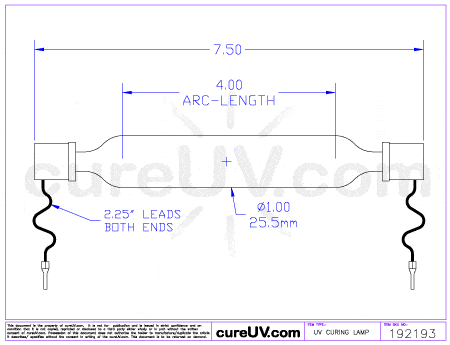

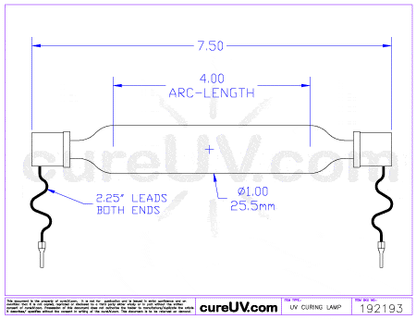

Gandi Jeti 1224 compatible digital UV lamp drawing

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Gandinnovations brand UV lamps. All Gandinnovations brand names, trademarks and logos are property of Gandinnovations.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
