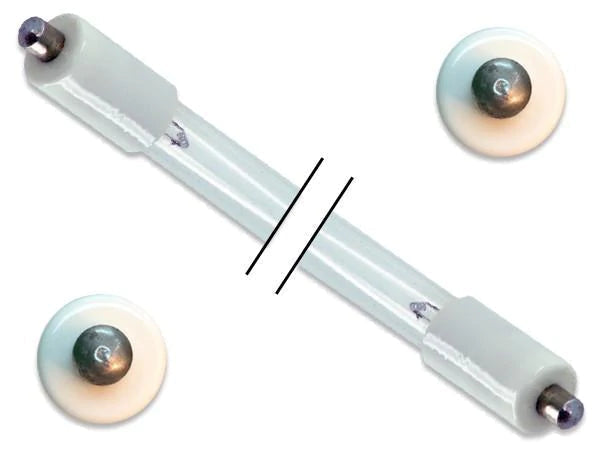

CureUV Brand Bulb 100% Compatible Replacement for American Ultraviolet SM-36-L Replacement UVC Light Bulb

Single Pin Double Ended - 39 Watt Germicidal Water Treatment Bulb

The American Ultraviolet SM-36-L Replacement UVC Light Bulb is a single-pin double-ended light bulb that has an arc length of 30.12" and a total length of 33.19". With a peak output of 253.7nm, the UVC replacement light bulb helps in destroys 99.9% of germs in water to give you safe water at all times. The replacement bulb is made using ceramic as the base material and comes in a non-ozone glass type. The light bulb lasts for 10,000 hours after which we highly recommend replacing it for better performance.

This process of water purification is a purely physical process and does not alter the chemistry, pH, or taste of water. It is also an environment-friendly option and is better than chemicals and their bi-products. Many people believe that the system enables a safe solution against microorganisms such as giardia and cryptosporidium that are considered to be chlorine-resistant. The UV light bulb emits a short wavelength of 253.7 nm and this energy reacts photo-chemically with the genetics of the microorganisms. The replacement bulb works with germicidal OEM water disinfection filters, UV sanitizers, and Ultraviolet water purifiers.

Common Applications:

• Air Conditioners
• Air Purifiers
• Aquaculture
• Beverage Services and Processing
• Drinking-Water
• Food Services and Processing
• Heating & Cooling Filters
• HVAC Systems
• Municipal Wastewater
• Pools, Spas, and Water Features
• Surface Disinfection
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

Specifications:

• Total Length: 33.19 inches (843mm)
• Arc Length: 30.12 inches (765mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Voltage: 115V
• Lamp Wattage: 39 Watts
• Output UVC Watts: 13 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone

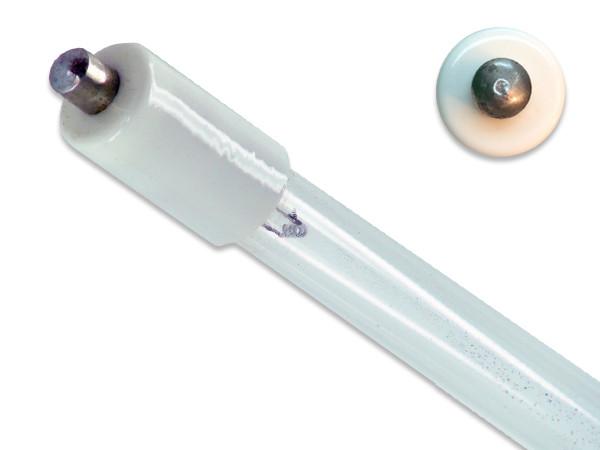

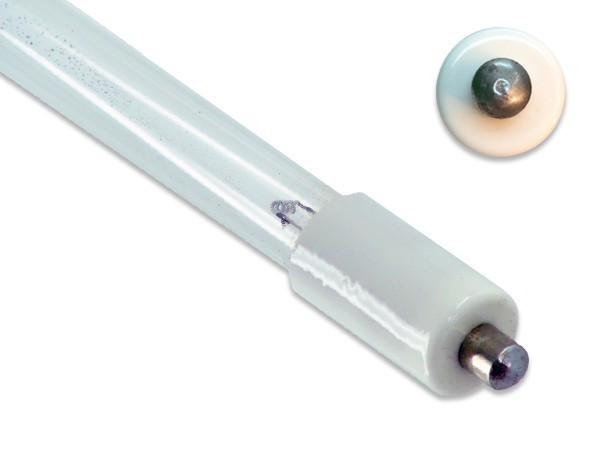

• Base Style: Single pin double ended
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

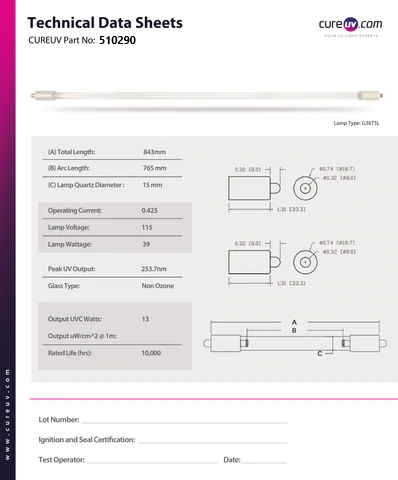

Technical Data Sheets:

















Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

This product is a substitute item for old CureUV product item #: 191664, 191689, 191691, 191692, 192017, 192018, 192019, 194108, 194110, 194113, 194115, 194117, 194118, 194119, 194120, 194129

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
