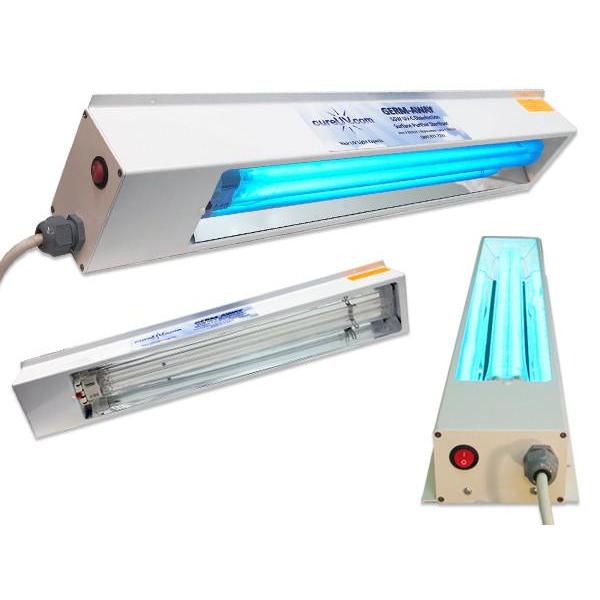

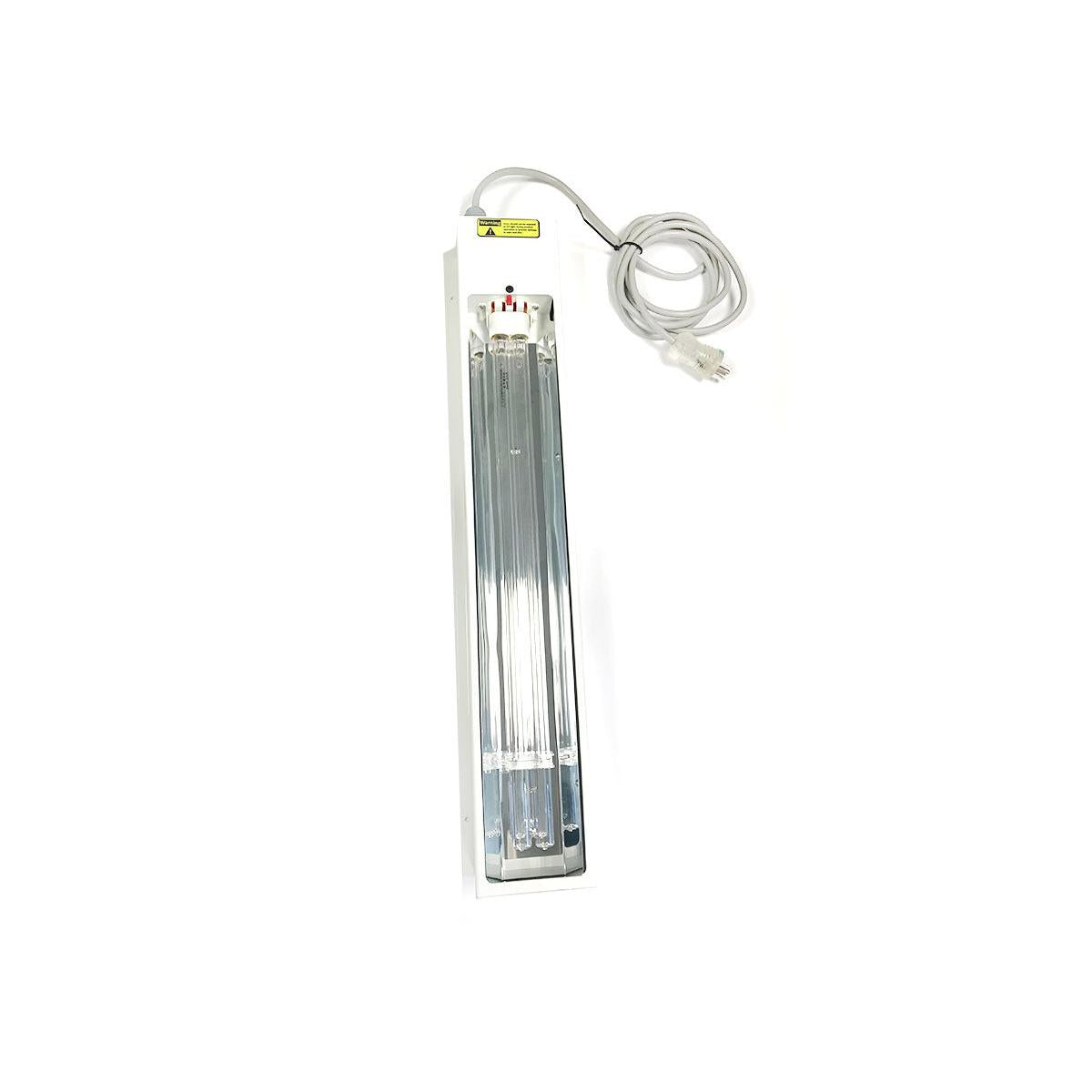

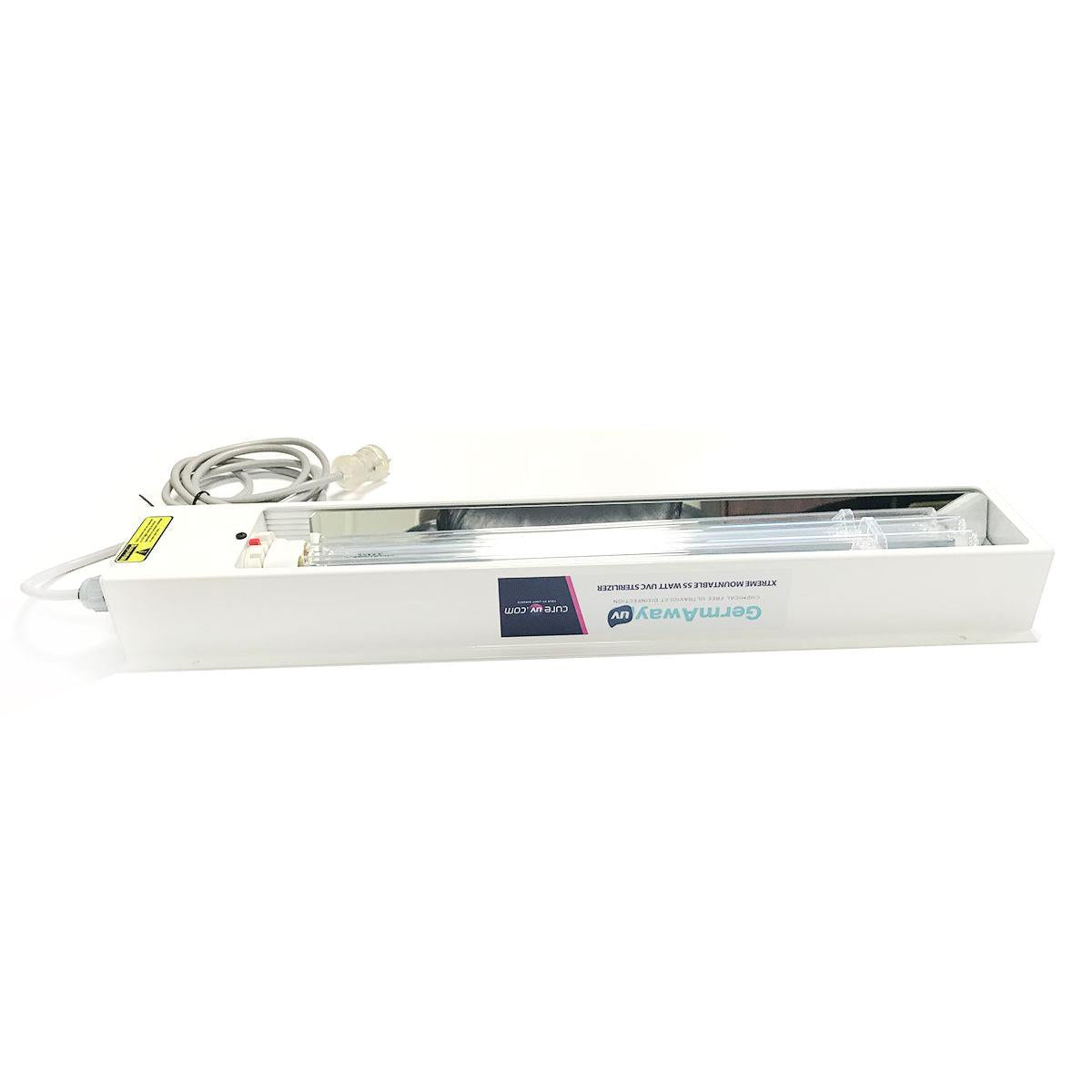

GermAwayUV Xtreme Heavy Duty Mountable UVC Surface Sanitizer

The GermAwayUV Xtreme Mountable Sanitizer is an easily mountable unit powerful enough to disinfect and sanitize virtually any surface. Proudly made in the USA!

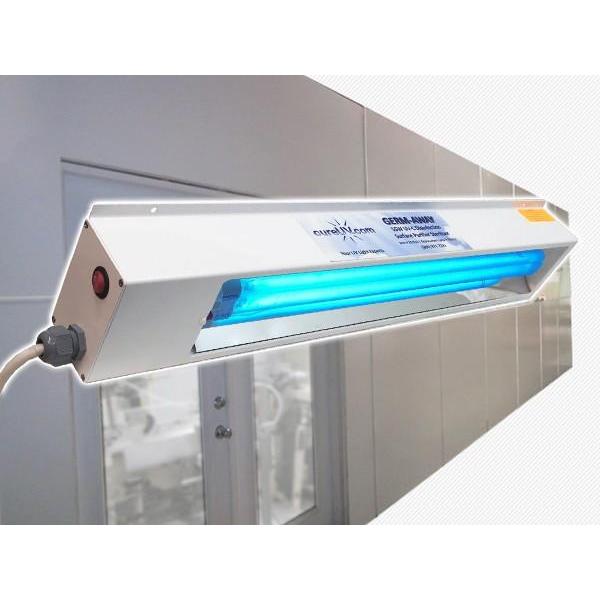

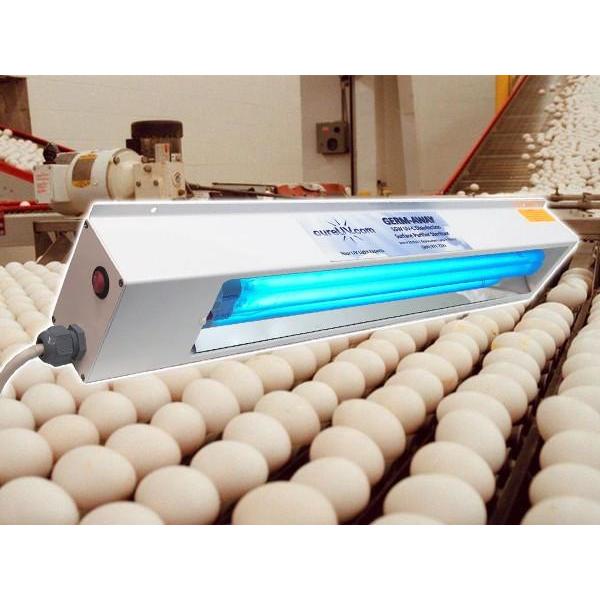

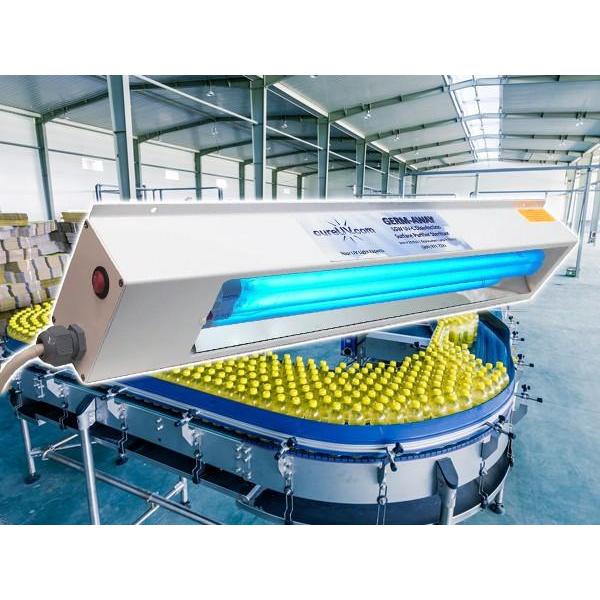

This original unit has been the workhorse in our GermAwayUV Disinfection line for the past decade. This unit was designed to be easily mounted, and capable of facing any direction to meet your sanitation and disinfection requirements. It can be used as a singular unit, or combined with two or more of the same units to create a modular chain link allowing for exposure of a very large surface—  for example, longer workstations or a large room.

Key Features:

• Power Supply: 120VAC/60Hz
• Usage: Plug-and-play supply hub
• Wattage: 55 W or 95 W
• Lamp Length: 21.06" (535mm)
• Dimensions: Length - 25.5" x Width - 5.1" x Height - 2.72"
• Weight: 7.4 lbs
• Lamp Lifespan: Up to 10,000 hours or 1 year
• Peak UV Output: 253.7nm
• EPA Product Registration Number: 94850-DV-5

• EPA Establishment Number for our production facility: 94850-FL



 Here's what makes these devices great!

- Wide Sanitation Coverage Area –

With a 21.06” lamp length this device is capable of sanitizing and disinfecting a wide surface area

- Easy to use, lightweight and portable –

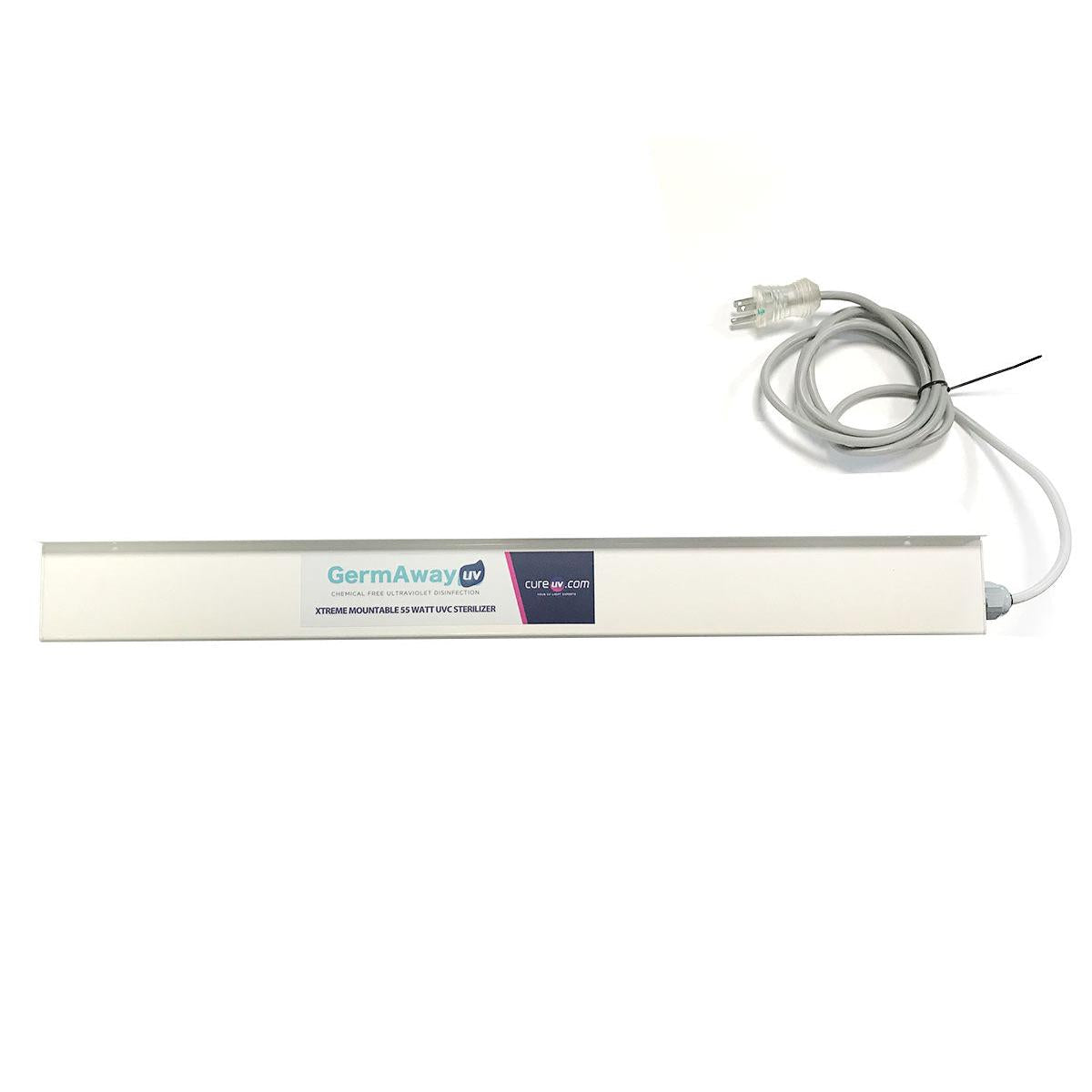

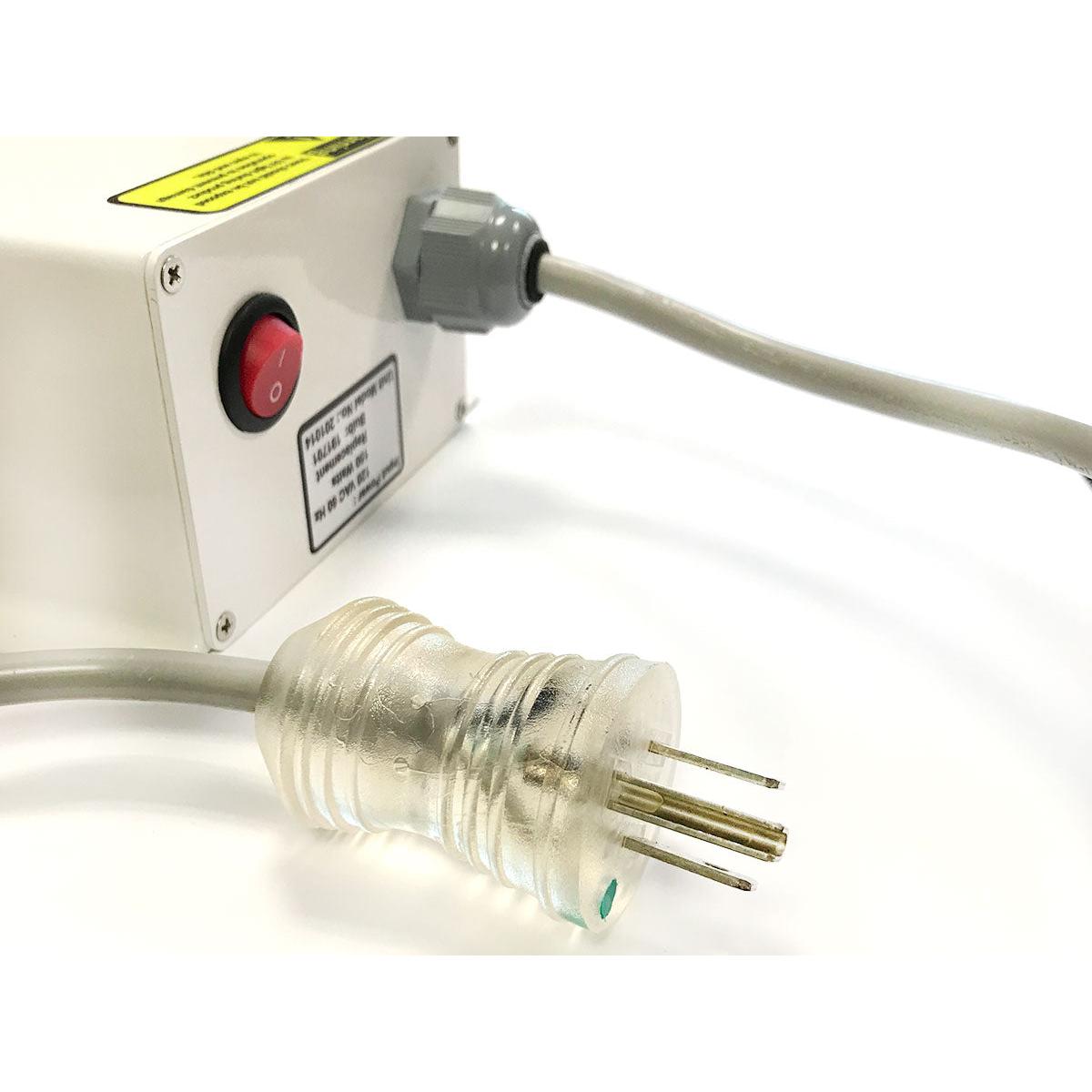

With a 6-foot cord, all you need to do to operate it is plug it in and turn it on. Although you can mount it, you can set it up so that it is easy to move the device and place it elsewhere as and when you need to.

- Long and durable service life – 10, 000 hours

The lamp bulb lasts for up to 10,000 hours, that’s 1 year of usage! So there's no need to be worried about constantly replacing the bulb. But when you do need to replace it, CureUV has the affordable replacements - no fuss.

- Shatterproof lamp -

The lamp is coated to prevent shards of broken glass from splintering everywhere

- Enhanced UV operation –

The device is equipped with electronically brightened reflectors that increase the efficiency and output of the UV-C for a better-sanitized finish by up to 30%

And if you're wondering what kind of time-frames you should use the device for check out our dosage calculator below



UV MEASUREMENTS For 55W

Distance (in.)	UV Intensity (mW/cm²)	Dosage (mJ/cm²) For 1 hour
0	39.61	142,596
1	18.02	64,872
2	14.05	50,580
3	9.41	33,876
4	7.06	25,416
5	6.15	22,140
6	5.18	18,648
7	4.29	15,444
8	3.94	14,148
9	3.28	11,808
10	3.00	10,800
11	2.70	9,720
12	2.33	8,388
24	0.84	3,024
36	0.39	1,404



UV MEASUREMENTS For 95W

Distance (in.)	UV Intensity (mW/cm²)	Dosage (mJ/cm²) For 1 hour
0	28.92	104,112
1	22.32	80,352
2	11.18	40,248
3	9.34	33,624
4	6.96	25,056
5	6.64	23,904
6	5.45	19,620
7	4.93	17,748
8	4.37	15,732
9	3.48	12.528
10	2.67	9.612
11	2.45	8,820
12	2.12	7,632

Technical Specifications:

If you would like to see a calculator that lists out specific microbes by name, please click here.

How do I know it is actually working?!

Our customers often ask us how they know that the Xtreme Heavy Duty Mountable UV-C sanitizer is actually working. It is a pretty reasonable question to ask, after all, the disinfection that UV-C provides is happening at a microscopic level. This is why we have started including a set of free UV-C Visualizer Strips along with all GermAwayUV Surface Disinfection products.

Simply put the UV-C Visualizer card on the surface that you wish to disinfect and run the system for the amount of time you plan to use for full disinfection. After running the unit for a cycle, the yellow strip on the card should change from a bright yellow to a light green!

(Note: If there is no color change then you need to either slow down the rate at which you disinfect, or place the substrate closer to the mountable unit.)

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Special Notice!



All GermAwayUV  products carry a 1 year warranty.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Do not look directly at the bulb and always use the included UV Glasses when utilizing this tool and safety gear.
