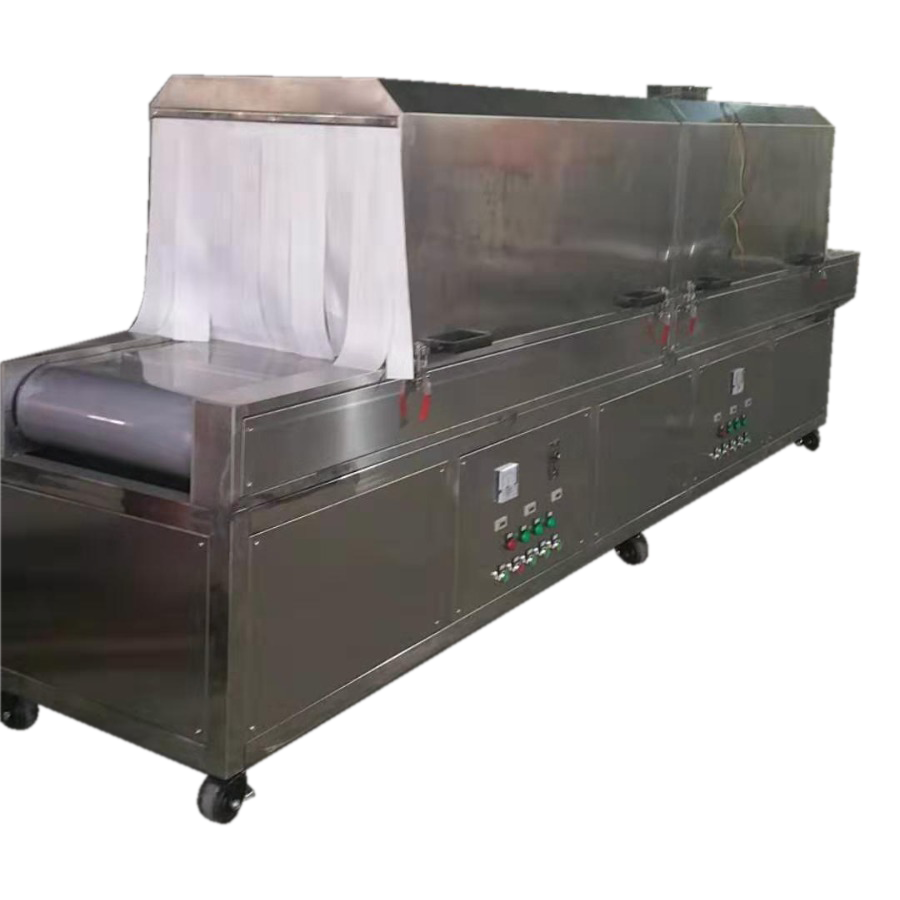

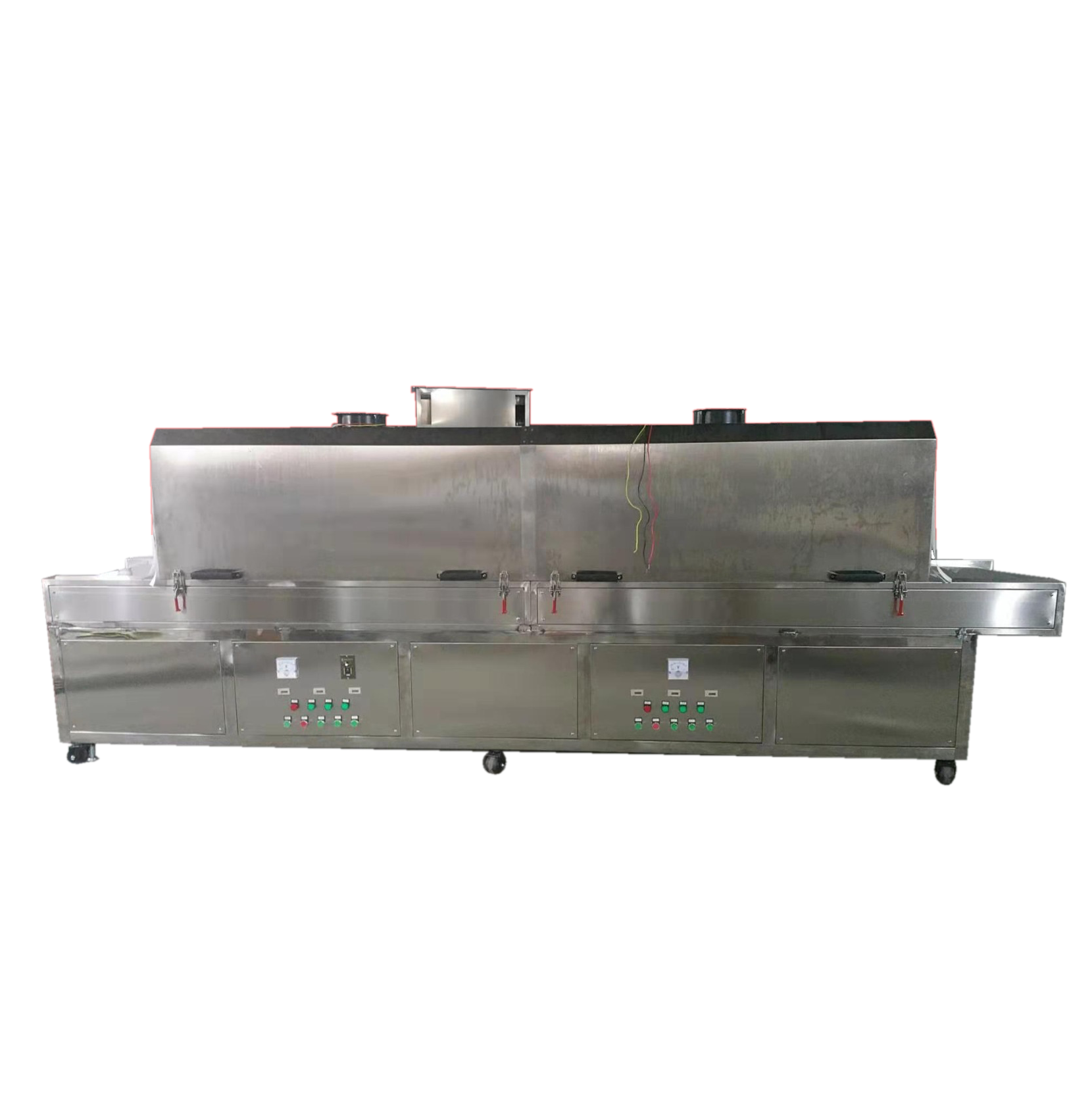

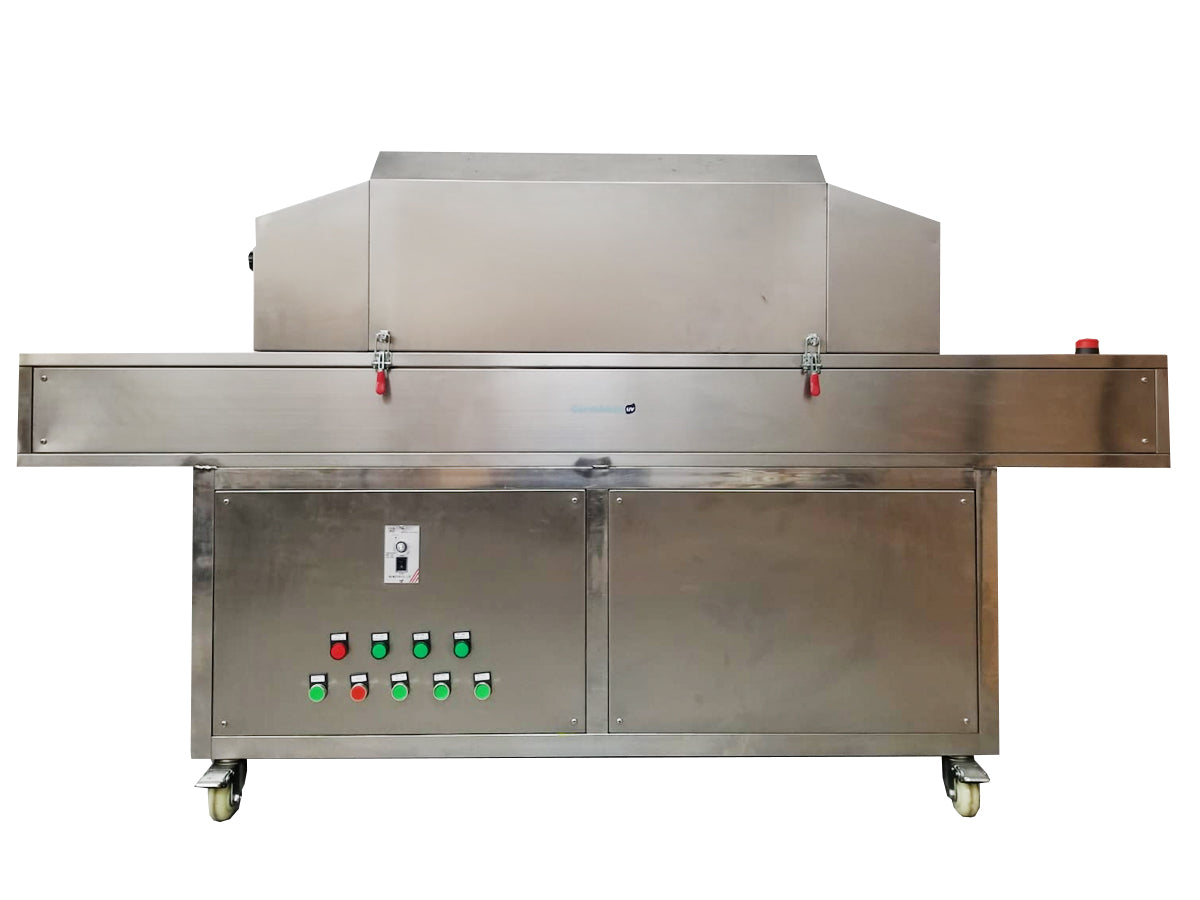

GermAwayUV 20" UV-C Germicidal Conveyor System w/ 320 Watts of UV Irradiation
Key Features of 20" Conveyor:
- UV lights are clinically proven to eliminate pathogens, germs, and viral particles.

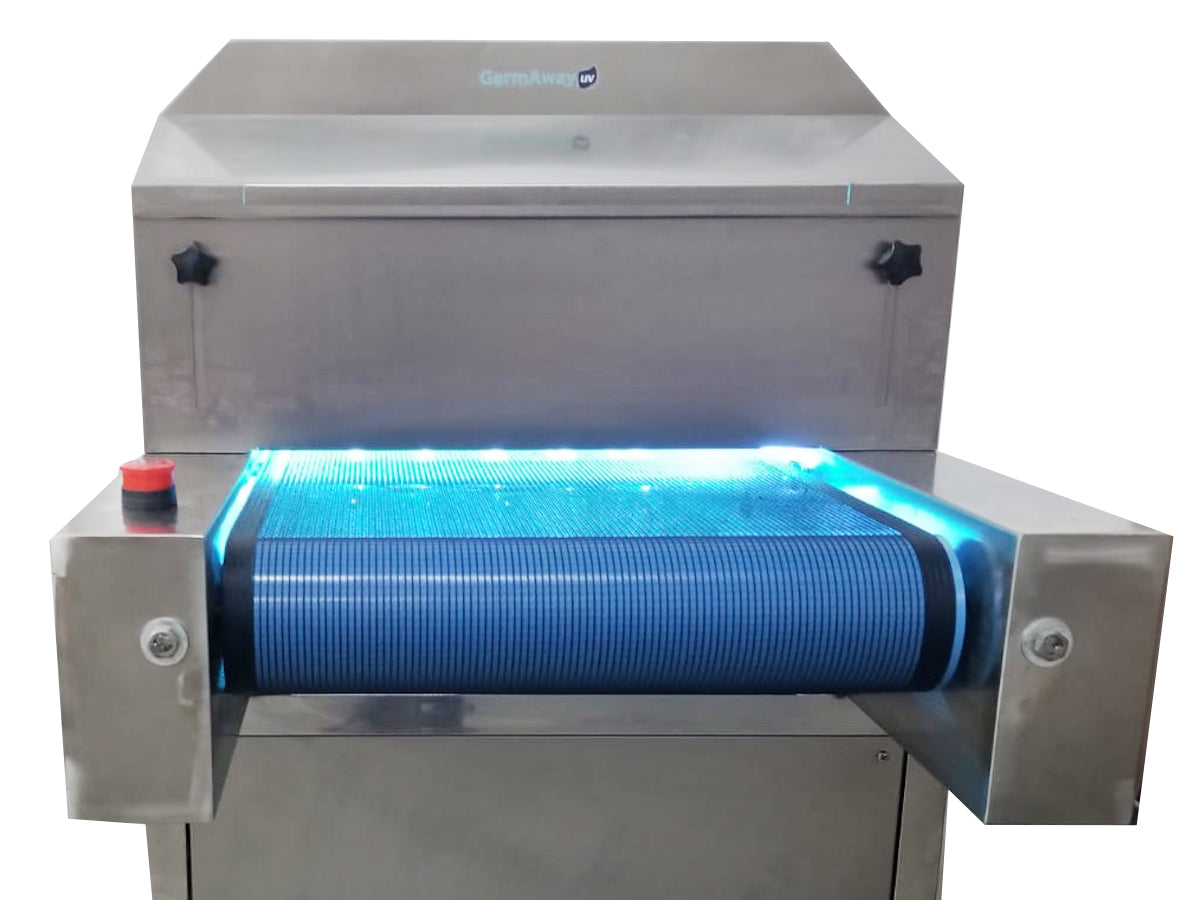

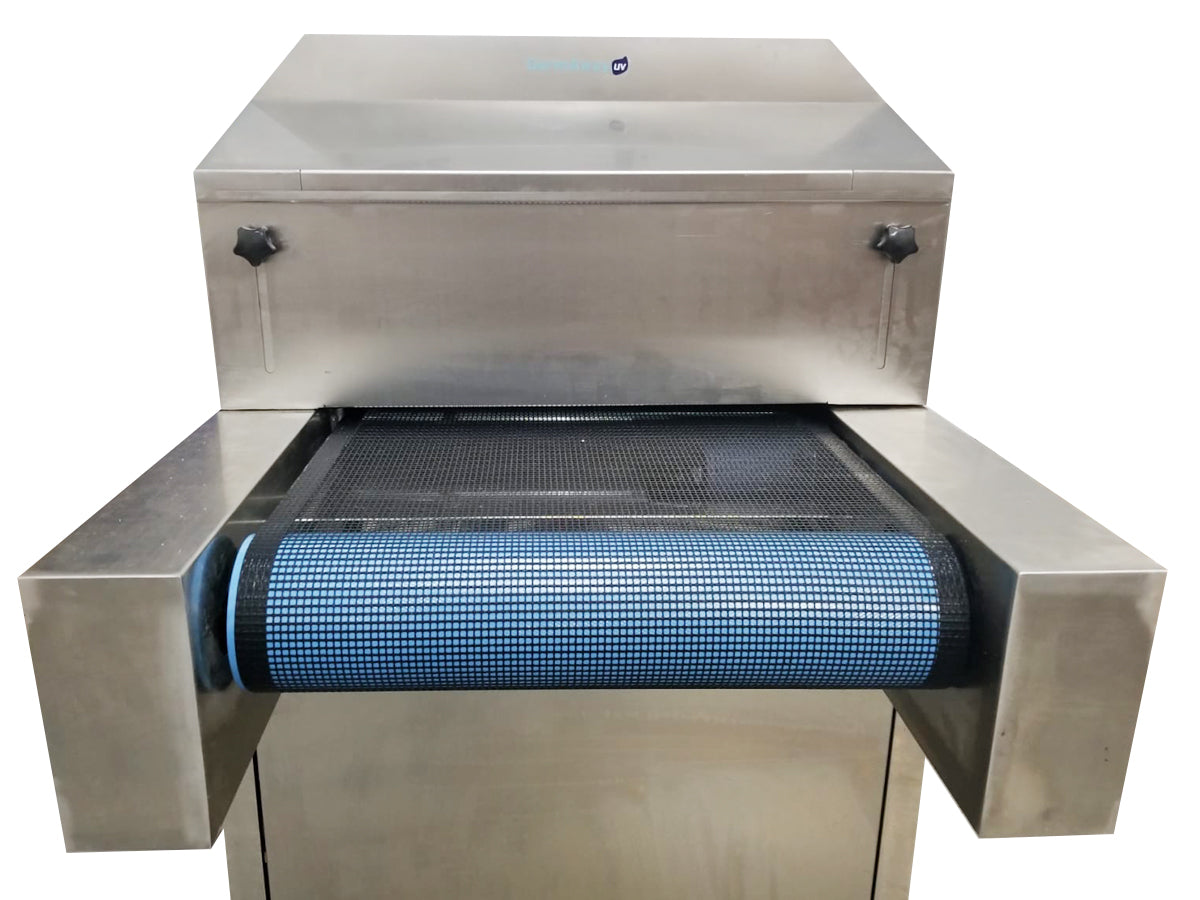

- Adjustable opening (6" default, customizable up to 16" with an additional lead time) to allow multiple-sized products to enter and to control stray UVC light.
- Adjustable speed dial to allow customized exposure times for different products.
- Comes with 16 bulbs with 10,000 hours of life for minimal service requirements— with high use, bulbs only need replacement after 12 to 18 months.
- Easy bulb replacement for ease of user maintenance.

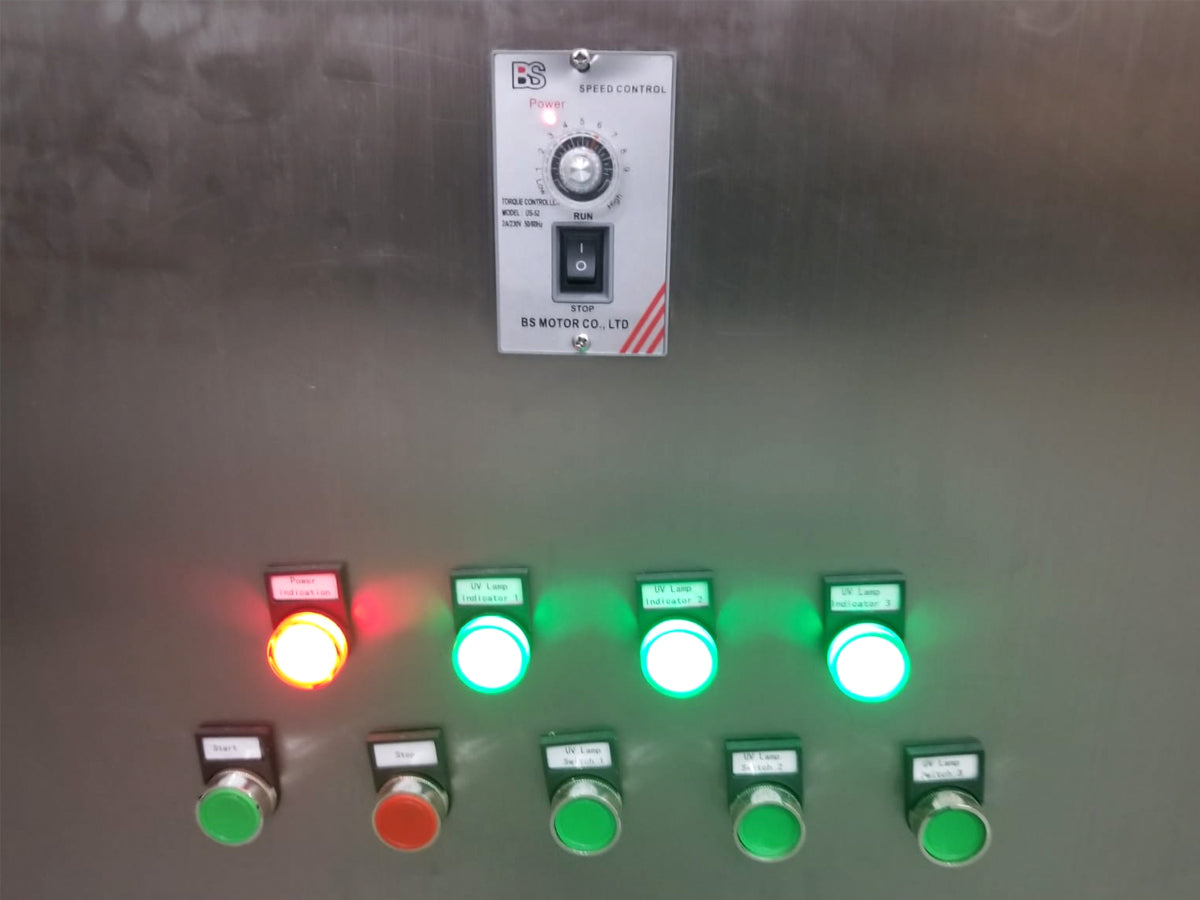

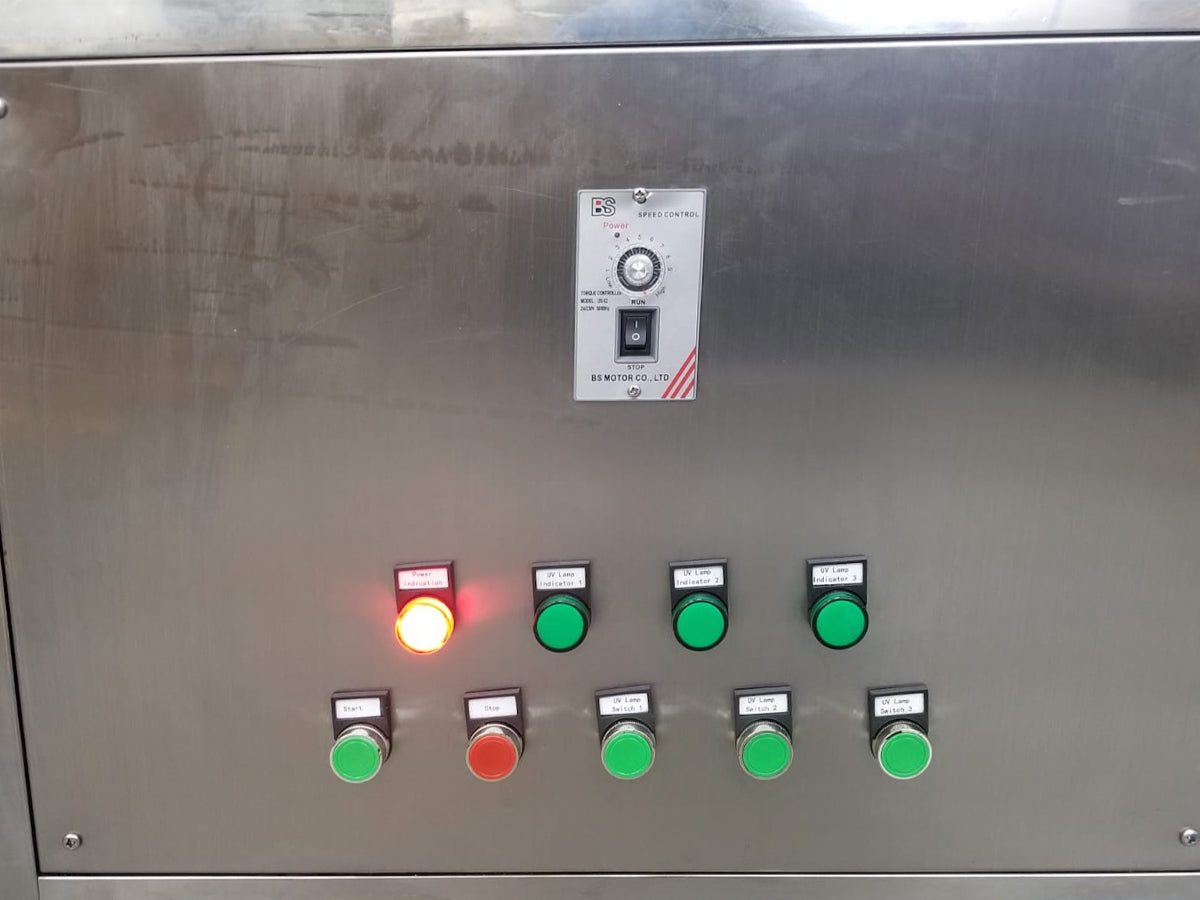

- Accessible control options include Easy Stop for immediate shutdown, Speed Control, and Opening variation.
Make Sure to Check Out the Belt for GermAway UV-C Conveyor 20" System for replacements or Customization
Why Buy a GermAwayUV Sanitation Conveyor?
In a time where it is extremely important to be aware f what potential germs, pathogens, and viral particles are allowed into our homes, a machine like the GermAwayUV sanitation conveyor makes a nerve-wracking and herculean task easy. Instead of handwashing produce in scalding water, or wiping down sealed packages with chemical cleaners— something that is not only time-consuming but may result in damaged skin— consider investing in a machine that acts as a one-stop solution for your large quantity disinfectant needs.
This machine is a conveyor belt operated with straightforward controls, allowing you to run multiple products at once under 360 degrees of UV light that have been proven to eliminate pathogens, germs, and viral particles. Not only is it safe to use on a variety of items—from dry goods, produce, dairy, and pharmaceuticals— but the ease of operation and machine durability ensure customer satisfaction, giving you and your loved one peace of mind.
Germ Inactivation Calculator:
Common Applications:
- Pharmaceuticals
- Dairy Products
- Fresh Produce
- Food Packages
- Horticulture (Plants/Food Stuffs)
Technical Parameters:
UV Conveyor Belt Length | 1000 mm | 2000 mm | 3000 mm | 4000 mm | 5000 mm |
Number of UV Bulbs | 16 | 20 | 24 | 32 | 42 |
Power | 1.5kw | 1.8kw | 2kw | 2.8kw | 3kw |
Size (LxWxH) | 2000 x 700 x 1500 mm |
3000 x 700 x 1500 mm |
4000 x 700 x 1500 mm |
5000 x 700 x 1500 mm |
6000 x 700 x 1500 mm |
Weight | 100kg | 150kg | 175kg | 195kg | 225kg |
Technical Specifications of 20" Conveyor:
-
Voltage: 220V or 120V
-
Wavelength: 254nm, ozone-free
- Conveyor Belt Material: Teflon and PVC optional
- Conveyor Belt Width: 500 mm
- Conveyor Belt Height: 750±20mm
- Conveyor Speed: 1.5 ft/minute - 24 ft/minute
-
UV Tube: 600mm long, 20Watt
- Amperage Draw: 15 amps
-
Height from Ground to Conveyor: 30 inches +- 1inch
- Highly reflective inner surface to help boost lamp effectiveness
- Body Material: 304 Stainless steel
All GermAwayUV products carry a 1-year warranty.
Instruction Manual:
Special Notice!
Product Video
If your UV-C conveyor needs are different, we can provide conveyors in virtually any size with virtually any UV light options. Please reach out to us at sales@cureuv.com or call us at 1-800-977-7292 and we would love to find the perfect solution for you!
