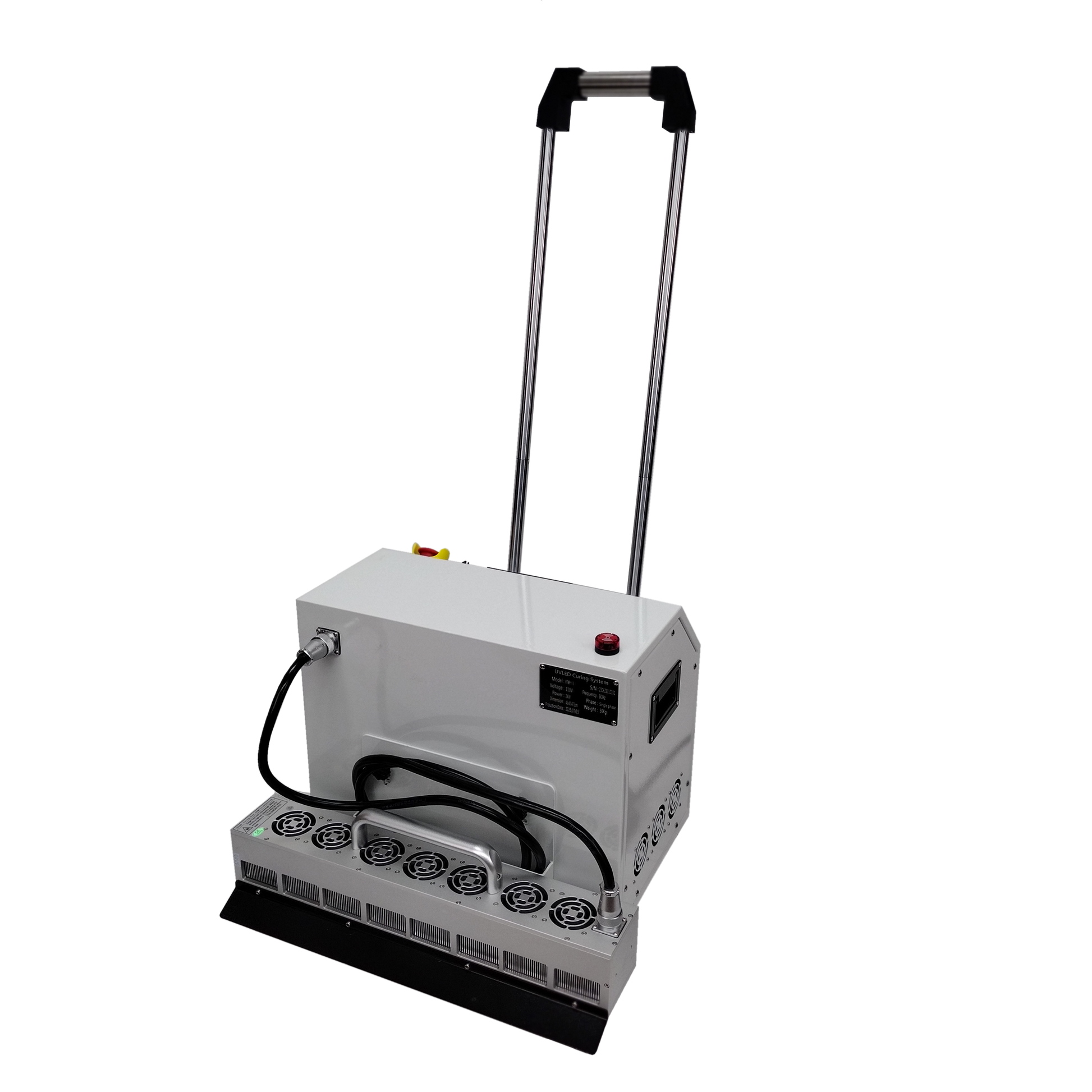

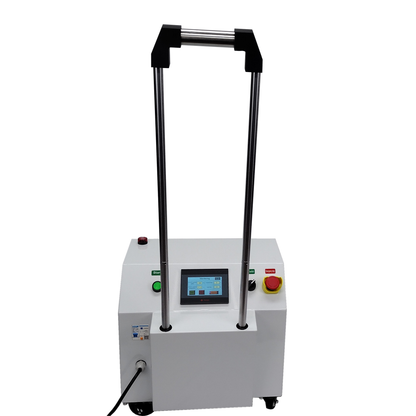

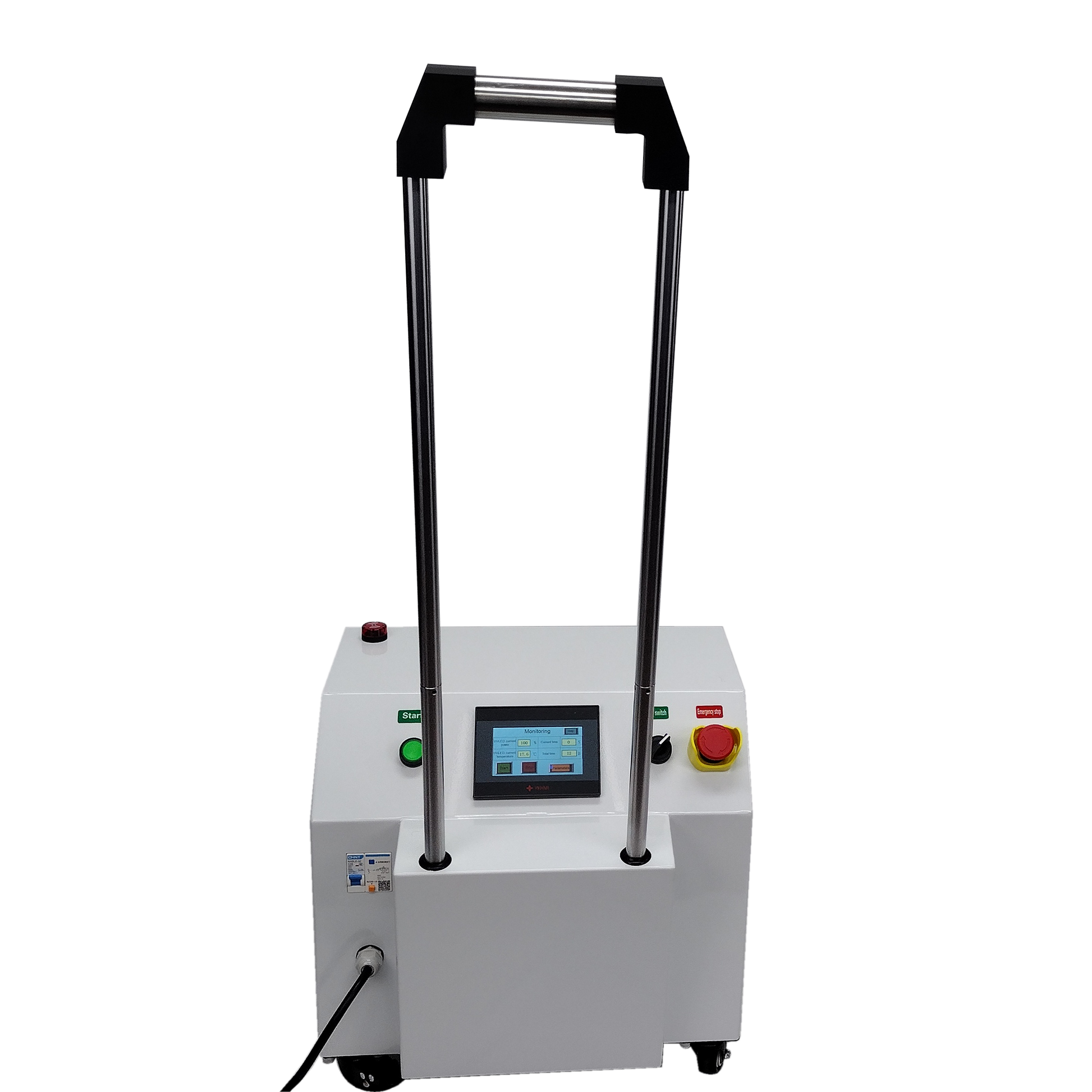

Walk Behind UV LED Floor Curing System

This hand-operated UV LED Floor Curing System, measuring 520x15mm, is expertly crafted for the purpose of curing floors.

Features:

• Practical design for floor-level work, easy to push

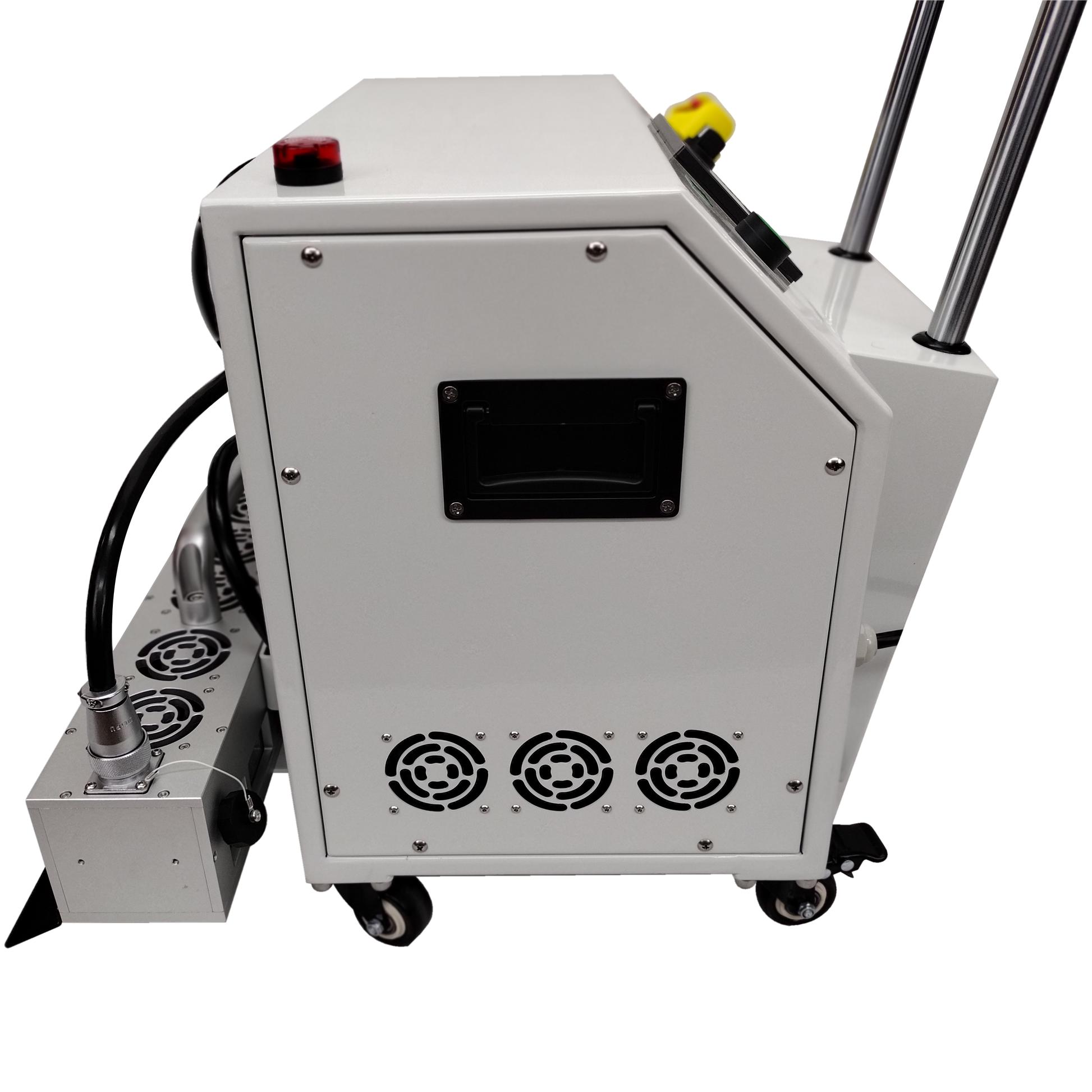

• The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
• UV LED cold light source ensures your material's composition won’t be harmed during the curing process
• Electricity saving & simple operation

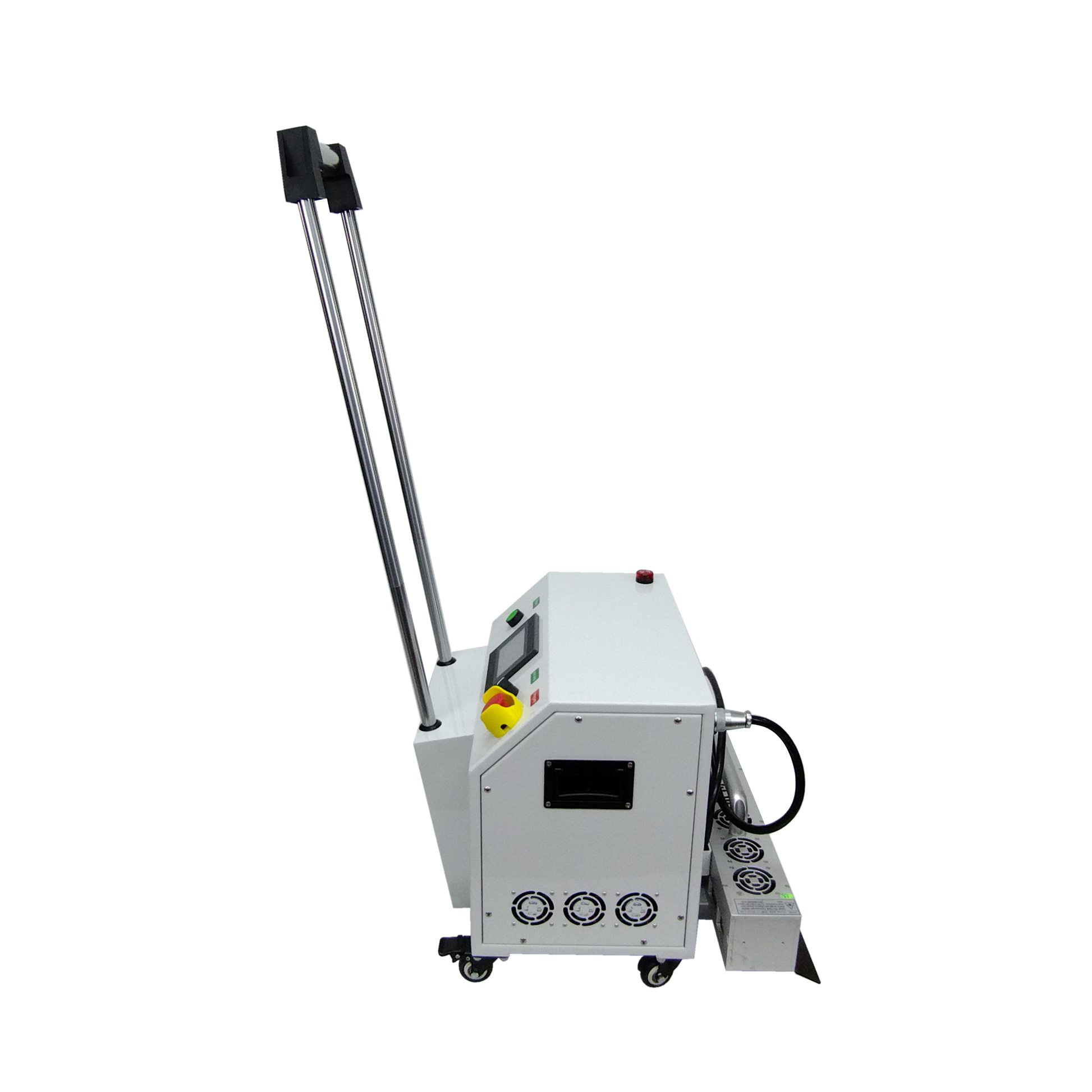

• Integrated wheels make it easy to transport
• High-powered LED System provides higher uniformity
• Uses as much as 80% less energy than conventional Systems equipped with Mercury Lamps
• No preheating time needed, reach maximum light intensity instantly

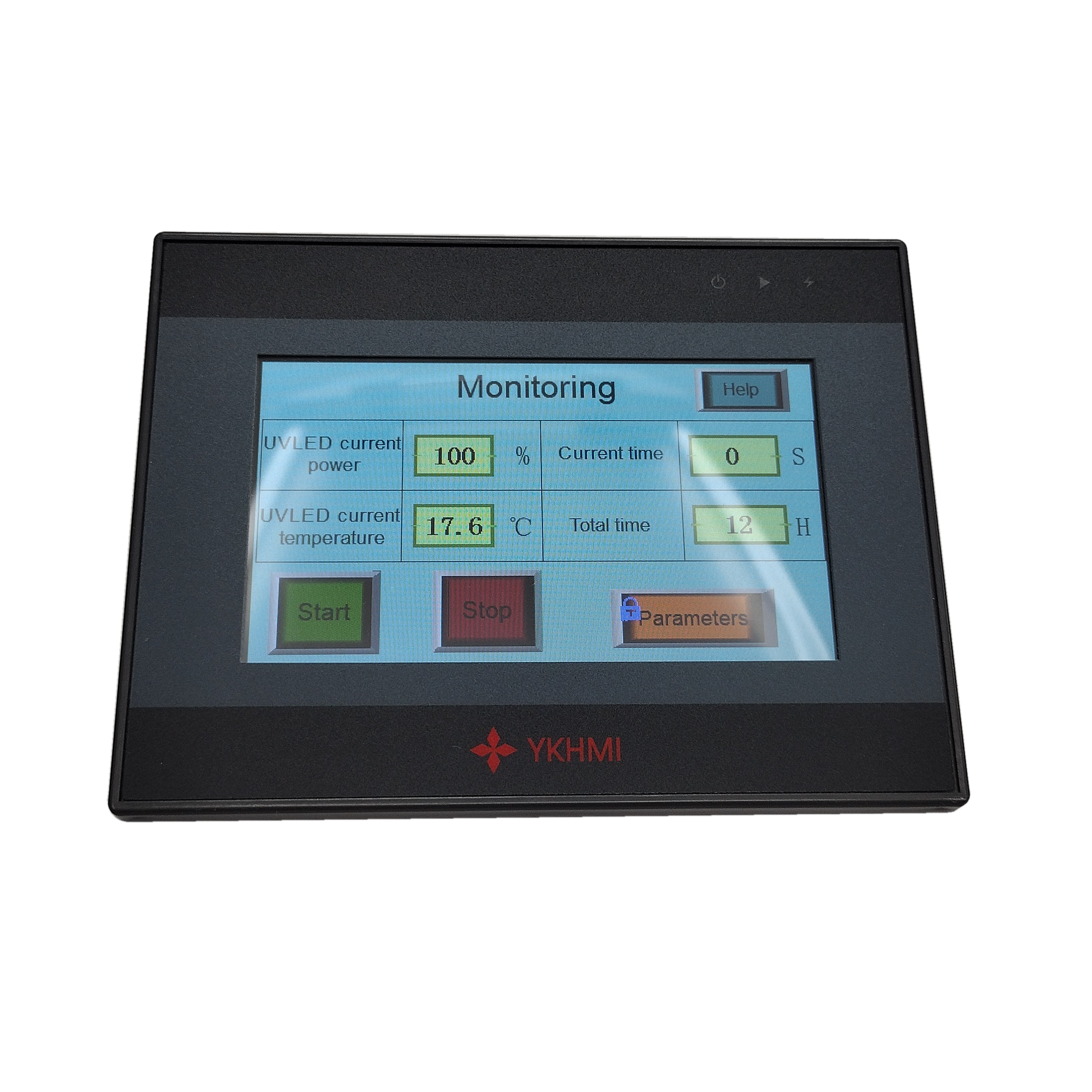

• Multiple control modes make it simple and easy to get the right results

• Eco-friendly, it produces no ozone
• Photoelectric induction allows instant on/off
• Stable output

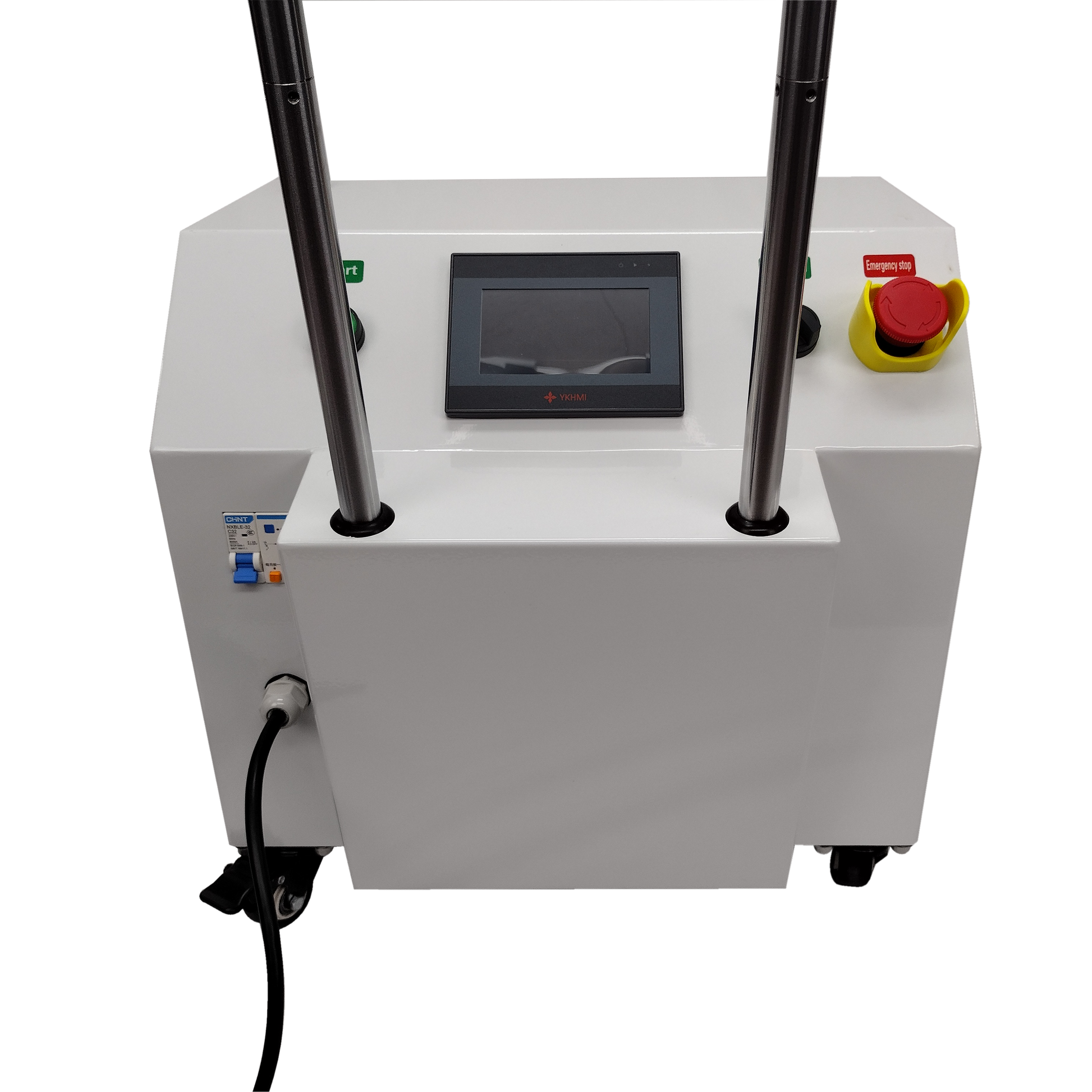

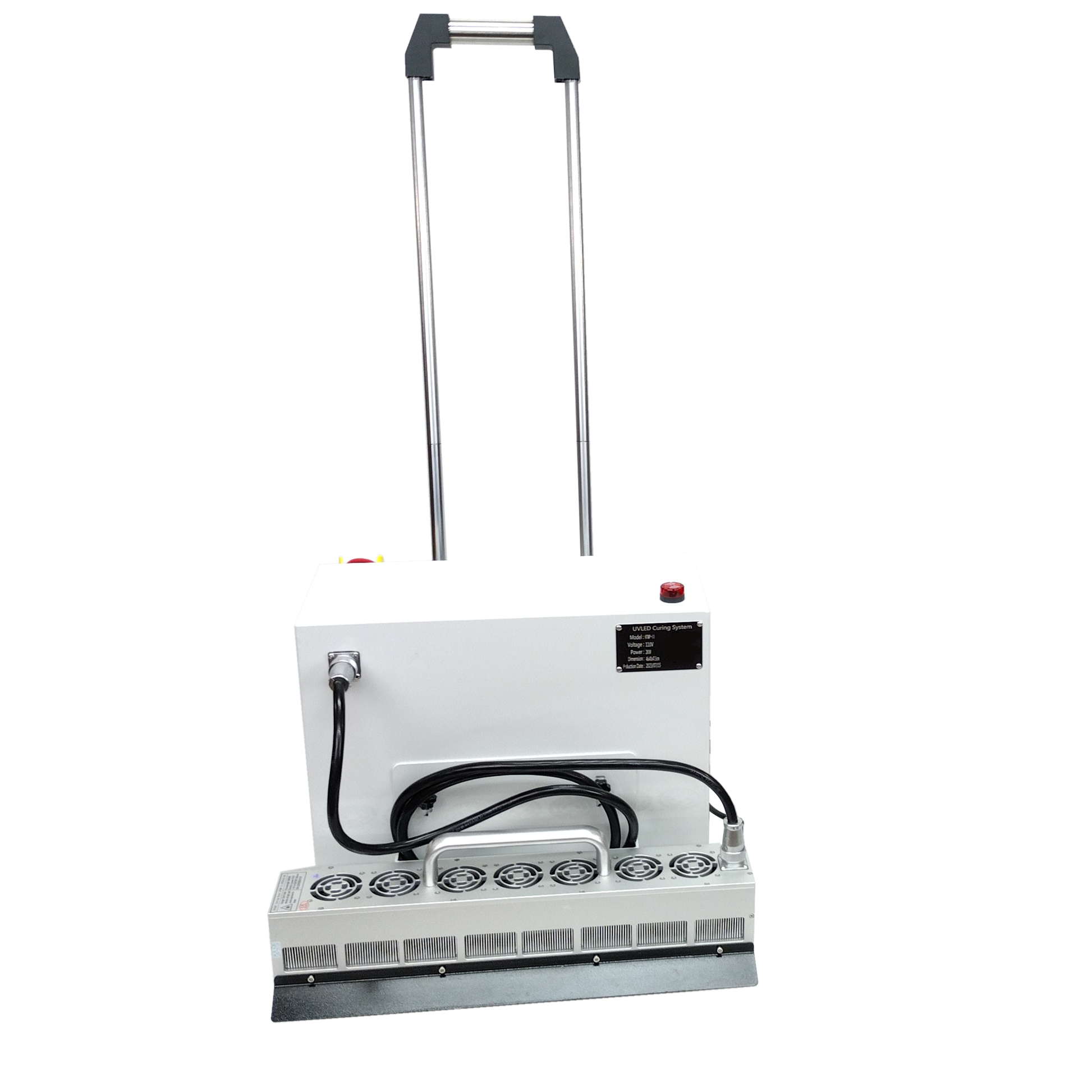

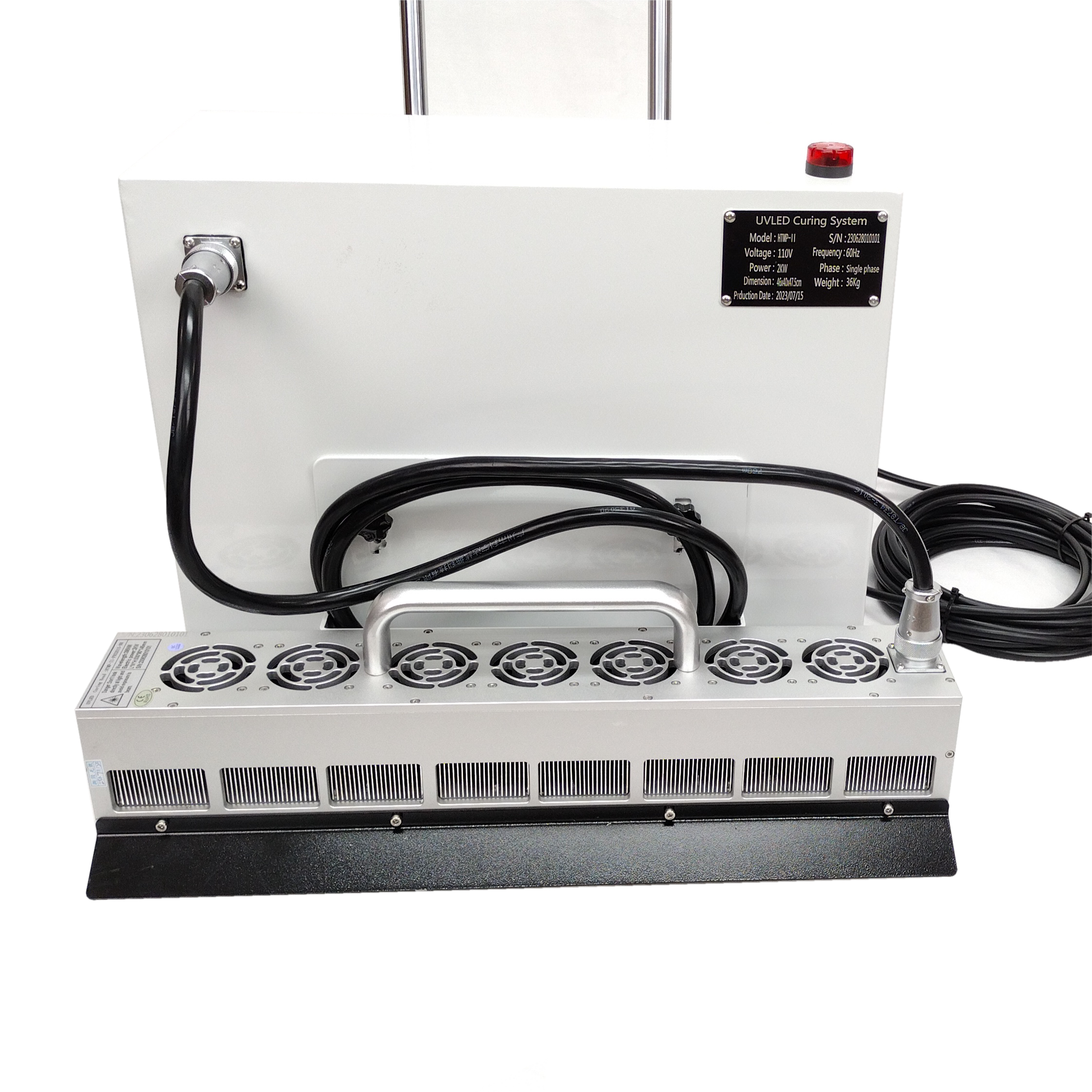

Unique in the market this portable curing system designed for working on the floor surface consists of a controller and a portable high-intensity UV LED Irradiation head. Its forced air cooling dissipates heat, making your system last longer giving it a more cost-effective and useful life. The effective curing area of this system is 520x15mm.

Technical Specifications:

Available Wavelengths: 395nm

If you need other wavelengths (365nm, 385nm, 405nm) we can make it upon request. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.

395nm*:

• Electric power: 1536W
• Optic power: 9800mW/cm²
• Curing area: 520x15mm
• Cooling method: air cooling
• Dimension: L515mm*W300mm*H450mm

We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
