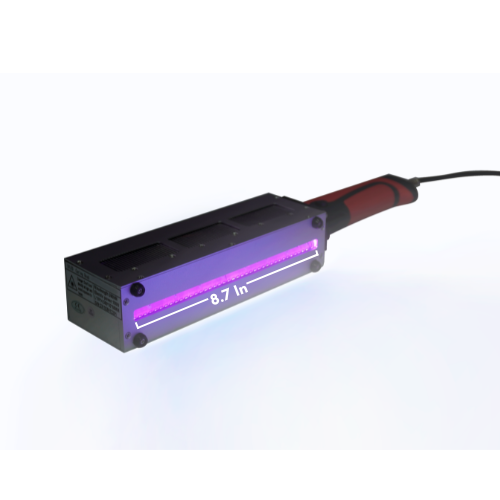

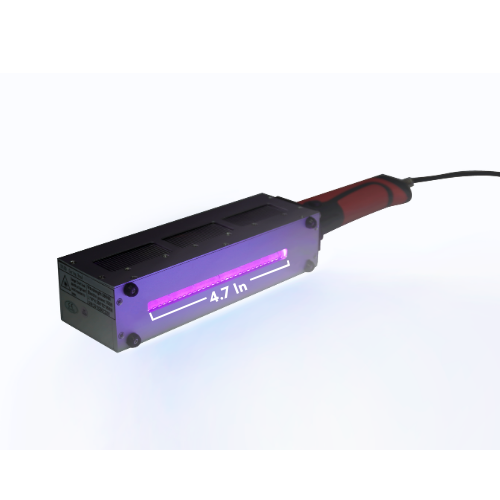

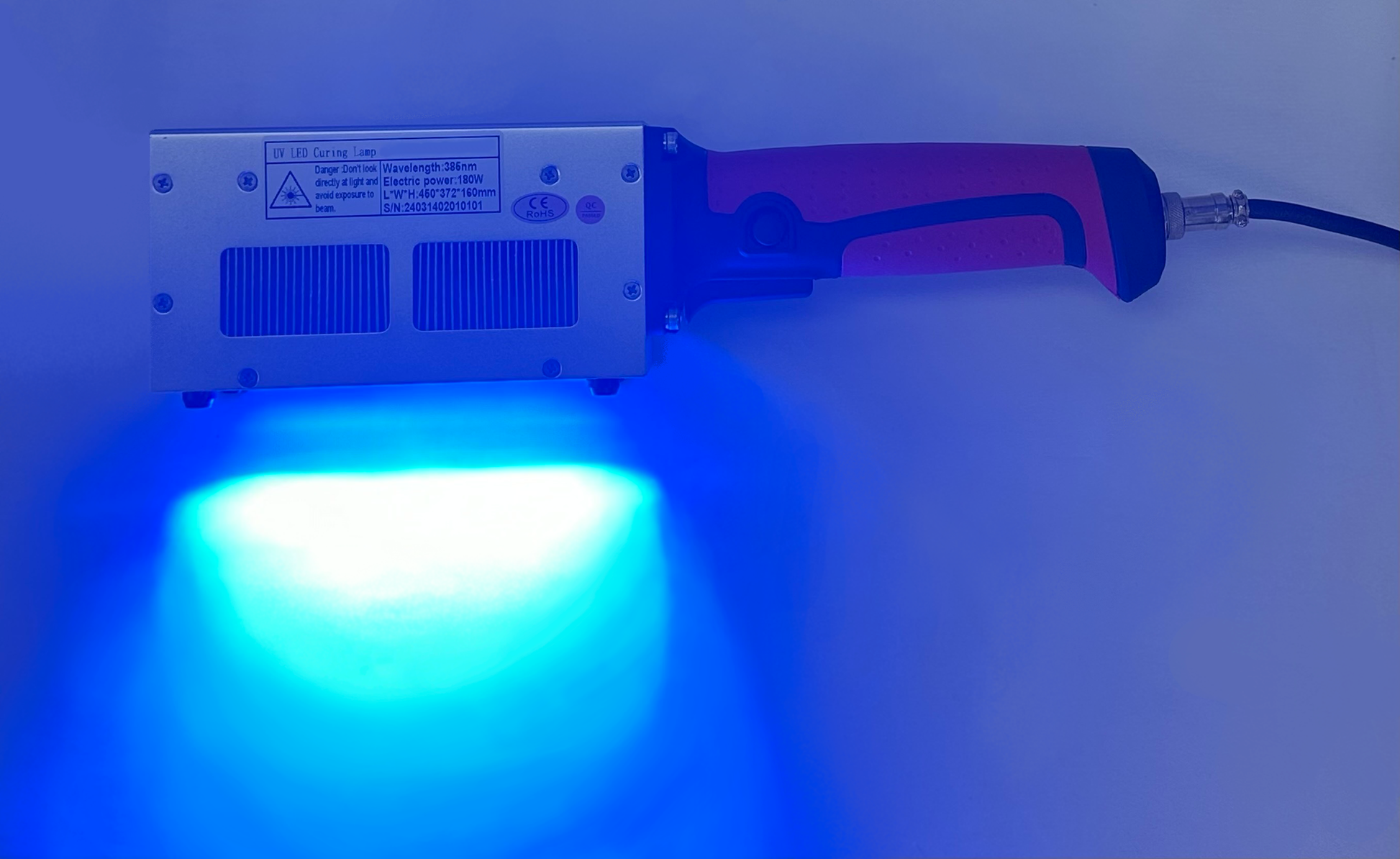

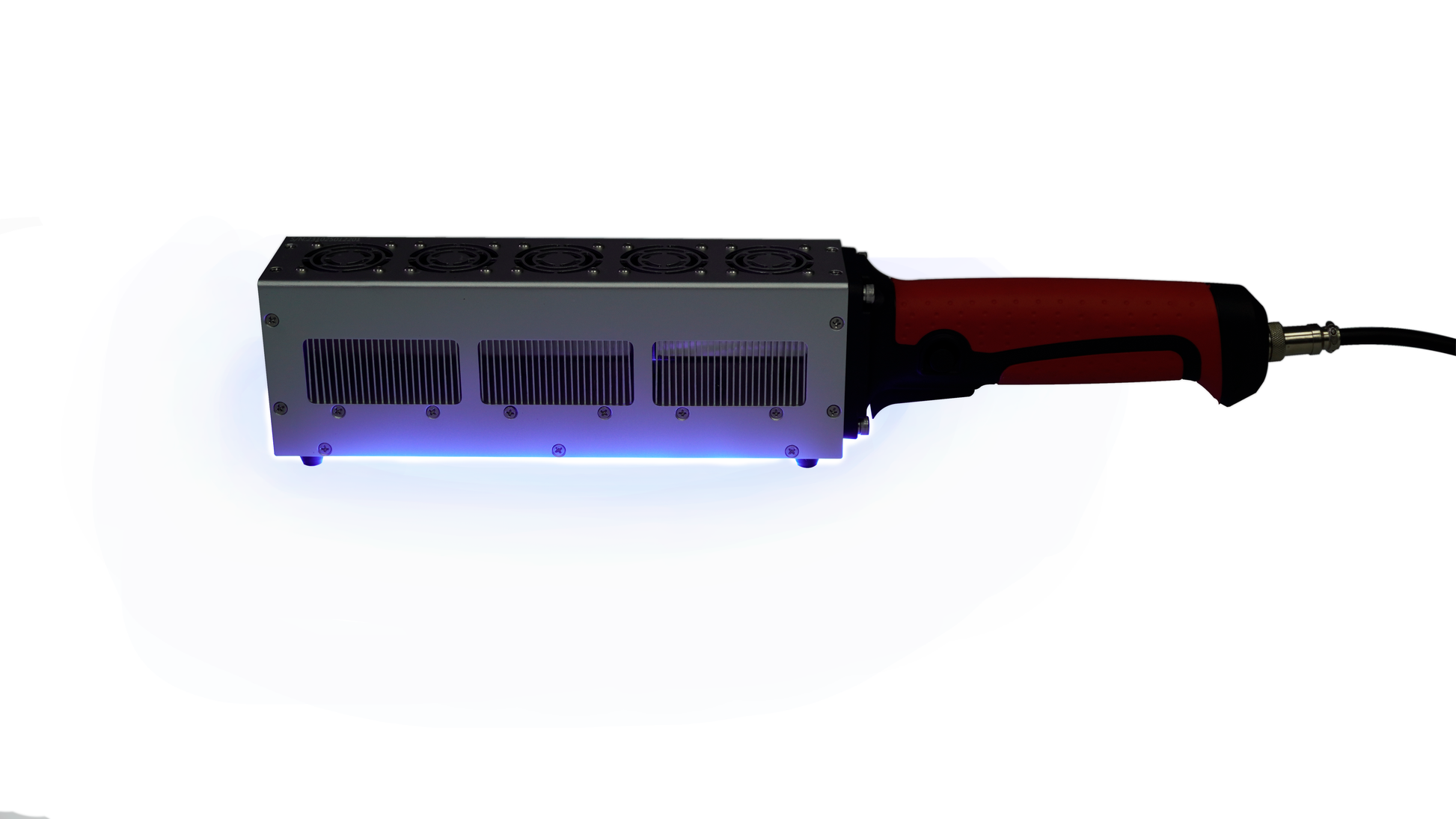

Handheld UV LED Curing System

Our handheld UV LED Curing system puts a high-powered LED curing irradiator in the palm of your hand giving you a more convenient, mobile, and safe curing operation. Available in 365nm, 385nm, 395nm & 405nm.

Features and Benefits:

• User-friendly and intuitive to use
• Level Entry alternative to traditional curing procedures
• Outstanding Eco-Friendly LED Technology replaces Mercury and provides safer and more efficient results
• Cost-effective and energy-saving
• Available wavelengths ensure you get the right System for the work needed
• Adjustable Light Intensity

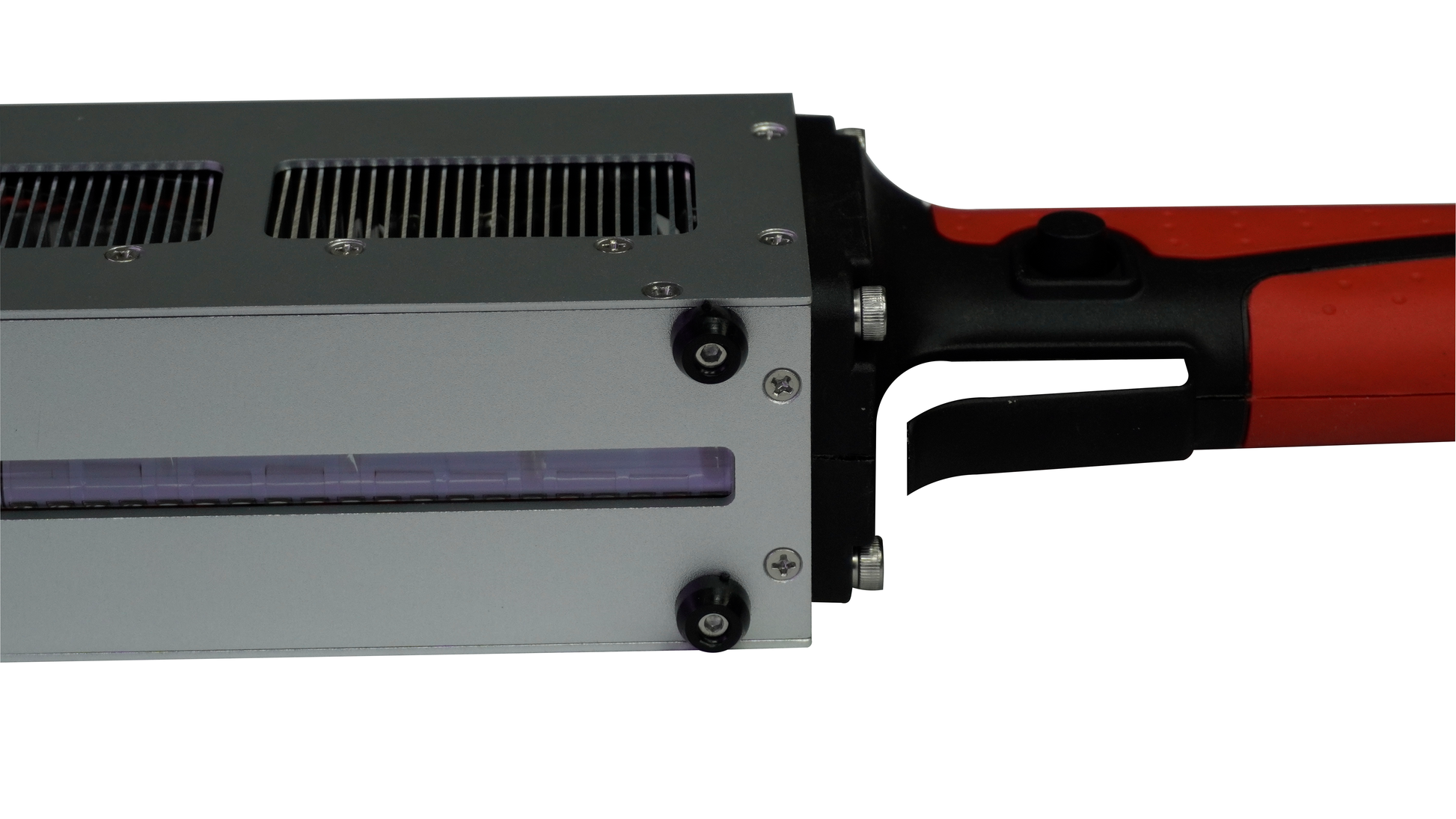

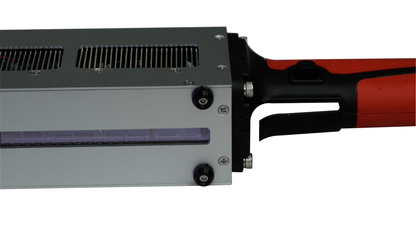

• Forced Air cooling ensures Extended LED Array's useful life
• Versatile application for precision projects

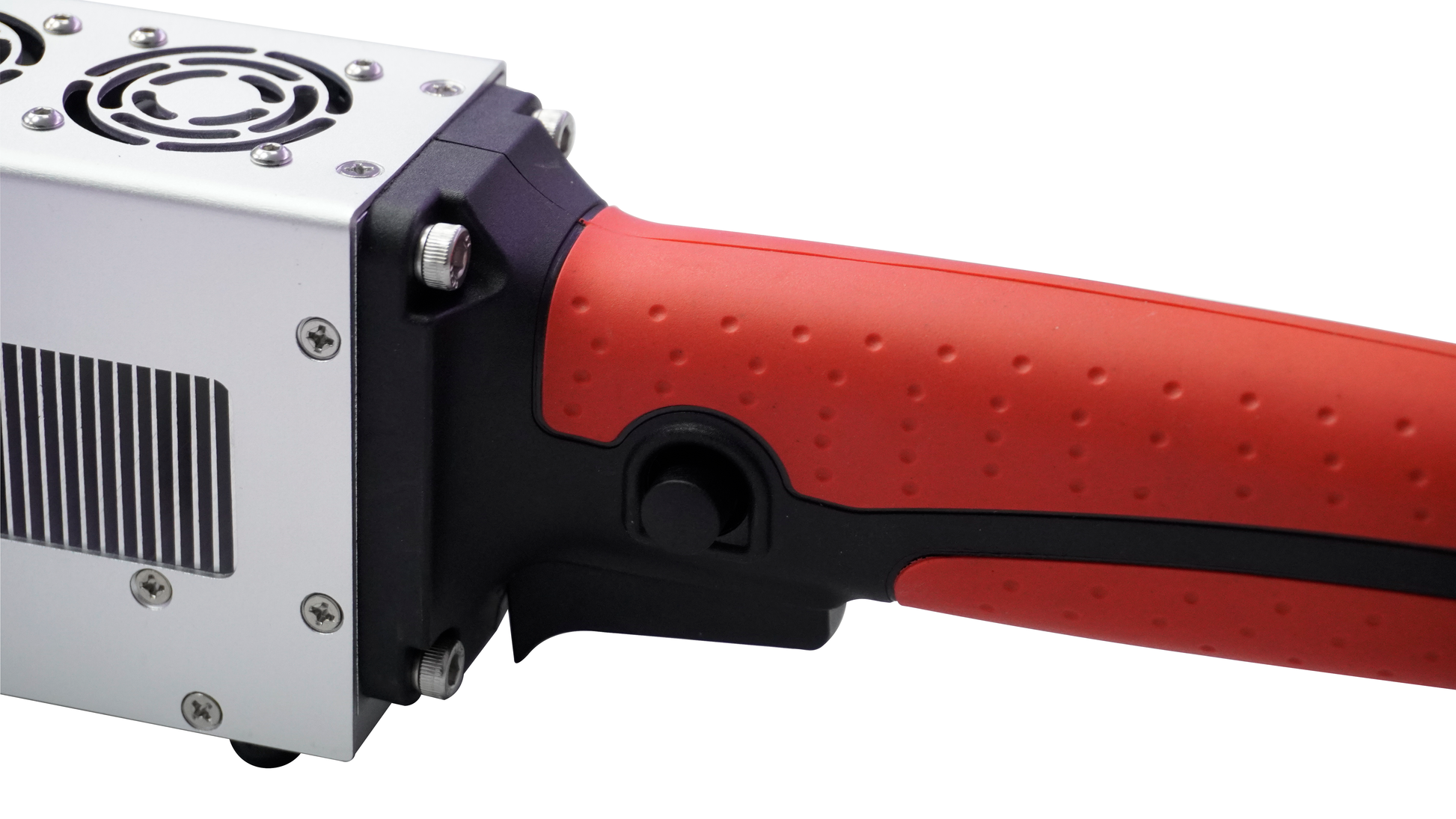

Its ergonomic compact, lightweight, and user-friendly design ensures comfort during extended use, providing optimal control for precise applications. Its eco-friendly powerful UV LED modules effectively replace traditional mercury bulbs able to cure heat-sensitive materials comfortably and reduce power consumption and environmental impact.

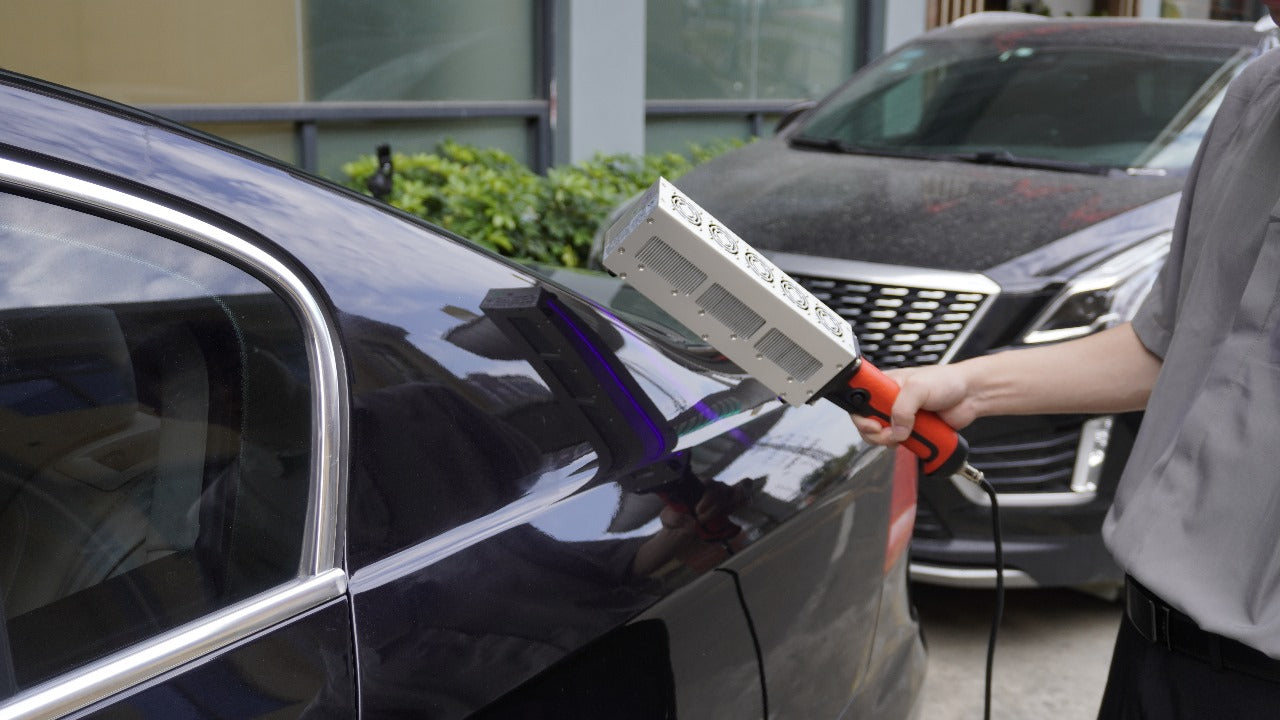

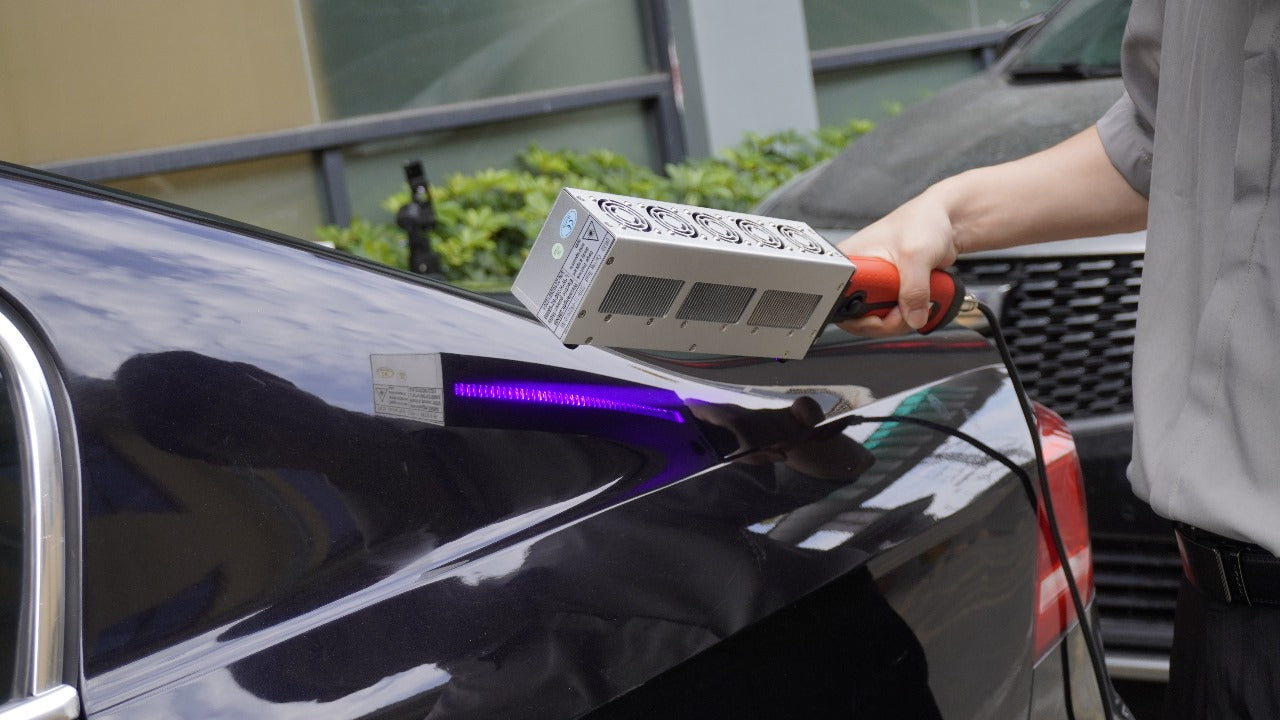

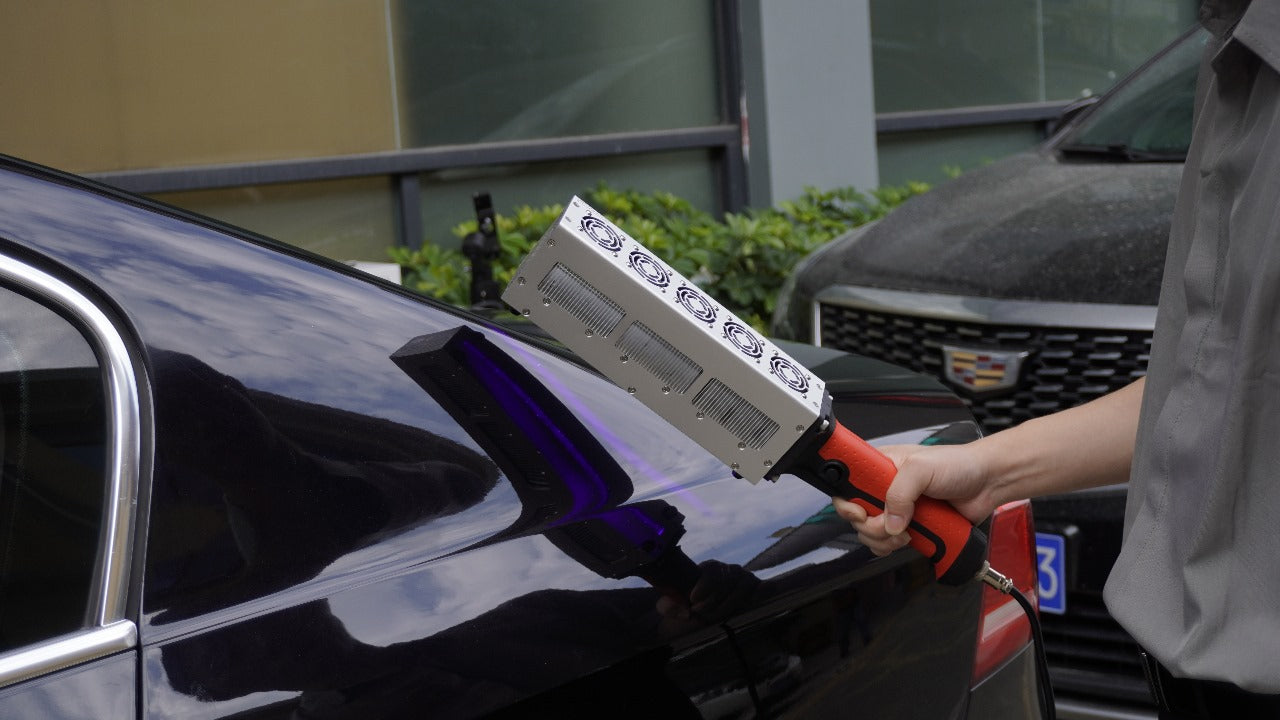

Its efficency outstands traditional curing methods enhancing productivity without sacrificing quality. It is versatile and reliable and caters to electronics, medical device assembly, automotive repairs, and more.

Technical Specifications:

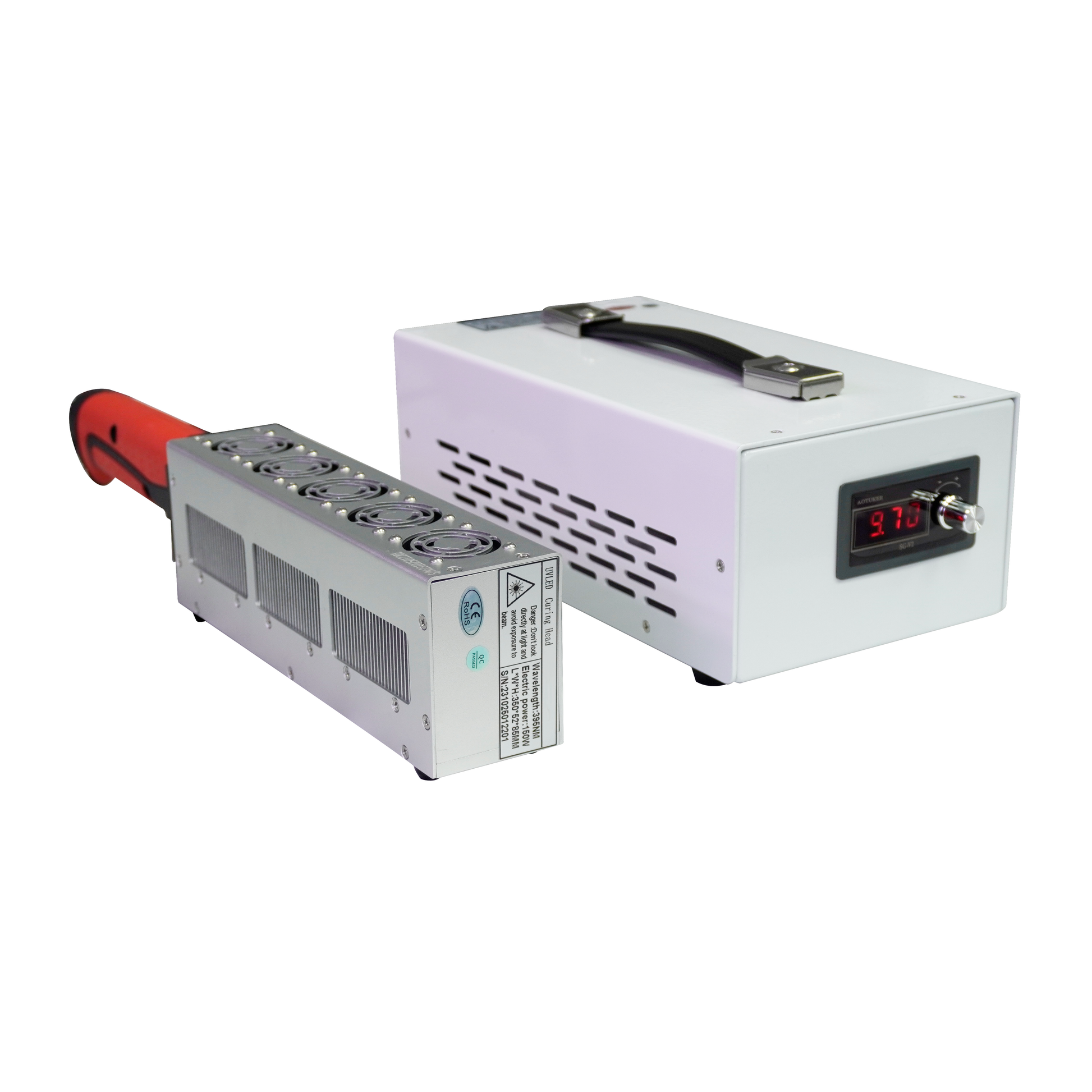

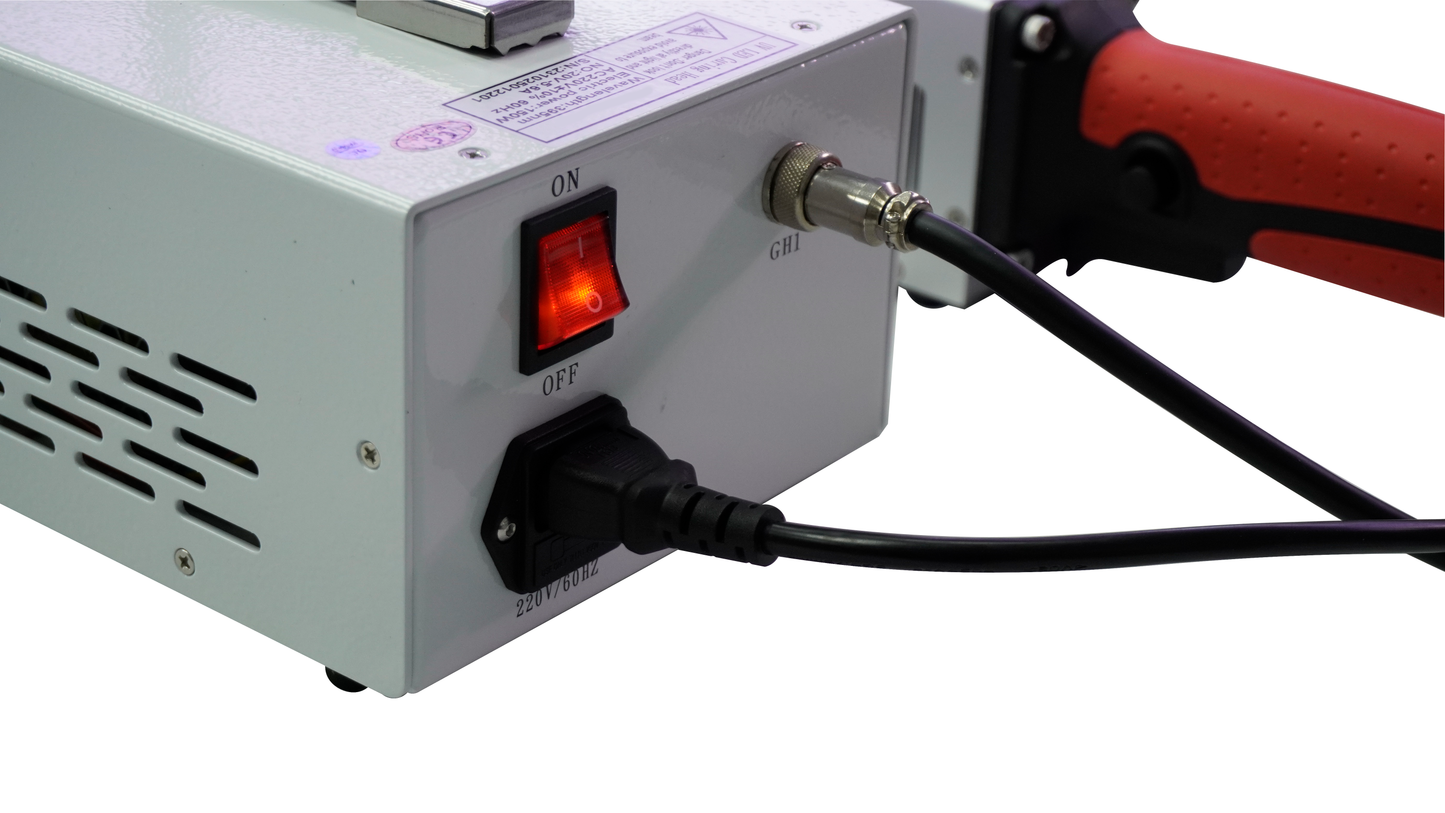

• Controller Dimensions: L320mm x W206mm x H153mm (L12.5In. x W8.1In. x H6In.)

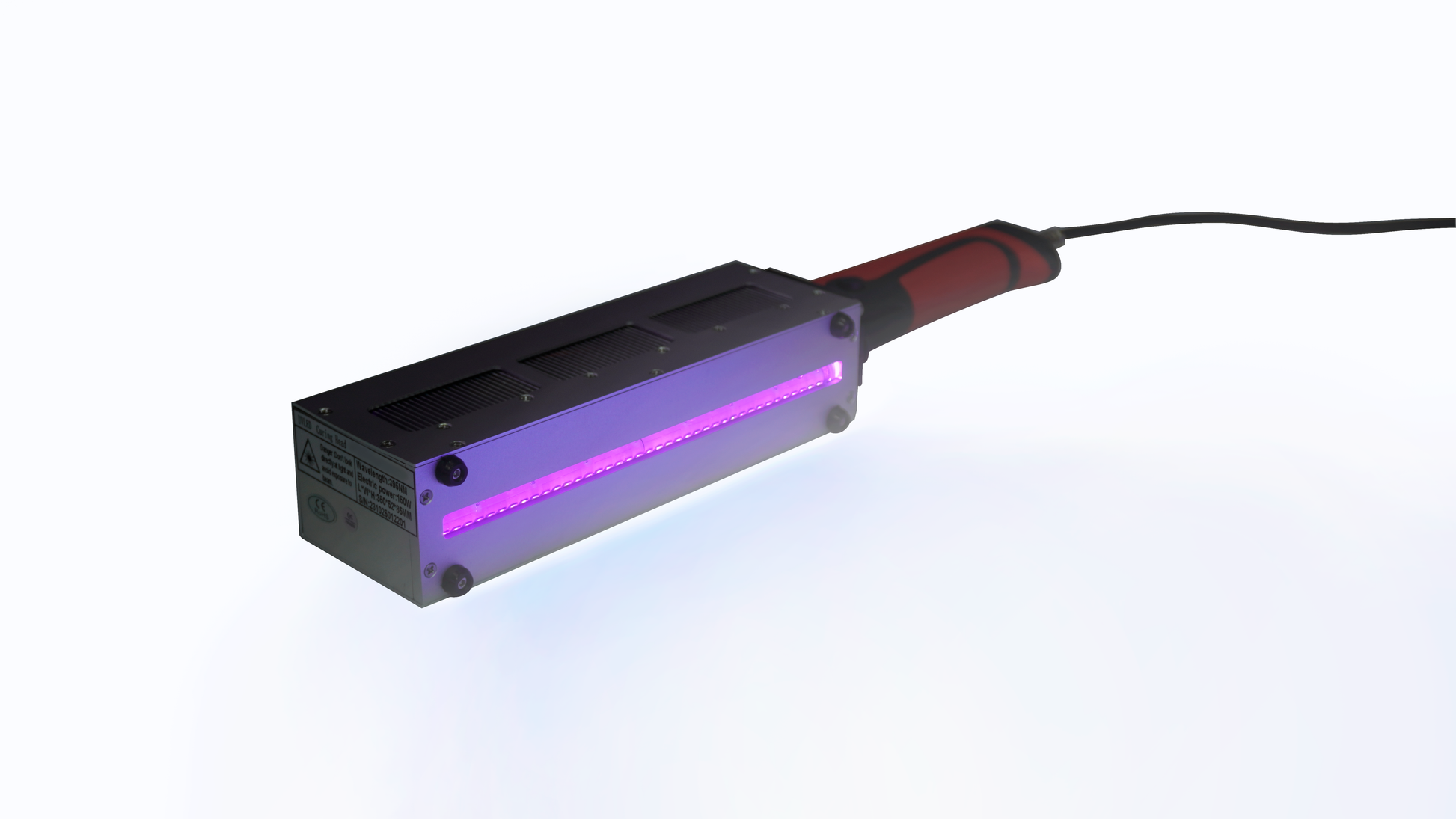

• Lamp Dimensions: L428mm x W59mm x H80mm (L16.8In. x W2.3In. x H3.1In.)
• Curing Area: 220mm x 10mm (8.6In. x 0.3In.)
• Available Wavelengths: 365nm, 385nm, 395nm & 405nm

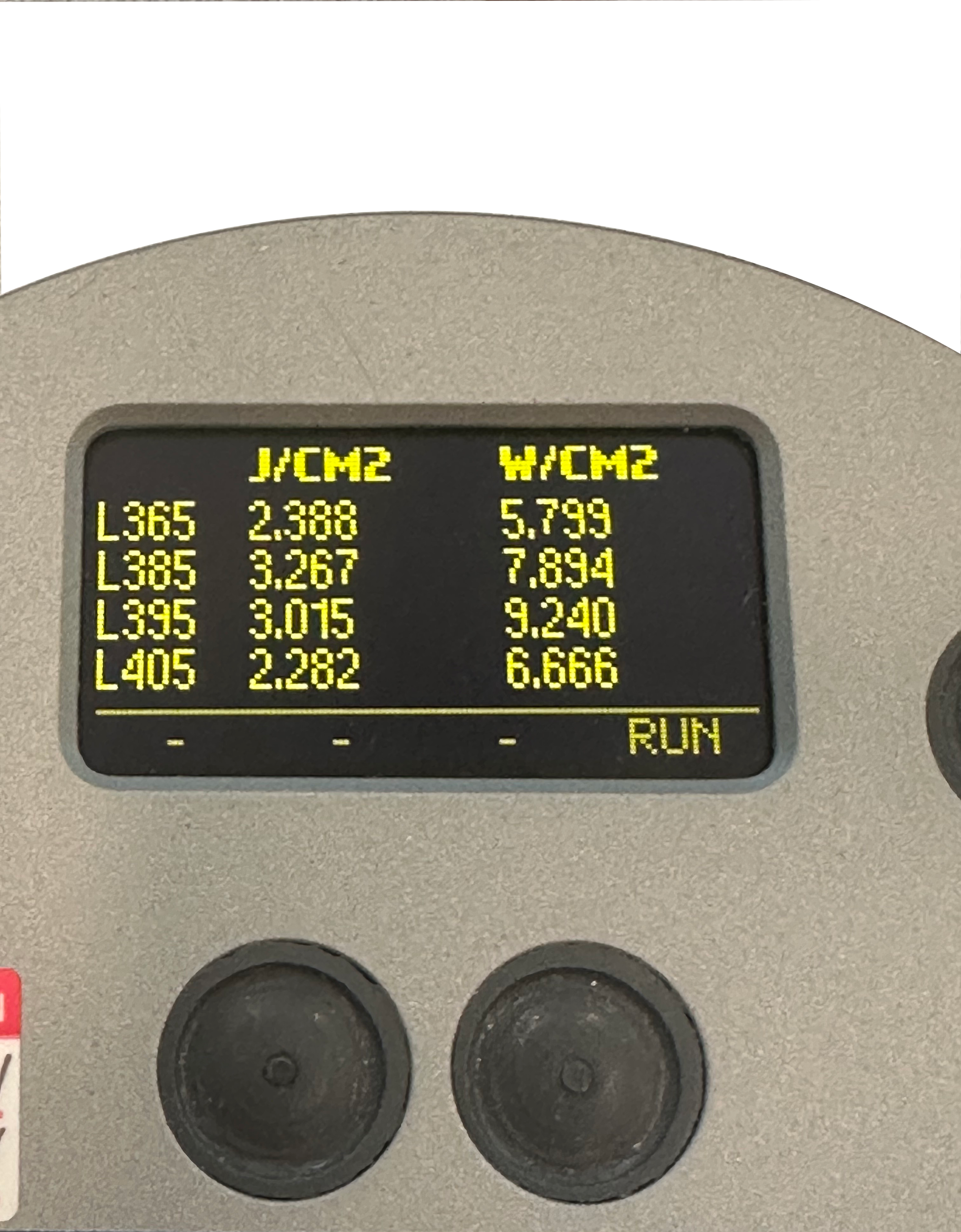

• Power Intensity: 5 W/cm² (20mm Curing Distance)
• LED Lifespan: ≥20000H
• Cooling Type: Air Cooling

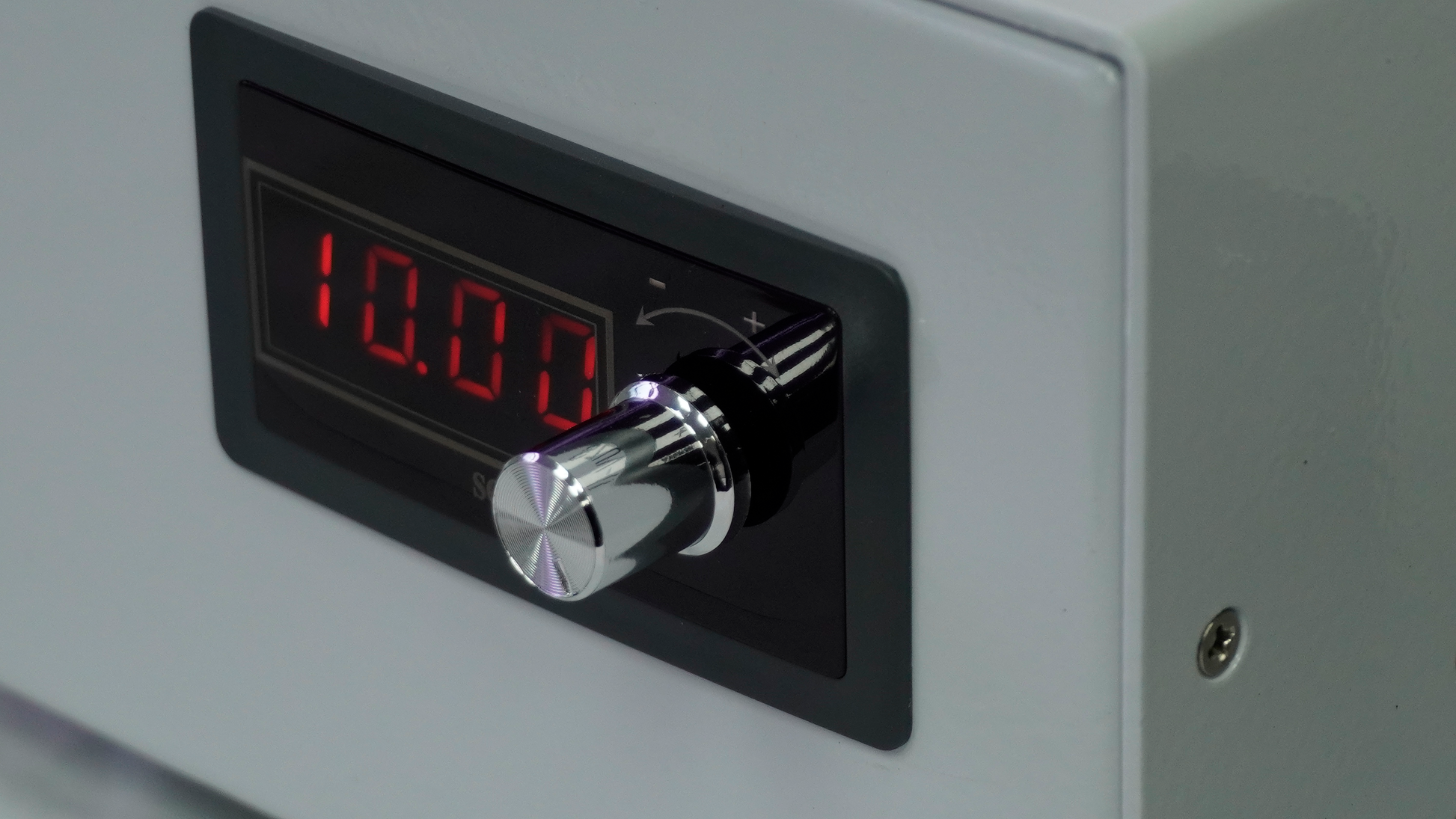

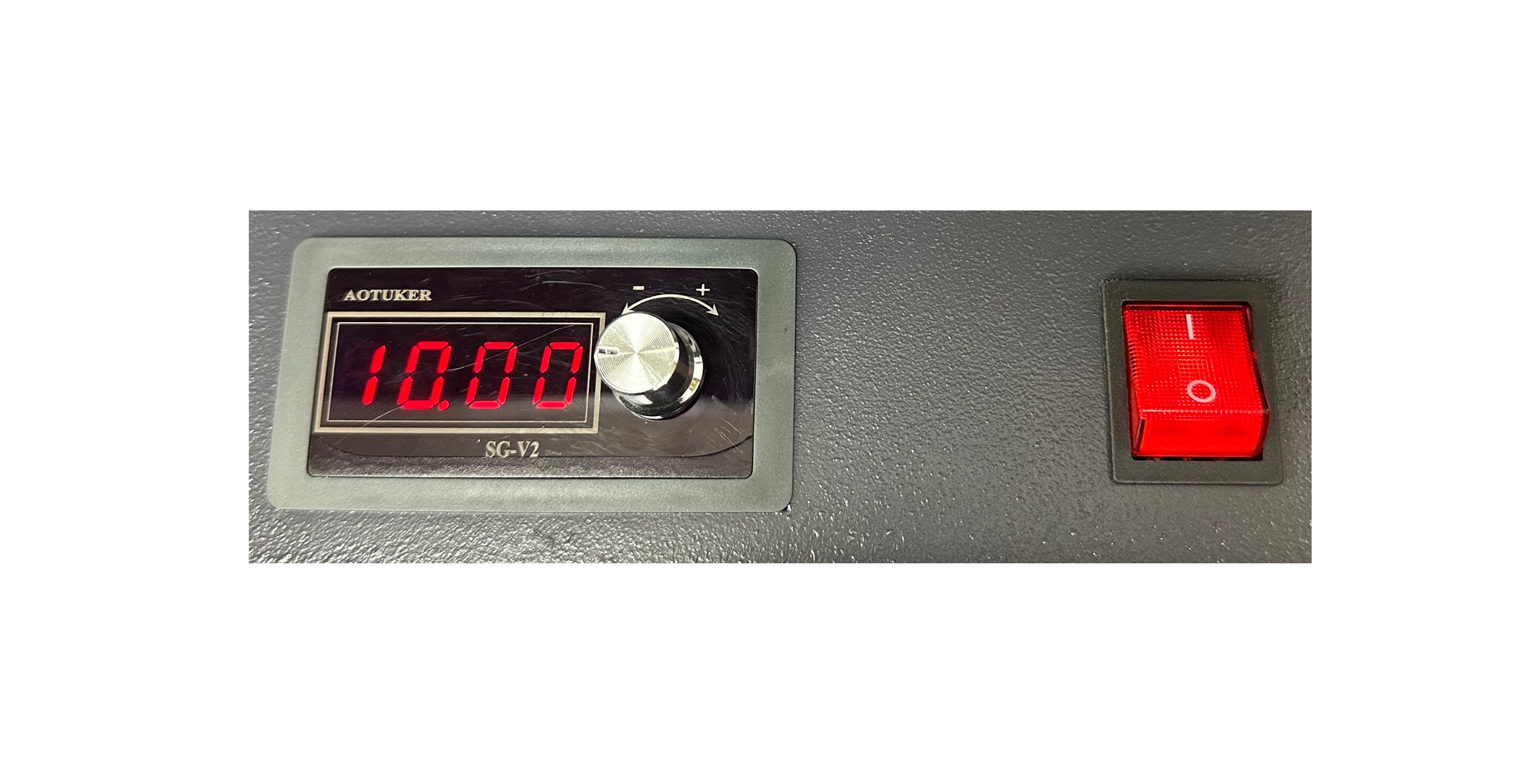

• Power Adjustment: Digital Dimming (1-100%)
• Power Input: 120VAC/60Hz
• Power Consumption: 140W
• Net Weight:

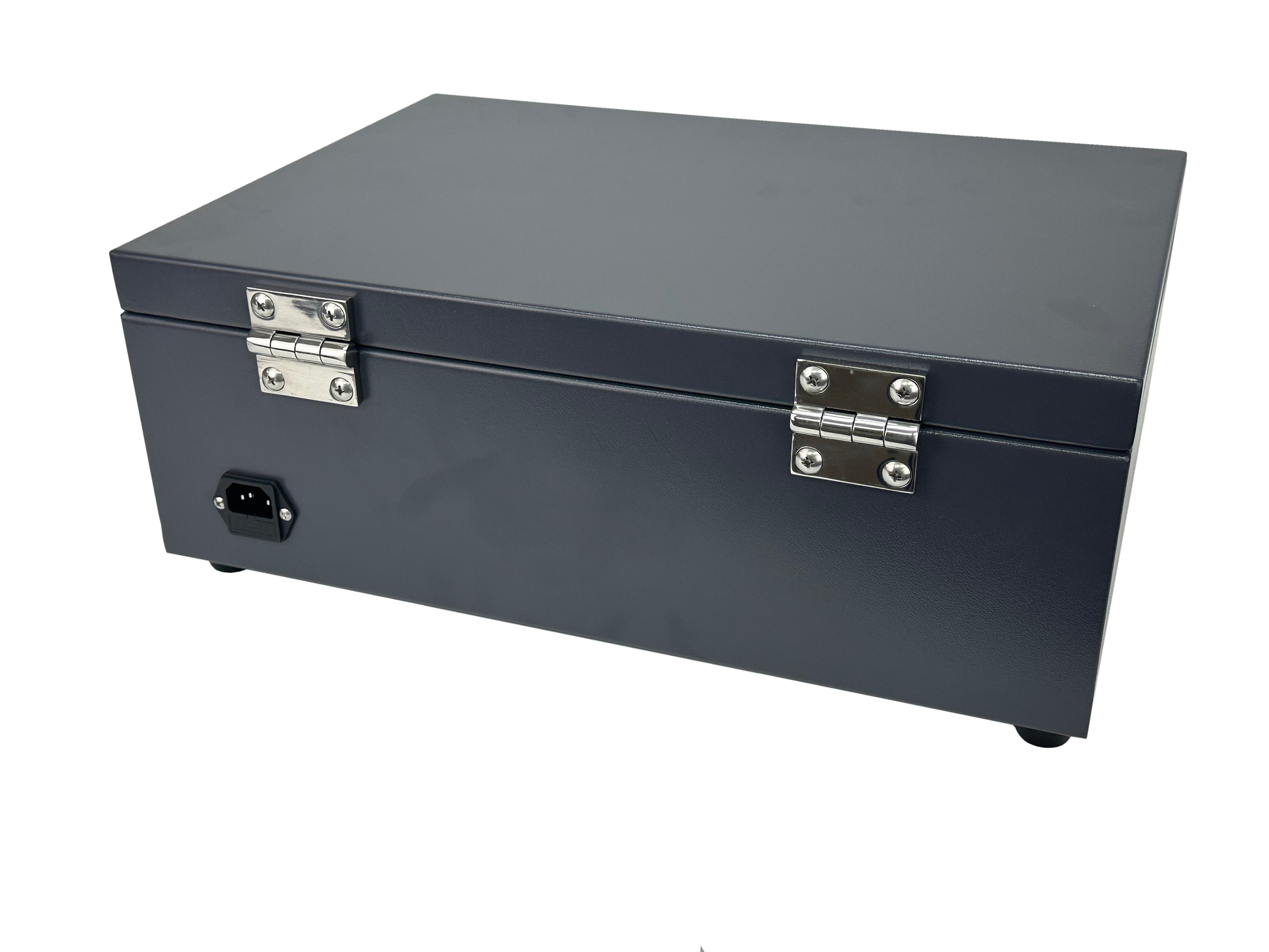

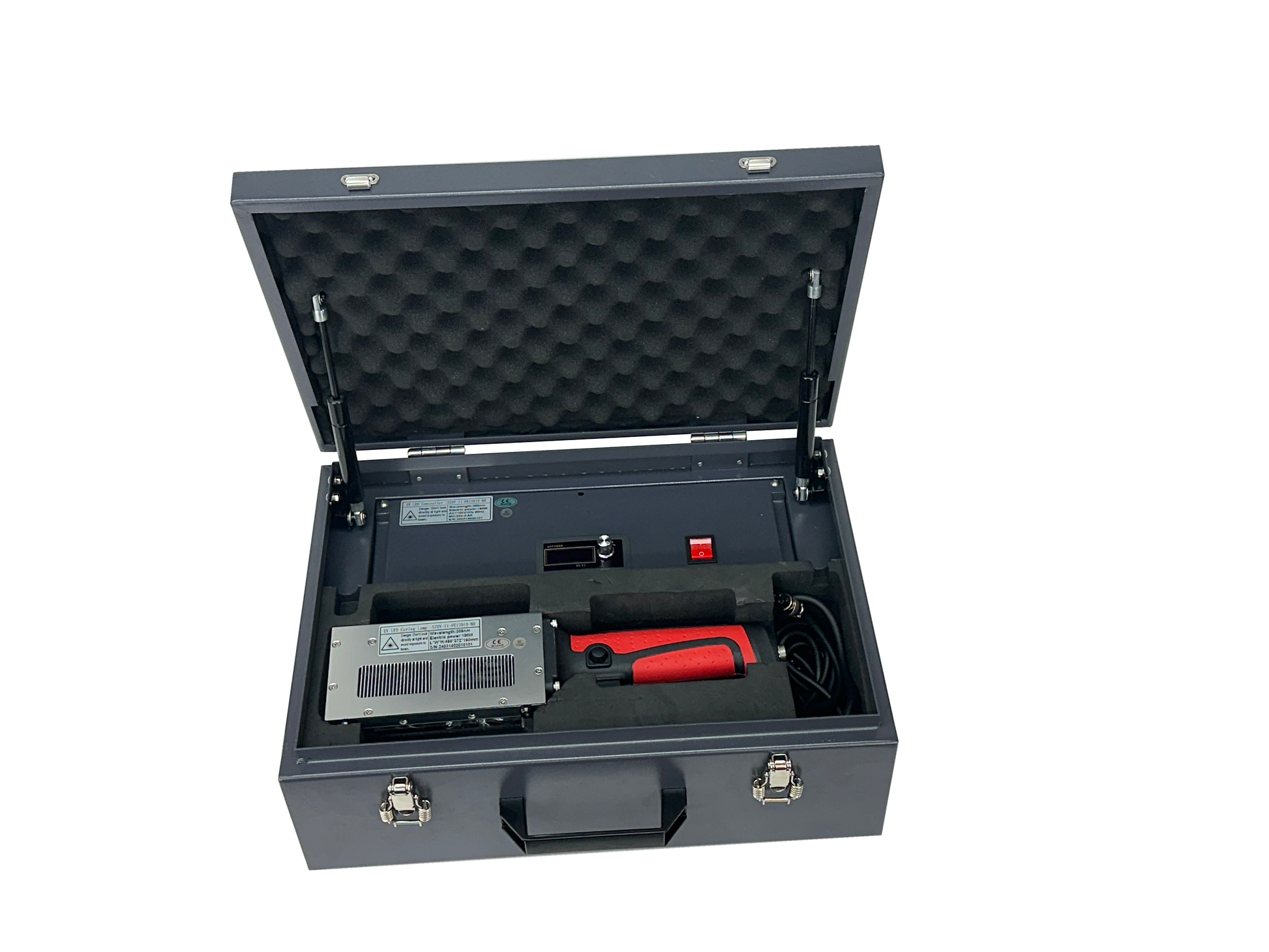

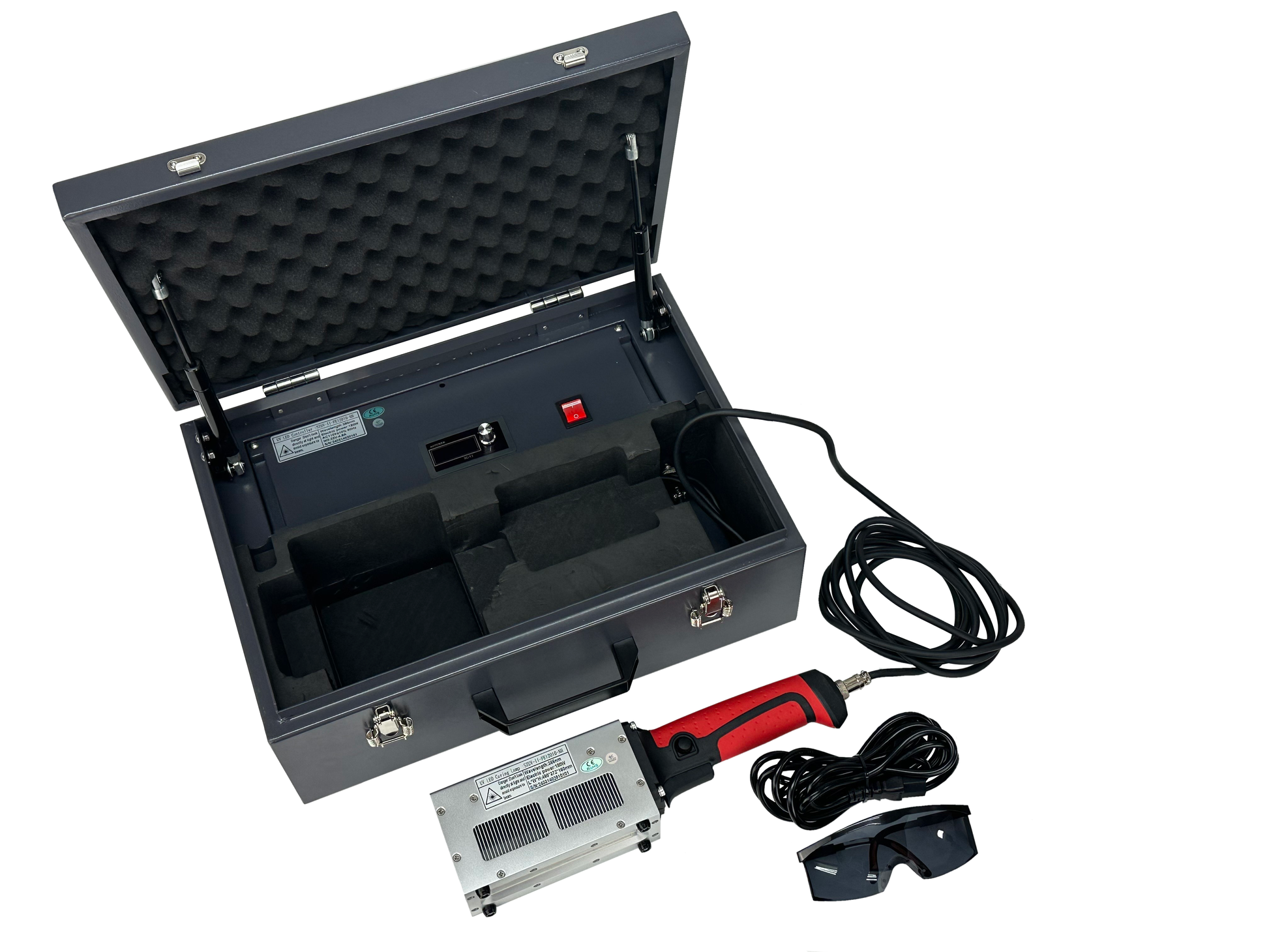

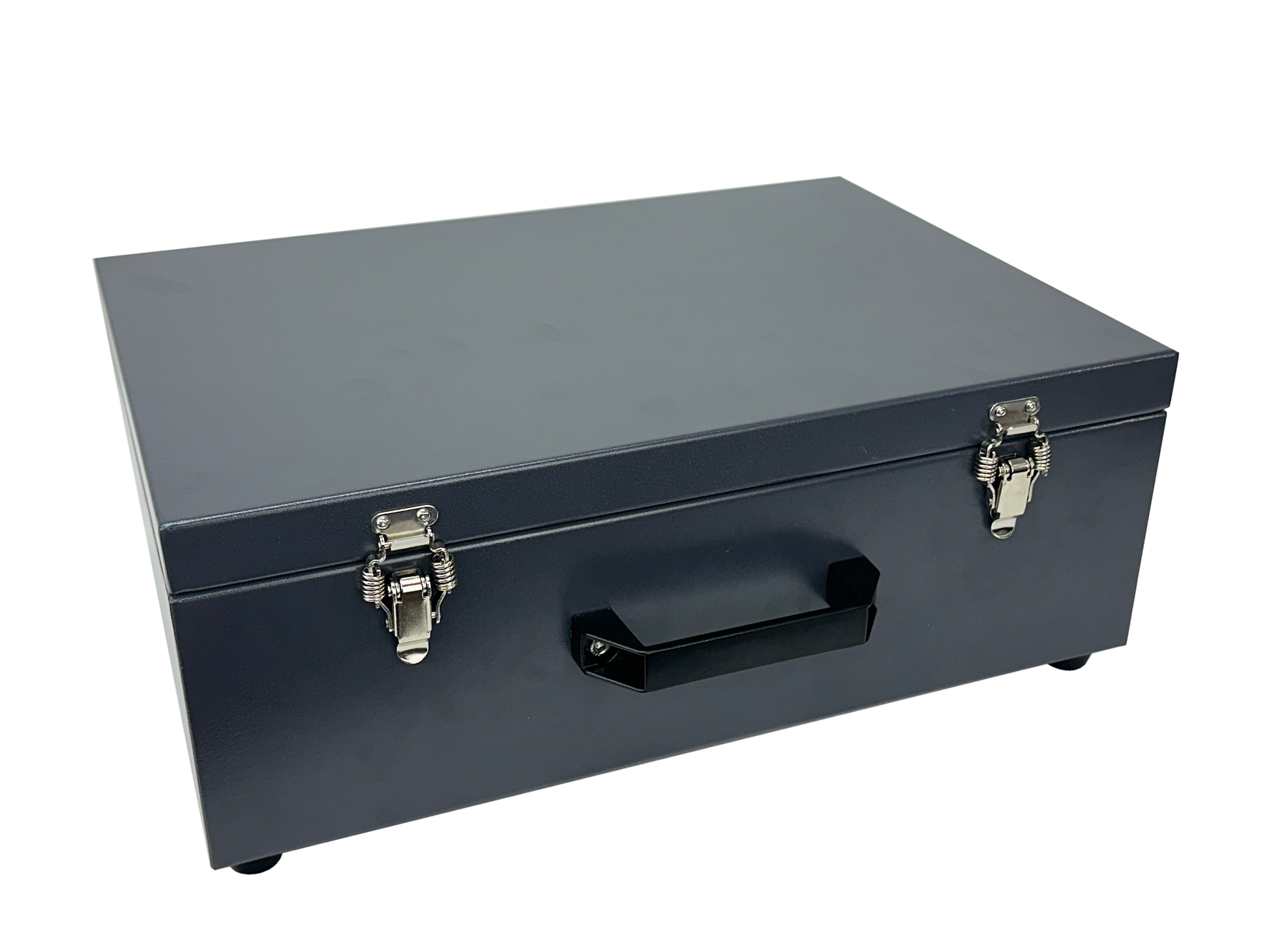

• Entire case and unit: 28 lbs
• Handheld irradiator: 2.0 lbs
• Warranty: One Year

If the in-stock units are not your ideal solution, we can customize these systems to fit your exact needs. Please feel free to call or email us at sales@cureuv.com or 1(800) 977-7292.
